Rev 1.3 Series X11CA Computer Annunciators: X11CA Configuration Software User’s Manual
4. X11CA Software Operation
Hardware Control-© 2003 Ronan Engineering 50

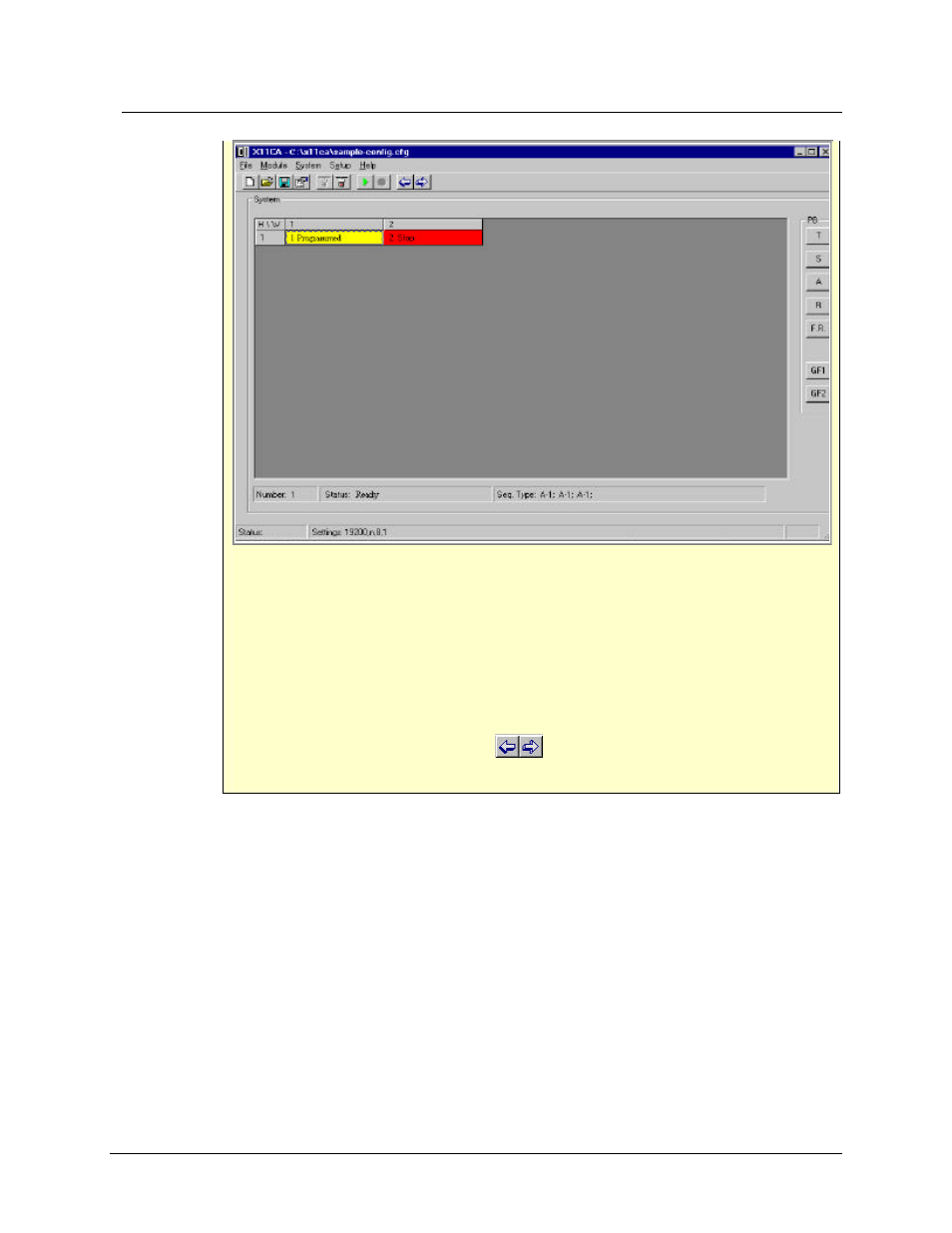

Figure 4-37 Programming the First Module
? The messages, ‘Stop’, ‘Erased’, ‘Programmed,’ and then ‘Stop’, display in the
yellow logical module cell.
? The messages ‘Erasing’, ‘Programming’, ’Verifying’ and then ‘Stop’, display in
the Module Status area near the bottom of the window.
? An ‘NoComm’ message appears in each white inactive logical module cell.
? The Run icon turns green.
? The Program and Receive icons ( ) become active.
9) Program the other modules.
4.9 Retrieving Alarm Module Properties
When you request retrieving, Configuration Software prepares a data packet that
contains a retrieving code and the address of the target physical module, and then
places it on the RS232 serial data line. When the switch on X11CA-IM is set to
PRGM, X11CA-IM passes it directly onto the RS485 line.
The micro-controller on the target physical module picks the data package
addressed to its address and checks the code. If the code is for retrieving, it will
