www.hysecurity.com SDC Inputs & Wiring D0536 Rev. B 4-11
Relay No. Name Description Wire Connection
38
Outbound Special Output N.O. Input. The relay outputs a 250ms pulse and
decrements the tenant counter when the SPECIAL
USER input is activated and IALD, then CLD, are
tripped and released. This activity signals a customer
has exited the facility. R1, R3 through R10SPE-
CIAL USER
39 Set aside for Factory Use HySecurity Testing Only Do not use
e
xtended
r
elaY
m
odule
o
ptIon
The extended relay module provides 8 numbered mechanical relays. R3, RELAY 3 LOGIC through R10, RELAY 10
LOGIC can be accessed through the Installer Menu. Set the number for the relay based on the information found
in Tables 4 or 5. Table 5 is oriented toward revenue control parking lot applications.
Wire communication cable connections between the DUAL GATE ports, at the base of the SDC, and the
extended-mechanical relay module. See illustration”Overview of the Smart DC Controller” on page 4-2.
v
eHICle
d
eteCtor
l
ogIC
In parking or barrier arm applications, where detectors may be used to close the gate, the Smart DC Controller
needs to told what to do with the wired connections. Vehicle detector functions for the Center Loop (reset loop)
are configurable through the “Installer Menu: Table 2.” on page 3-7. They include, CR CB, CP, EB and DL.

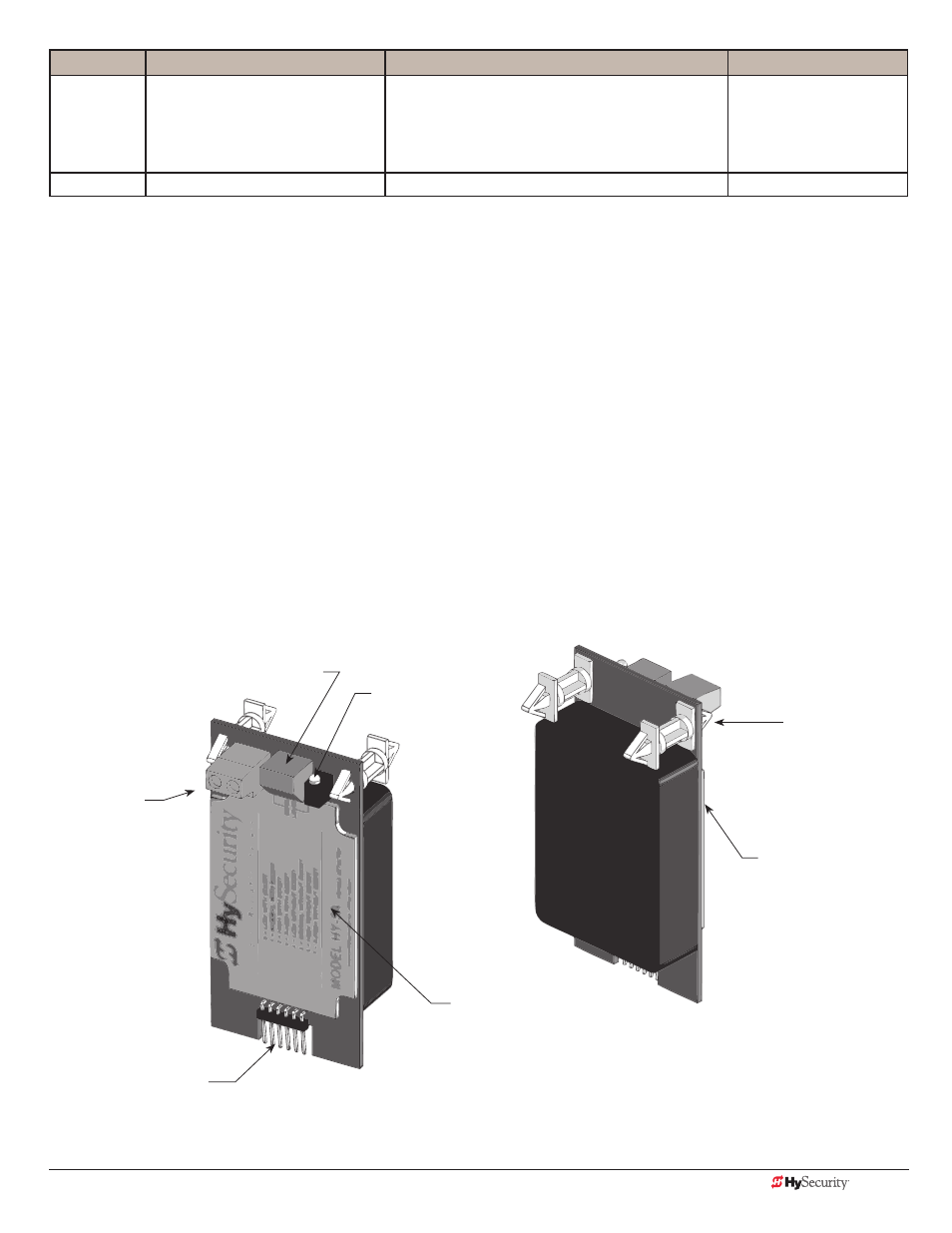

HY-5A
Screw terminals
for loop wire
Adjustable
Vehicle loop
sensitivity dial
Status LED
Standoff Supports
(Inset into the holes
in the Control Box.)
Metal pins fit into a socket on
the Smart DC Controller.
Vehicle loop sensitivity levels
explained on the front label.
HY-5A Vehicle Detector Module
