www.hysecurity.com Display Menu D0536 Rev. B 3-3
r
un
m
ode
The Run Mode displays appear static when the operator is ready and waiting for a run command. When the
display is flashing “GATE OPENING” or “GATE CLOSING”, a command has been received and the barrier
gate is in motion. The command may come from a variety of sources: a card reader, push-button remote, or
recognition of a vehicle passing over a loop detector. In all cases, the operator “runs” the motor when it receives
an operational command.
Three displays indicate the position or status of the barrier gate. The keypad entry used to access the User or
Installer menus, begins at one of these Run Mode displays.
Run Mode Displays
NOTE: To access the User or Installer menus, the motor cannot be engaged and the barrier gate cannot be moving.
v
IeWIng
o
perator
s
tatus
d
IsplaYs
Press the MENU button once and the operator status displays scroll past in two second intervals. Pertinent infor-
mation appears to provide a quick overview of the operator’s status or configurations.
The type of information that may scroll across the display includes: software version, operator type (OT), gate
handing (LEFT HAND or RIGHT HAND), buss voltage, and life cycle counter.

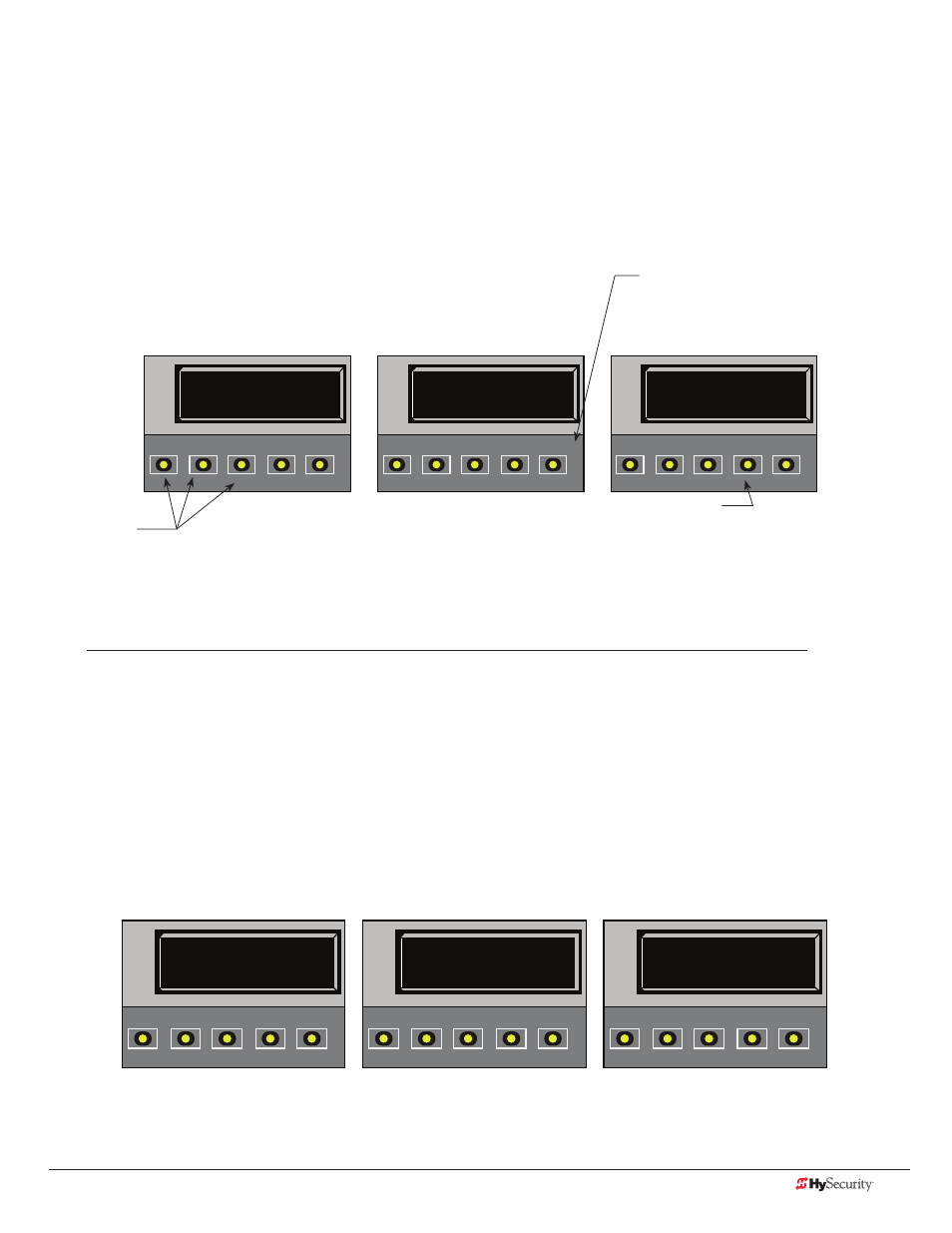

Example of Operator Status Displays
HYSECURITY
GATE STOPPED
OPEN CLOSE STOP MENU RESET
PREV NEXT SELECT
HYSECURITY
GATE OPEN
OPEN CLOSE STOP MENU RESET
PREV NEXT SELECT
HYSECURITY
GATE CLOSED
OPEN CLOSE STOP MENU RESET
PREV NEXT SELECT
Pressing Open,
Close, or Stop causes
the gate to perform
the command.
Pressing Menu scrolls through operator status
displays and accesses the User Menu.
Note: Pressing the MENU button twice, bypasses
the operator status displays.
Pressing Reset clears alerts or faults and
returns to Run Mode.
NOTE: Press Reset at any Run mode status
display to view the software version. For
example: h5.33
HYSECURITY
V5.32
OPEN CLOSE STOP MENU RESET
PREV NEXT SELECT
LEFT HAND
OPEN CLOSE STOP MENU RESET
PREV NEXT SELECT
BULK
CHARGER STATE
OPEN CLOSE STOP MENU RESET
PREV NEXT SELECT
