www.hysecurity.com Display Menu D0536 Rev. B 3-1
Display & Menu Options
Highly sophisticated software provides three different modes of operation: run, program, and fault.
How to navigate using the Smart DC Controller (SDC) keypad, interpret status display codes and program the
operator is found in this section.
I
nItIal
s
etup
Once you have completed the installation, attached accessories and turned
power ON, you’re ready to program the operator. Two different approaches
exist:

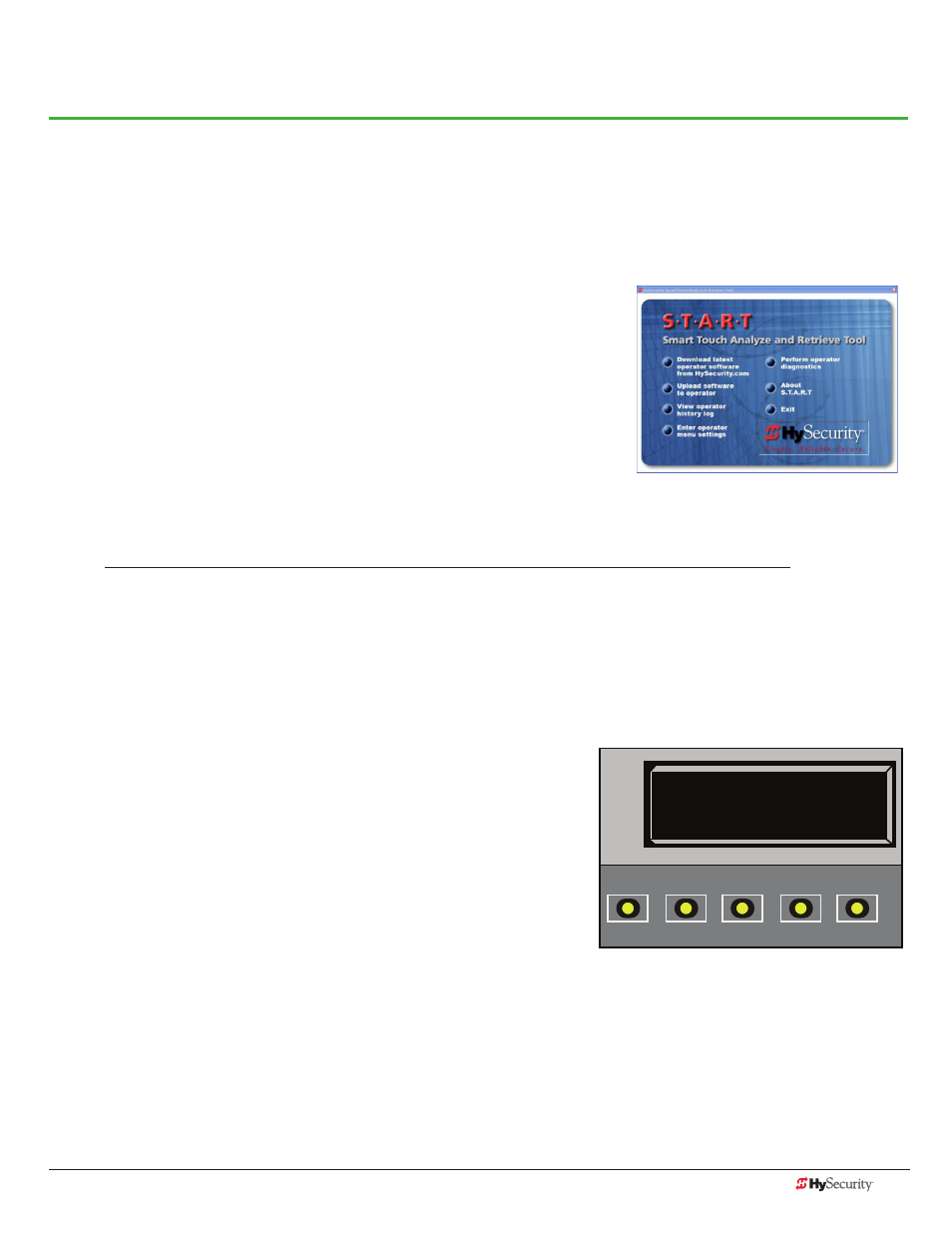

• Connect a laptop computer to the serial (RS-232 or USB) port, check
for the most current software version and then set the operator menu
configurations via the START software. See “Smart Touch Analyze and
Retrieve Tool (S.T.A.R.T.)” on page 6-1.
NOTE: Use a laptop computer at your place of business to conveniently download
the free START software and most current software version from www.hysecurity.
com before heading out into the field. This makes
it easy to adjust settings using a laptop.
• Manually navigate through the User and Installer Menus using the SDC keypad. The instructions for performing this
second option are provided in this section.
u
nderstandIng tHe
d
IsplaY and
k
eYpad
The SDC display and keypad provide access to the operator’s sophisticated software and functionality.
Three different operational modes exist:
• Run Mode - gate is operational, awaiting commands.
• Menu Mode - motor disengages and operator commands are
ignored. Data entry, menu navigation, and menu selection can
be accomplished via the keypad or through a S.T.A.R.T. software
connection using the RS-232 or USB port.
• Fault Mode - alerts, faults, or errors appear on the display. Some
errors or faults can be reset with the Reset button while more
serious faults require additional troubleshooting. Faults indicate
a need for diagnosis and resolution. Refer to “Troubleshooting”.
The keypad lets you navigate, change, or clear the information in the display menus. The singular use of these
keys is dependent on the operator mode.
The buttons with text above and below have two functions. Use these buttons to enter operating commands or
navigate through the User and Installer Menus.
HYSECURITY
GATE STOPPED
OPEN CLOSE STOP MENU RESET
PREV NEXT SELECT
Display in Run Mode:
Stop, Open, or Close
