esettIng
o
pen and
C
lose
l
ImIts
Resetting the open and close limits is easily accomplished by accessing the Installer Menu.
Access to the Installer Menu is through the User Menu. See the flowchart below.
Learn Open Limits
1. Press and hold the OPEN button while the degrees increase toward 90 and the barrier arm reaches the
desired full open position.
2. Release the OPEN button as the arm nears full open. The motor slows as do the numbered increments on
the display. Note that if you go too far, you can press CLOSE to reverse direction.
3. Press STOP twice to preserve the open stop location. The buzzer chirps twice and the full open stop is
retained in memory.
Learn Close Limits
1. Press and hold the CLOSE button while the degrees increase toward - 90 and the barrier arm reaches the
desired full open position.
2. Release the CLOSE button as the arm nears full open. The motor slows as do the numbered increments
on the display. Note that if you go too far, you can press OPEN to reverse direction.
3. Press STOP twice to preserve the open stop location. The buzzer chirps twice and the full open stop is
retained in memory.
LEARN OPEN
DEGS: +XXX.X
OPEN CLOSE STOP MENU RESET
PREV NEXT SELECT
LEARN CLOSE
DEGS: - XXX.X
OPEN CLOSE STOP MENU RESET
PREV NEXT SELECT

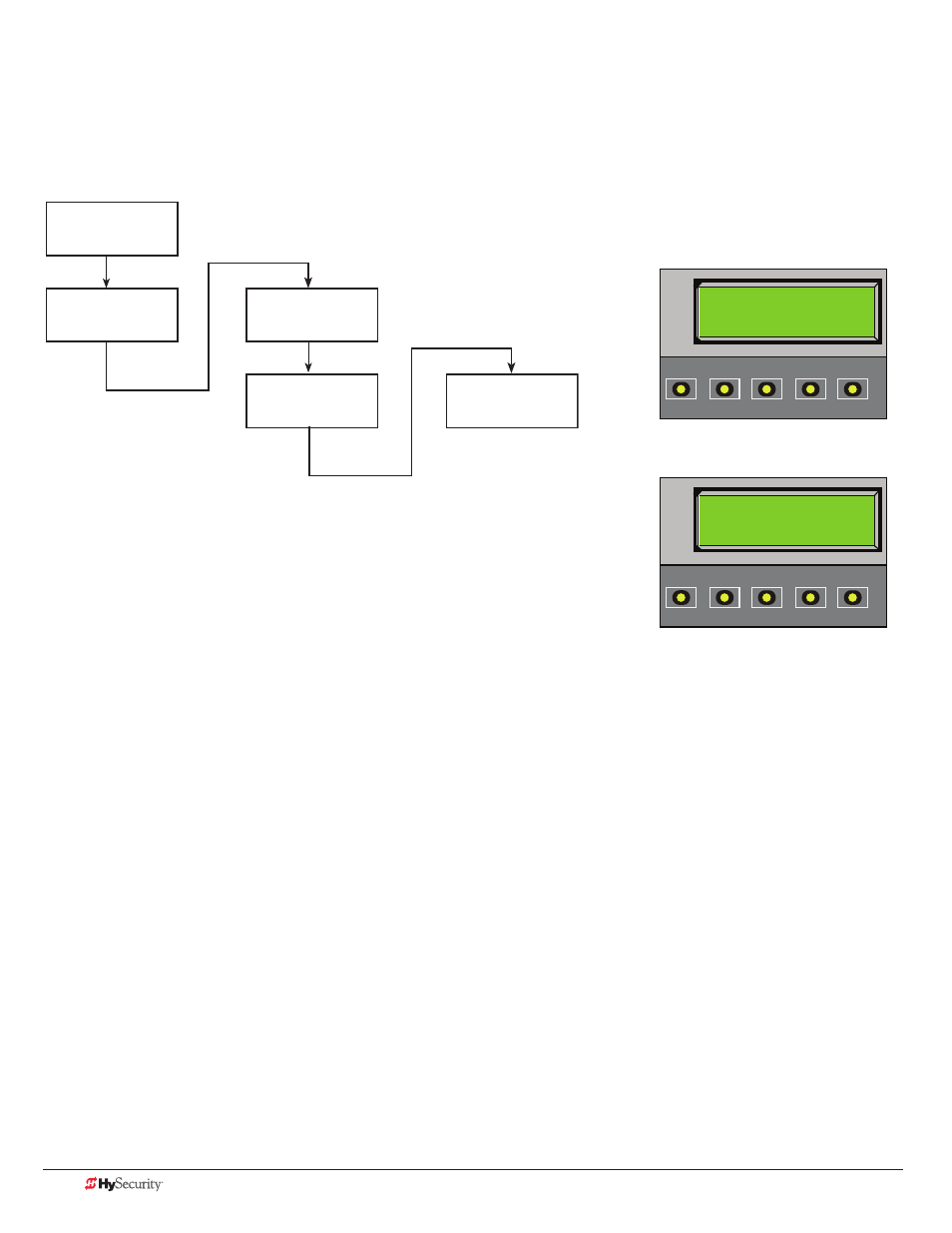

Status Display
GATE CLOSED
User Menu
CT 0 (OFF)
Installer Menu
LL 0 (OFF)
Learn Limits
LL 1 (ON)
LEARN OPEN
DEGS: +XXX.X
Press MENU twice at
the Run Mode static
display.
To access the Installer Menu,
press and hold RESET &
OPEN, and then release them.
Press Select.
The “LL” characters blink.
To activate the learn limits
function, press Next which
changes the display to LL 1.
Press Select. The
Learn OPEN blinks in
the display indicating
that the operator is
ready to relearn the
closed limit.
