3-2 D0536 Rev. B StrongArmPark DC: Programming & Operations Manual www.hysecurity.com
m
enu
m
ode
In Menu Mode, the motor disengages and operator commands are ignored. Data entry, menu navigation, and
menu selection can be accomplished using the buttons on the Smart DC Controller keypad.
NOTE: Menu Mode automatically returns to Run Mode if no activity (i.e. key presses) occurs for two minutes.
The 32-character LCD display limits what can be communicated with words. If you do not understand the
abbreviated word or acronym, please review the “User Menu” and “Installer Menu” sections.
m
enu
m
ode
n
avIgatIon
Navigating within the program menus is easy once you learn how the keypad buttons function. Refer to the fol-
lowing chart.
Smart DC Controller: Menu Mode Navigation Buttons
To change that data
appearing in the display
To navigate through the
Selections
To choose what appears
on the display
To navigate between
menu items
Press Select.
Two left characters blink.
Press Next or Previous.
Continue pressing Next to view
all selections.
Press Select.
Blinking characters
become static.
Press Next or Previous.
Advance - press Next
Previous - press Previous
NEXT or PREV
Navigational buttons.
Pressing Next or Previous
scrolls through the selections.
CT 0 (OFF)
CLOSE TIMER
OPEN CLOSE STOP MENU RESET
PREV NEXT SELECT
CT
Pressing Select
causes the left most two characters to
blink, (CT in the example), which indicates
the display is ready to accept changes to a
menu setting.
Use the navigational buttons to view selections. Press Select a second
time to accept what appears on the display. Entry mode is exited, the
two characters stop blinking, and Next or Previous must be pressed to
move onto a different display. Pressing Program exits to Run mode.
The Menu button accesses
program mode. When the
menu item is selected and
blinking, the Menu button has
no function. However, pressing
Menu when the 2 characters
are static (not blinking), returns
the operator to Run Mode.

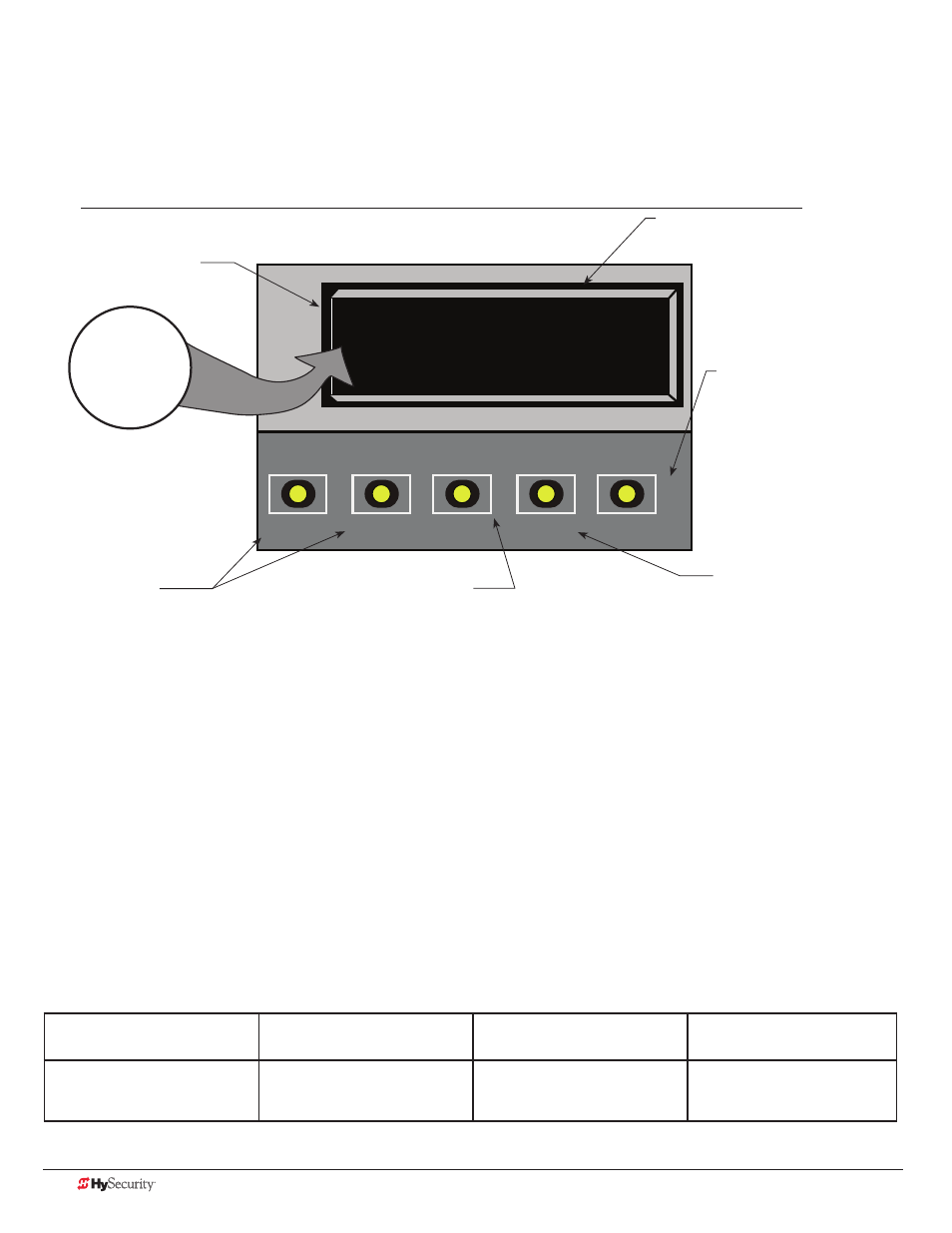

32-character display provides codes
which provide information about the
menu items.
The Reset button is disabled
while in Program Mode.
Two blinking characters
indicate that the display
will accept changes.
