Video Trigger
Choose video triggering to trigger on the odd fields, even
fields, or on all the lines of a NTSC or PAL/SECAM video
signal.

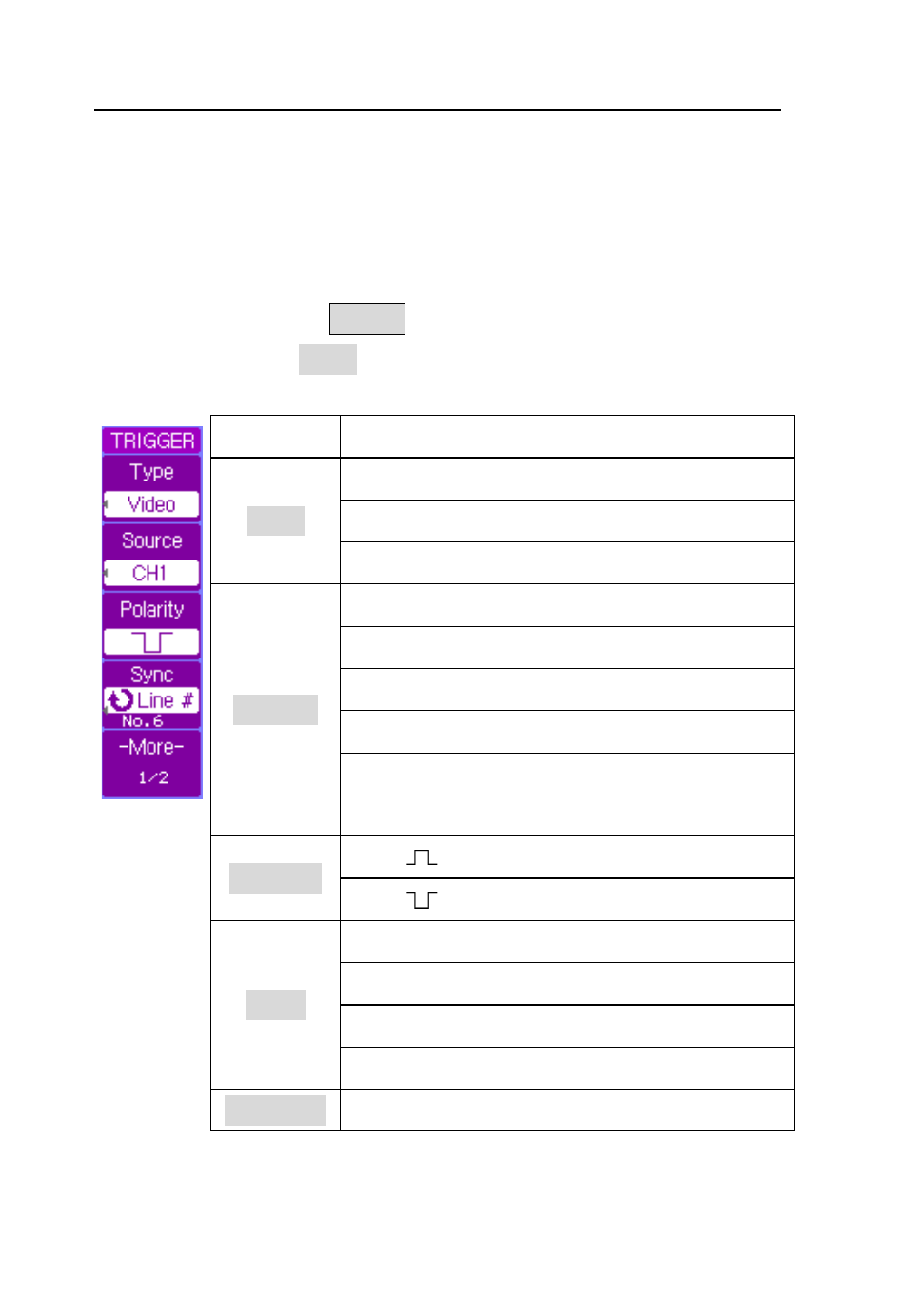

Press trigger control MENU key to display the TRIGGER
menu, then press Type softkey to select Video trigger.
Softkey
Options
Description
Type
Video
Video triggering
Edge
Edge triggering
Pulse
Pulse width triggering
Source
CH1
Trigger on CH1
CH2
Trigger on CH2
EXT
Trigger on EXT
EXT/5
Trigger on EXT/5
Alternating
Trigger on CH1 and
CH2 alternately
Polarity
Positive polarity
Negative polarity
Sync
Odd Field
Trigger on odd fields
Even Field
Trigger on even fields
All Lines
Trigger on all lines
Line #
Trigger on specific line
More 1/2
----
Select page 2/2
