LCD Main Screen Display

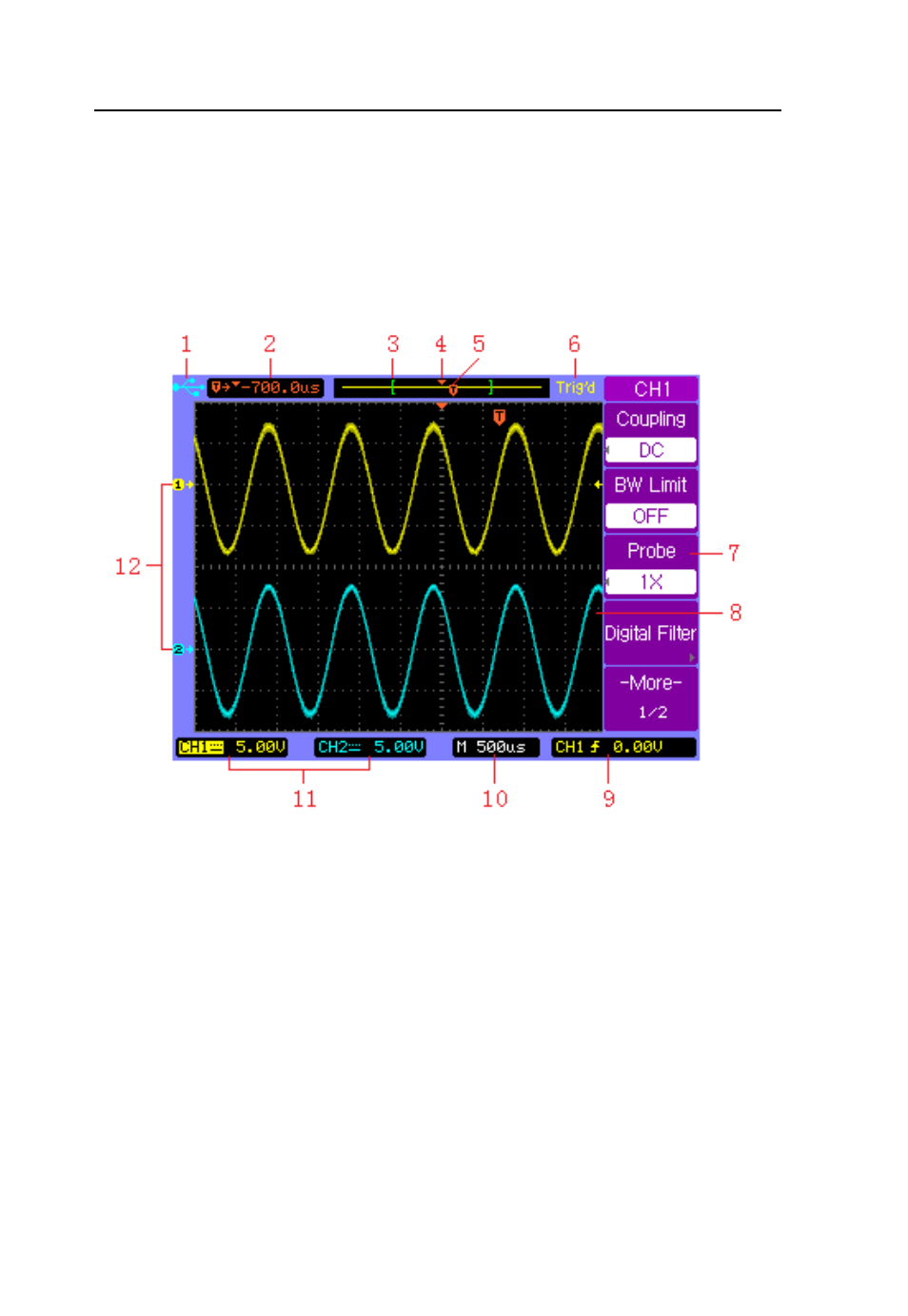

The oscilloscope display contains channel acquisitions, setup
information, measurement results, and soft keys for setting
up various parameters.
1. The USB icon appears when a USB drive is inserted into
the front USB host port and ready to be used. When
instrument is in remote mode, it will display “Rmt”
indicator instead.
2. Readout showing the trigger position relative to the
horizontal center of the screen.
