Arbitrary Waveform Generator
162
Capture/Storage
The capture/storage function allows users to store signals
applied to the DSOs CH1 or CH2 into the built-in arbitrary
waveform generator’s memory. Additionaly, a MATH function
may be applided to the CH1 and CHs input signals before
commiting it to the arbitrary memory

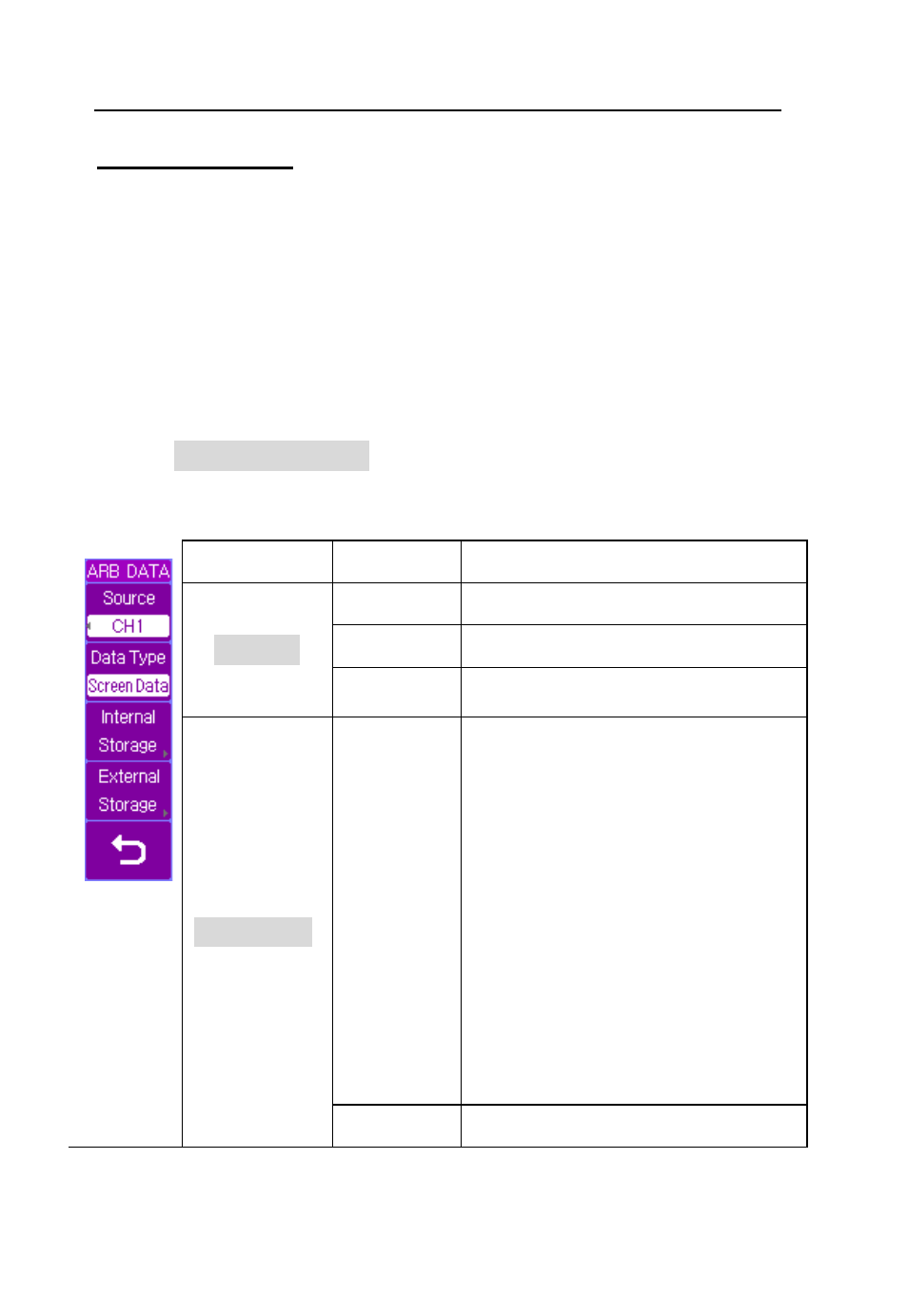

Press Capture/Storage softkey to display the ARB DATA
menu.
Softkey
Options
Description
Source
CH1
Source signal CH1
CH2
Source signal CH2
MATH
Source signal MATH
Date Type
Screen
Data
Currently displayed data on
the screen.
Note: Although screen
data contains up to
1200 pts, only 600 pts
will be stored into
internal arbitrary
waveform memory. (See
notes below)
Period
One period of currently
