Menu Operation
125
Internal Storage
Saving/Loading Trace

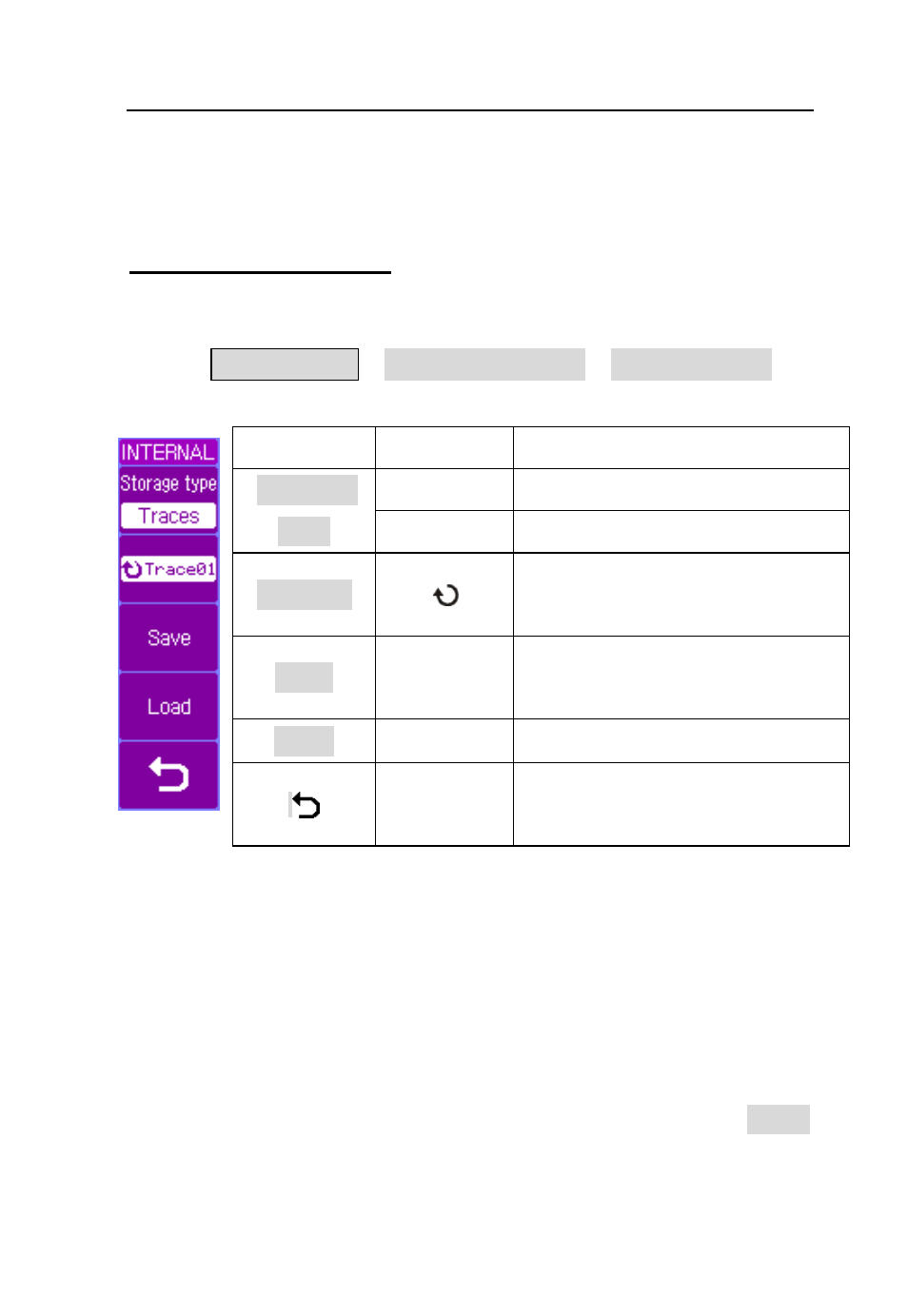

Press SAVE/LOAD
→Internal Storage→Storage type to
display the INTERNAL menu and select Trace storage type.
Softkey
Options
Description
Storage
type
Traces
Trace file format
Setups
Setup file format
Tracexx
Select a trace file from
Trace01 to Trace10
Save
----
Save the display to current
trace file
Load
----
Load the current trace file
----
Return to the SAVE/LOAD
menu
Note: A trace is similar to a reference waveform, except
it only stores/recalls a trace of exactly what’s
shown within the display frame only and not any
other part of the record data. It cannot be
adjusted with horizontal or vertical controls. To
clear the trace on display, use the Clear
