Arbitrary Waveform Generator
155

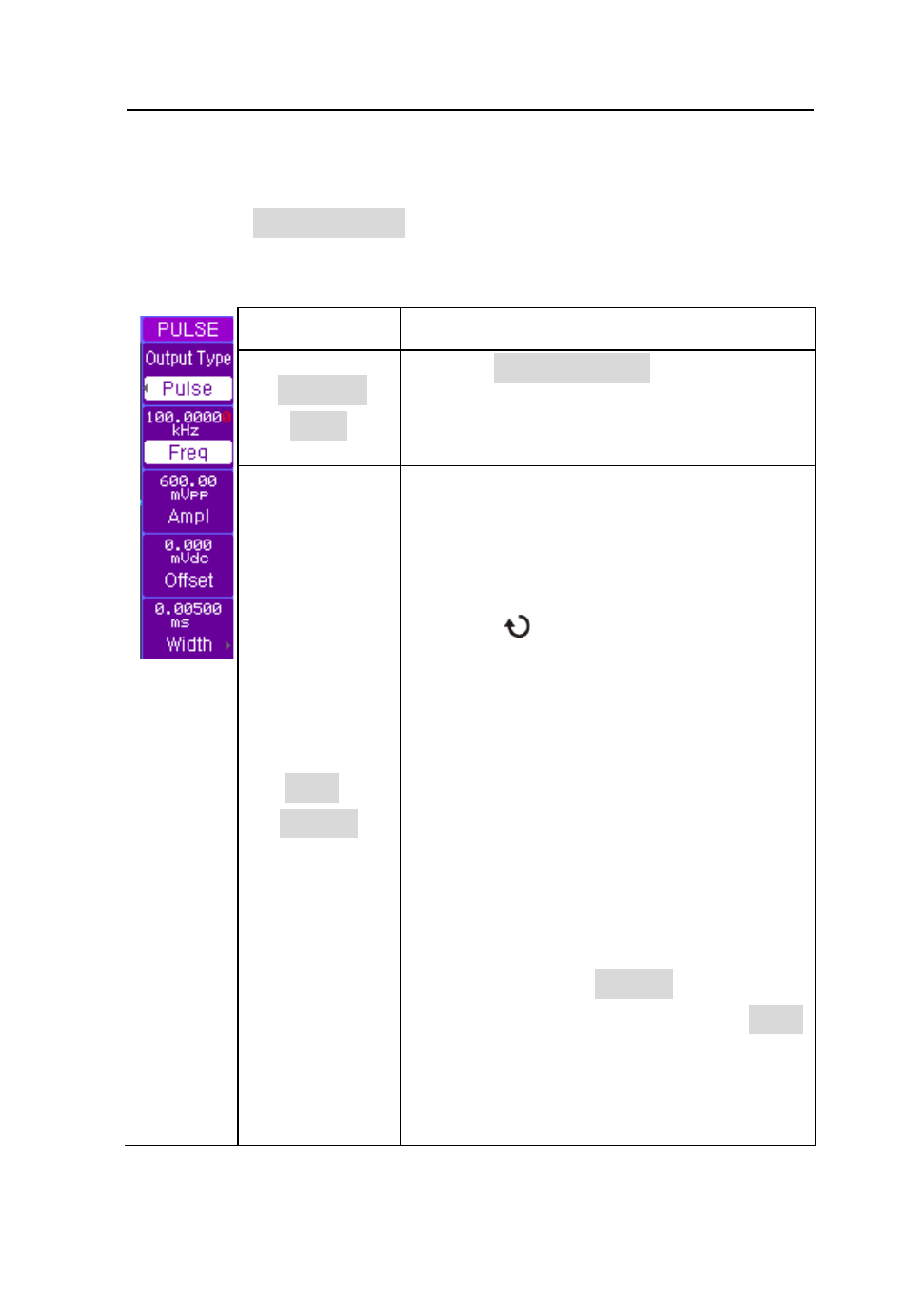

Pulse Output
Press the Output Type softkey to select Pulse waveform,
PULSE menu will be displayed.
Softkey
Description
Output
Type
Press Output Type to select a
standard waveform or modulated
signal to output
Freq /
Period
Press this softkey to toggle
selection between frequency and
period parameter. Use the left or
right keys below the adjustment
knob
to
change cursor
selection (selection will be in red
color) and rotate the adjustment
knob to change the value of the
selected digit. When a unit is
selected (i.e. Hz, kHz, MHz),
rotating the knob will change the
parameter upward or downward by
x10. Units will automatically
change accordingly.
Note: Only Period selection
can be adjusted. Freq
selection is for reading and
display purposes only and
reflects the frequency of the
