Quick Start Guide
205
Press
Y1--/
Y2—softkey or press the entry knob to
select Y1 cursor.
Rotate the entry knob
to move the Y1 cursor to the
upper intersection of the signal and Y axis.
Press
Y1--/
Y2—softkey or press the entry knob to
select Y2 cursor.
Rotate the entry knob
to move the Y2 cursor to the
lower intersection of the signal and Y axis.
ΔY displayed in the softkey area is the voltage difference
C (or 2A) between Y1 and Y2.

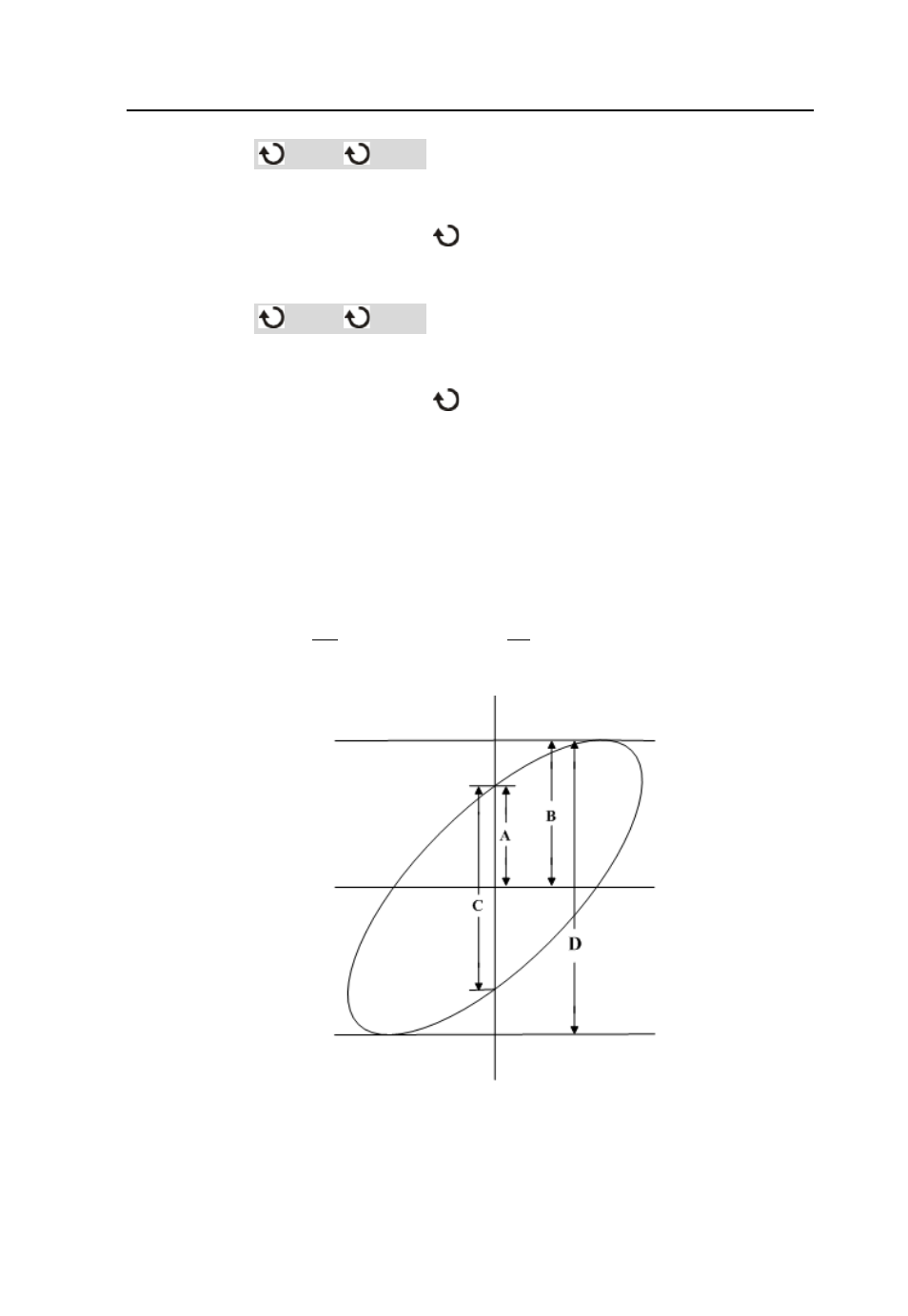

Calculate the phase difference using the formula below.
D
C
arcsin
±
=
θ
or
B
A
arcsin
=
θ
.
