Menu Operation
111

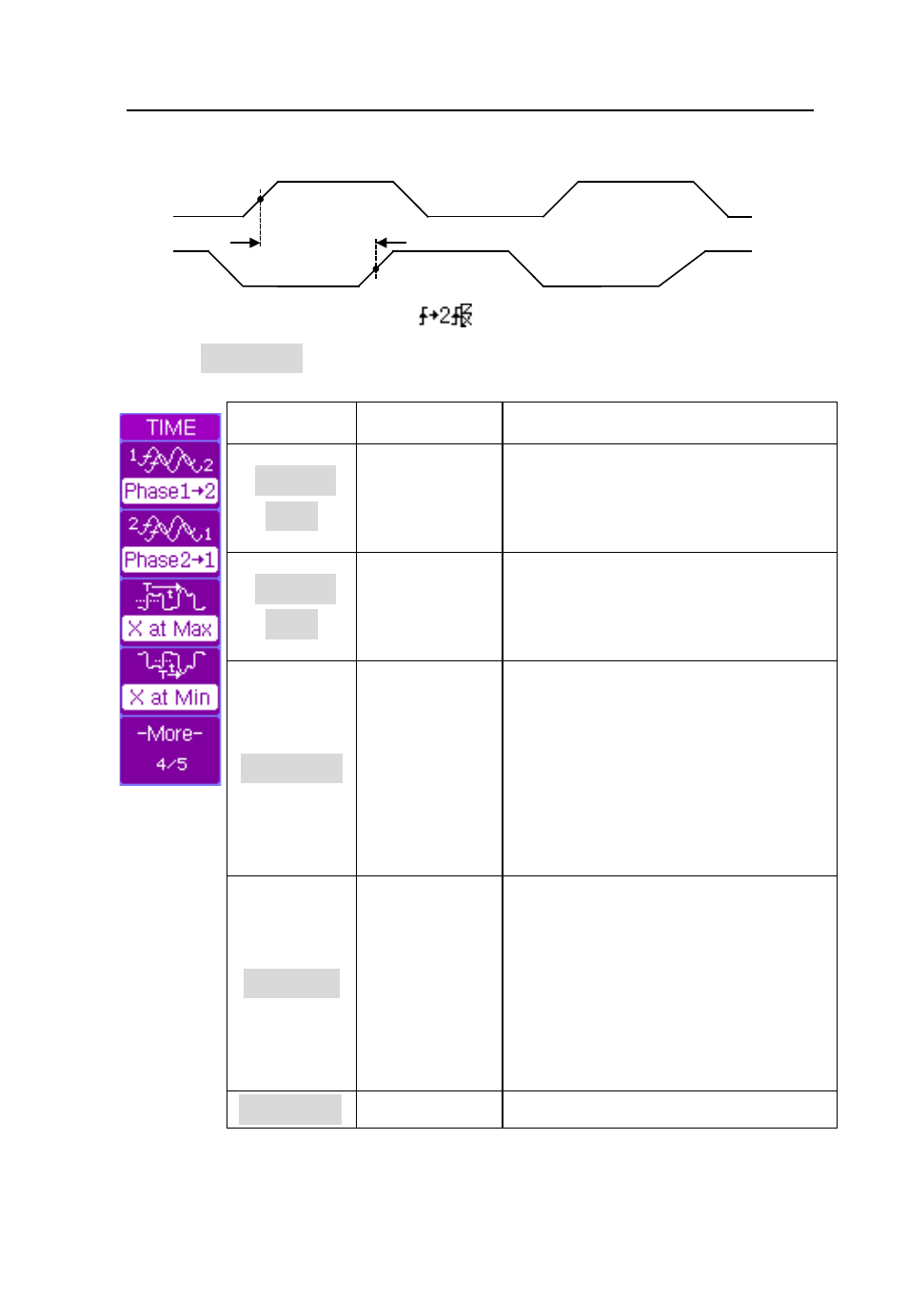

Delay
definition
Press More 3/5 softkey to display the TIME menu page 4/5.
Softkey
Options
Description
Phase
1
→2
----
Phase
1→2 is the ratio of
Delay 1
→2 to the period of
CH1, expressed in degrees
Phase
2
→1
----
Phase 2
→1 is the ratio of
Delay 2
→1 to the period of
CH2, expressed in degrees
X at Max
----
X at Max is the X axis value
(refer to Trigger point) at
the first displayed
occurrence of the waveform
Maximum, starting from the
left side of the display
X at Min
----
X at Min is the X axis value
(refer to Trigger point) at
the first displayed
occurrence of the waveform
Minimum, starting from the
left side of the display
More 4/5
----
Display menu page 5/5
CH1
CH2
Delay
