Gilbarco Advantage Narrow Frame - DTU Installation
Gilbarco Advantage Narrow Frame
This section illustrates the basic components needed
to retrofi t a TS-DTU module into an existing or UL
remanufactured dispenser. This system can be installed
in any “Non-Vapor or Vapor Ready” dispenser including
dispensers with existing “Balance” or “VacAssist” piping.
1. Loosen three bolts at the bottom of each main
door assembly.

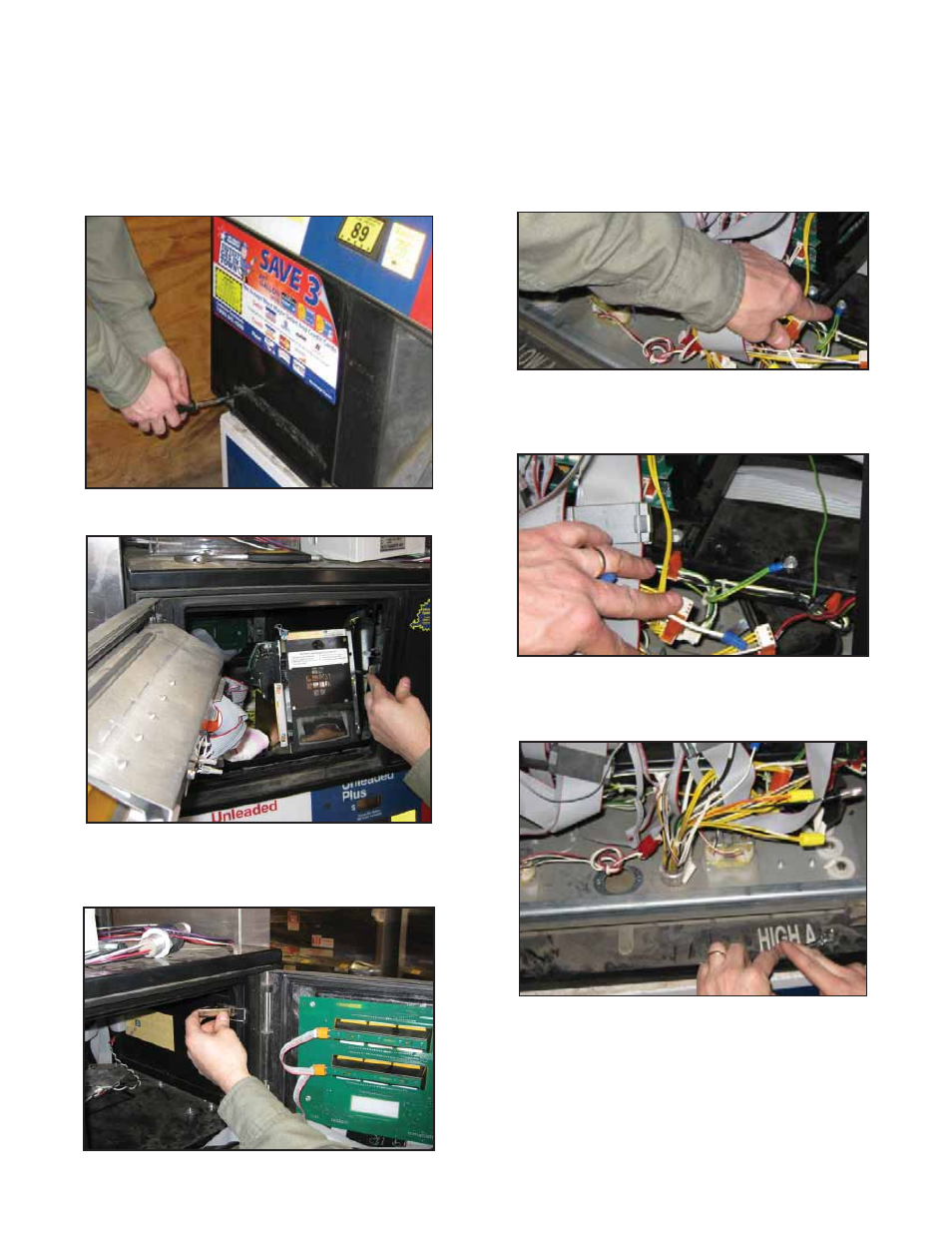

Figure 1: Loosen Bolts
2. Unlock the left options door on each main door.
Figure 2: Open Options Door
3. Lift latch on right side of left options door opening
to release right options door on each side of the
dispenser.
Figure 3: Release Options Door
4. Disengage two latches, one in each right and left
options door openings, and open main door on
both sides of dispenser.
5. Move to side A of dispenser. Side A can be
determined by the side that the credit card reader
(crind) tray pops out.
6. Find ground wire mounting location shown and
remove screw and star washer.
Figure 4: Find Ground Wire
7. Reinstall ground with ring terminal screw and star
washer in alternate location shown. Tighten screw
securely.
Figure 5: Reinstalled Ground Wire
8. Find shield covering opening in air gap and
remove two bolts from shield. Retain shield and
bolts for future reassembly.
Figure 6: Air Gap Shield
