MKP 3000 Series • Installation

MKP 3000 Series • Installation

Installation, cont’d

Crossover cable —

Direct connection between the MKP

and a host computer or an Ethernet-enabled matrix
switcher (figure 2-14)

Patch (straight) cable —

Network connection between

the MKP and an Ethernet LAN (figure 2-14)

For pin assignments, see figure 2-16, below.

Patch (straight) cable

Side 1

Side 2

Pin Wire color Pin Wire color

1 White-orange 1 White-orange

2 Orange 2

Orange

3 White-green 3 White-green

4 Blue 4

Blue

5 White-blue 5

White-blue

6 Green

6 Green

7 White-brown 7

White-brown

8 Brown

8 Brown

Crossover cable

Side 1

Side 2

Pin Wire color Pin Wire color

1 White-orange 1 White-green

2 Orange 2

Green

3 White-green 3 White-orange

4 Blue 4

Blue

5 White-blue 5

White-blue

6 Green

6 Orange

7 White-brown 7

White-brown

8 Brown

8 Brown

Clip Down

Side

1

1&2

3&6 4&5

7&8

2 3 4 5 6 7 8

Pins

1 2 3 4 5 6 7 8

RJ-45

connector

Twisted

Pairs

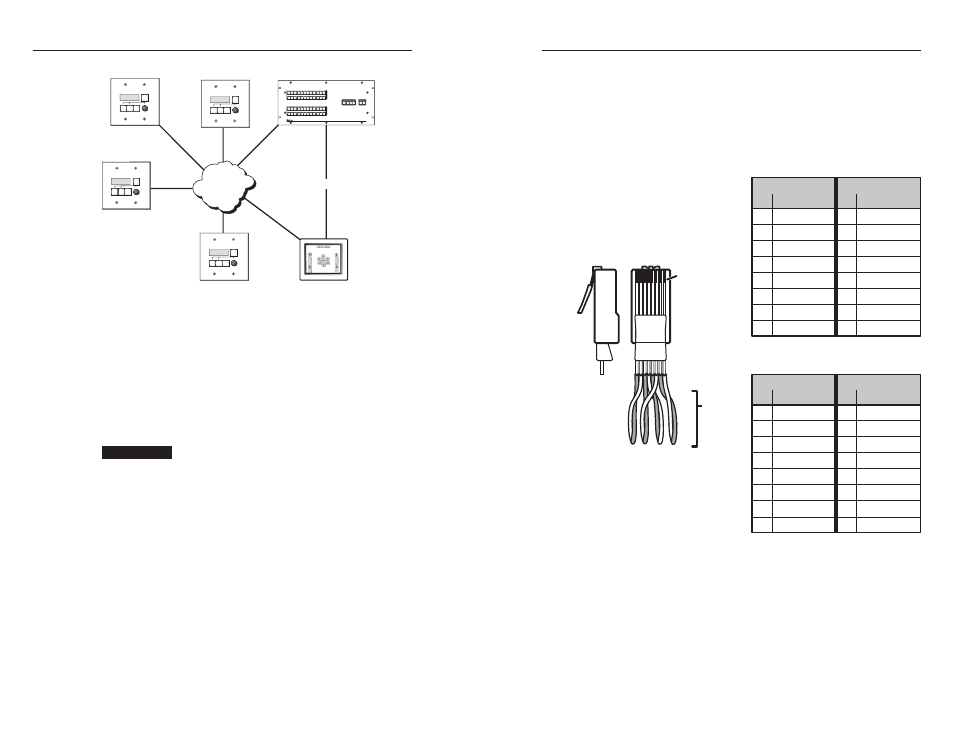

Figure 2-16 — RJ-45 connector and pinout tables

2-17

2-16

Ethernet

MKP 3000

MKP 3000

MKP 3000

MKP 3000

RS-232

Control
System

Matrix Switcher

I
N
P
U
T
S

CONTROL

O
U
T
P
U
T
S

I/O

1

2

3

4

5

6

7

8

9 10 11 12

13 14 15 16 17 18 19 20 21 22 23 24

1

2

3

4

5

6

7

8

9 10 11 12

13 14 15 16 17 18 19 20 21 22 23 24

MAV 2400 SERIES SWITCHER

I / O

SELECT

Extron

MKP 3000

I / O

SELECT

Extron

MKP 3000

I / O

SELECT

Extron

MKP 3000

I / O

SELECT

Extron

MKP 3000

Figure 2-15 — Network MKP connection using the
LAN port

Ethernet (TP) cable termination

It is vital that you use the correct Ethernet cables, and that they
be properly terminated with the correct pinout. Ethernet links
use Category (CAT) 5, 5e or CAT 6, unshielded twisted pair
(UTP) or shielded twisted pair (STP) cables, terminated with
RJ-45 connectors. Ethernet cables are limited to 328' (100 m).

CAUTION

Do not use standard telephone cables. Telephone
cables do not support Ethernet or Fast Ethernet.

Do not stretch or bend cables. This can cause
transmission errors.

The cable you use depends on your network speed. The MKP
supports both 10 Mbps (10Base-T — Ethernet) and 100 Mbps
(100Base-T — Fast Ethernet), half-duplex and full-duplex,
Ethernet connections.

10Base-T Ethernet requires CAT 5 UTP or STP cable as a
minimum

100Base-T Fast Ethernet requires CAT 5e UTP or STP
cable as a minimum

The Ethernet cable can be terminated as a straight-through cable
or a crossover cable. It must be terminated properly for your
application (figure 2-16).
