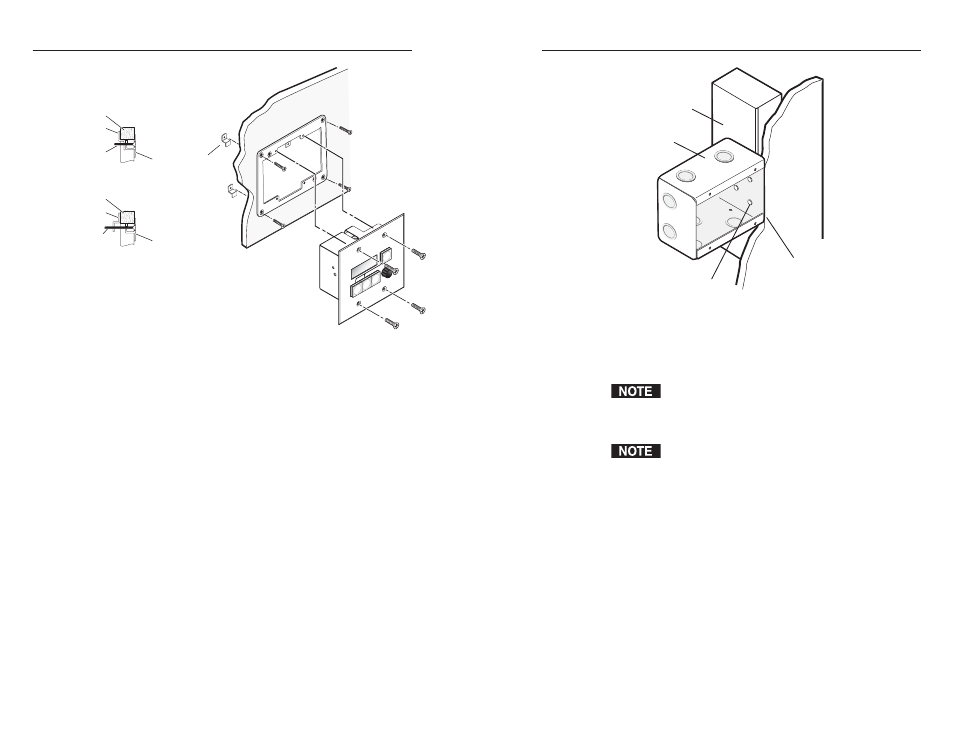

Page 12: Figure 2-4 — attaching a wall box to a wall stud, Figure 2-3 — attaching a mud ring to a wall

background image

MKP 3000 Series • Installation

MKP 3000 Series • Installation

Installation, cont’d

Flush with
Wall Surface

Screws or Nails

Wall Stud

Wall Box

Figure 2-4 — Attaching a wall box to a wall stud

8

.

Connect the Ethernet and/or RS-232 cable (as appropriate)
and the power cable, and test the MKP before fastening the
MKP into the wall box. See “Rear Panel and Side Panel
Connections,” on page 2-10, for details.

The rear panel connectors are inaccessible after
installation.

Mounting the MKP to a mud ring or wall box

If the installation involves an MKP 3000 MAAP and an
optional MKP 10 MAAP remote keypad, mount the
MKP 10 MAAP to the MKP 3000 MAAP before
installing the MKP 3000 MAAP into the mud ring or
wall box. See “Mounting the MKP 10 MAAP,” on
page 2-19.

1

.

Remove power from the control panel by disconnecting
the power supply.

2

.

Place the control panel through the opening in the wall or
furniture and through the mud ring or into the wall box.
Take care not to damage the cables, which fit behind the
MKP, at the back of the wall box.

2-7

2-6

Extr

on

MK

P

30

00

I/O

SE

LE

CT

PO

WER

RES

ET

Detail A

0.75" #6-32 Screw

Backing Clip

Backing Clip

Sheet Rock

Sheet Rock

Mounting Bracket

Mounting Bracket

Detail B

1.25" #6-32 Screw

Backing clip can

be in either orientation.

See Detail A or Detail B.

Extron
MKP 3000

Figure 2-3 — Attaching a mud ring to a wall

If you are using a wall box

, insert the wall box into the

opening, and attach it to the wall stud or furniture with
nails or screws, leaving the front edge flush with the outer
wall or furniture surface (figure 2-4).

If attaching the wall box to wood, use four #8 or #10
screws or 10-penny nails. A minimum of ½ inch (1.3 cm)
of screw threads must penetrate the wood.

If attaching the wall box to metal studs or furniture, use
four #8 or #10 self-tapping sheet metal screws or machine
bolts with matching nuts.
