3-25
MPX Plus 866 A Media Presentation Matrix Switcher • Operation
PRELIMINAR
Y
4
.
Change the RGB delay
: Press and release the Esc (
>
) button once to increase
the RGB delay by a half second.
Press and release the Esc (
>
) button twice more to increase the RGB delay by a
whole second. Note the input button indication changes that occur each time
the Esc (
>
) button is pressed and released.

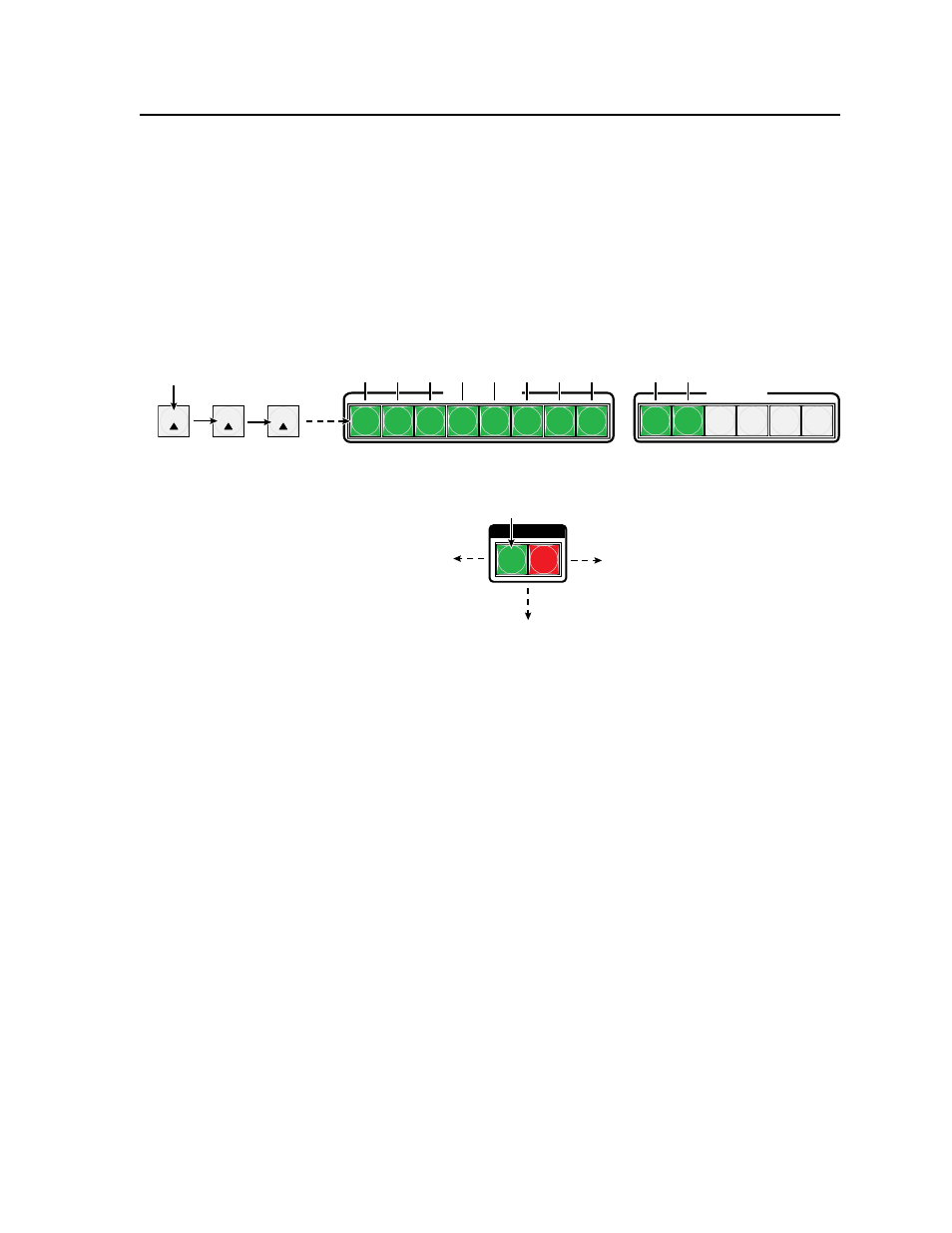

The figure below show the result of pressing the Esc (
>
) button a total of 3
times.
ESC
ESC
ESC
COMPUTER INPUTS
1
2
3
4
5
6
7
8
9 10 11 12 13 14
VIDEO INPUTS
Press the Esc button to increase
the RGB interval that is applied to
ties to the selected output by
a half second per button push.
The input buttons 1 through 10 display the selected output's RGB delay.
Each lit input button indicates half a second of delay.
In this example, the green input buttons display 5.0 seconds of RGB delay.
3.5
4.0
4.5
5.0
3.0
2.5
2.0
1.5
1.0
0.5
5
.
Deselect
Video mode
: Press and release the Video button.
I / O
VIDEO
AUDIO
The Audio button lights red.
Press the Video button
to exit Video mode.
All input buttons and output buttons
return to unlit or background illumination.
The Video button stops
blinking and lights green.
