HTML Operation, cont’d
MPX Plus 866 A Media Presentation Matrix Switcher • HTML Operation
6-8
PRELIMINAR
Y
Video Input Settings page
Access the Video Input Settings page (figure 6-6) by clicking the Video Input
Settings
link on the System Settings page.
Refresh
System Settings
Firmware Upgrade
Passwords

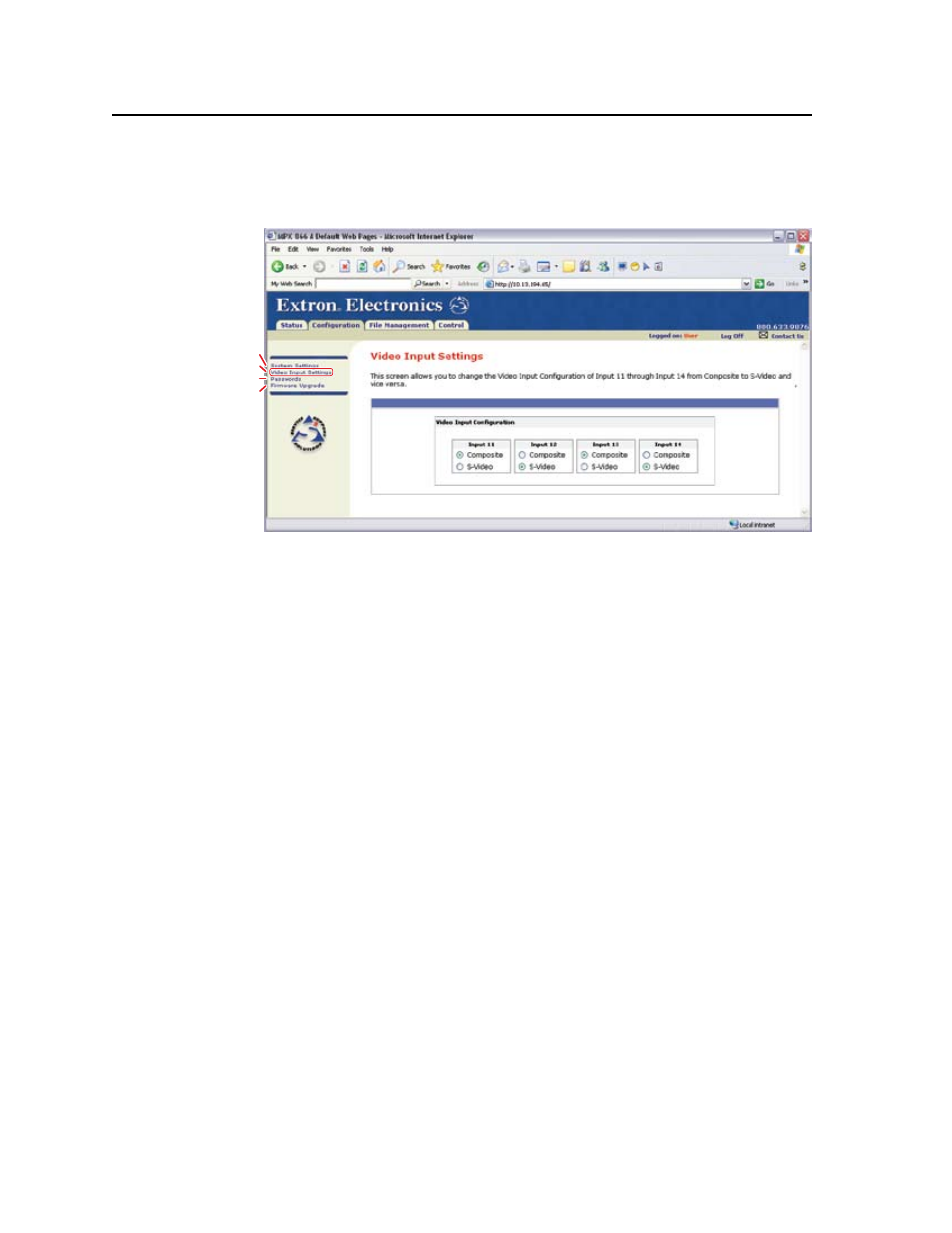

Figure 6-6 — Video Input Settings page
Low resolution video inputs 11 through 14 are individually configurable as either
S-video or composite video. Click the appropriate radio button on the Video Inputs
Settings page to select between S-video and composite video.
