MPX Plus 866 A Media Presentation Matrix Switcher • Operation 3-2
Operation
PRELIMINAR
Y
Front Panel Controls and Indicators
The front panel controls (figure 3-1) are grouped into two sets. The input and
output buttons are grouped on the left side of the control panel. The control
buttons and video/audio (I/O) selection buttons are grouped on the right side of
the panel.
The illuminated pushbuttons can be labeled with text and/or graphics. The
buttons can be set to provide amber background illumination all the time or
the background illumination can be turned off (see “Background illumination”,
on page 3-45). The buttons blink or are lit at full intensity (depending on the
operation) when selected.
AUDIO VIDEO ENTER PRESET VIEW ESC
PRESENTATION MATRIX SWITCHER
MPX PLUS 866 A
COMPUTER INPUTS
1 2 3 4 5 6 7 8 9 10 11 12 13 14
1 2 3 4 5 6 7 8 9 10 11 12
VIDEO INPUTS
VIDEO OUTPUTS
CONFIG
COMPUTER/AUDIO OUTPUTS
I/O CONTROL
1 2
3 4 10 9 8 7 6 5

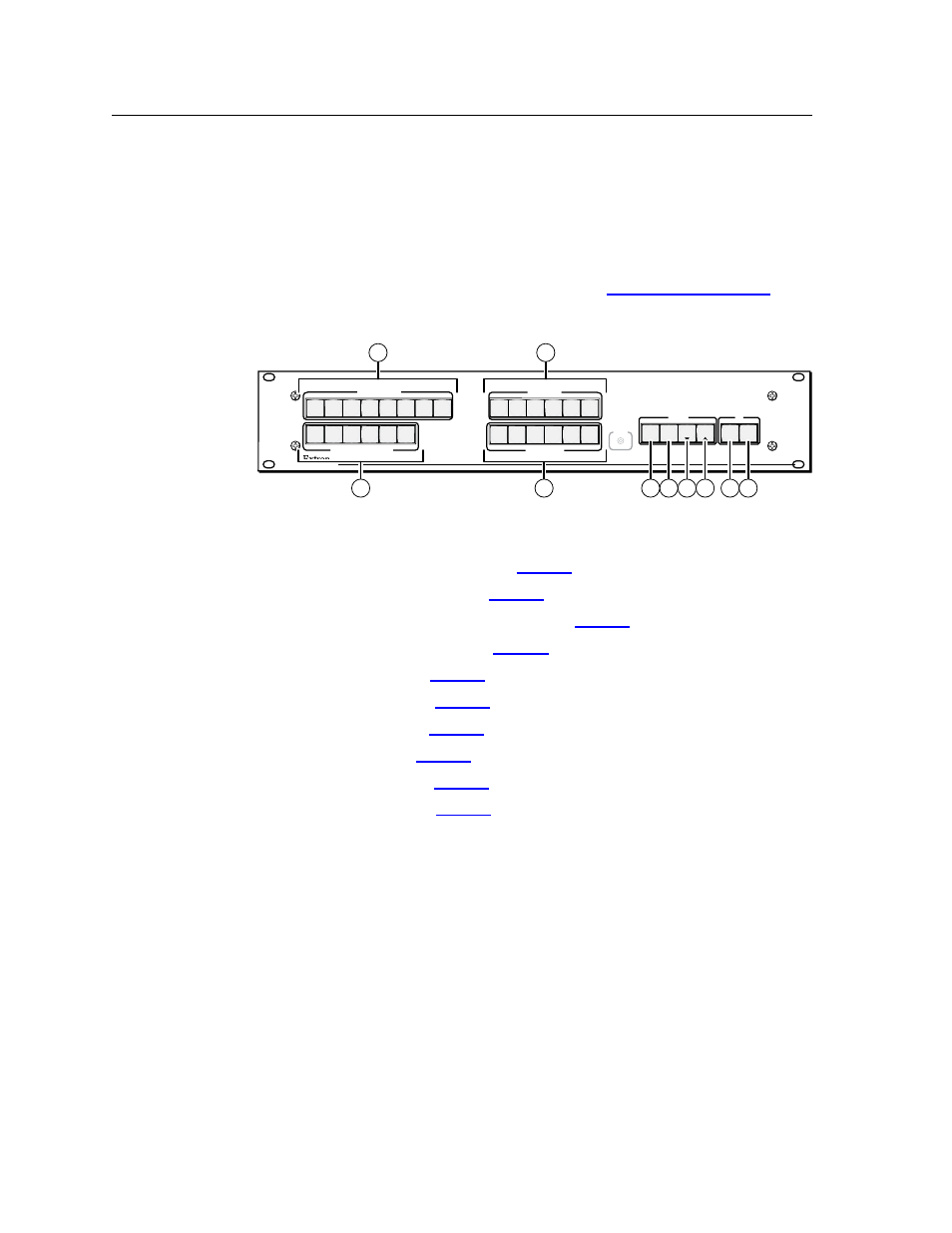

Figure 3-1 — MPX Plus 866 A
a
Computer Inputs buttons — See page 3-4.
b
Video Inputs buttons — See page 3-4.
c
Computer/Audio Outputs buttons — See page 3-4.
d
Video Output buttons — See page 3-4.
e
Enter button — See page 3-5.
f
Preset button — See page 3-6.
g
View button — See page 3-6.
h
Esc button — See page 3-6.
i
Video button — See page 3-7.
j
Audio button — See page 3-7.
