5-19

MPX Plus 866 A Media Presentation Matrix Switcher • Switcher Software

PRELIMINAR

Y

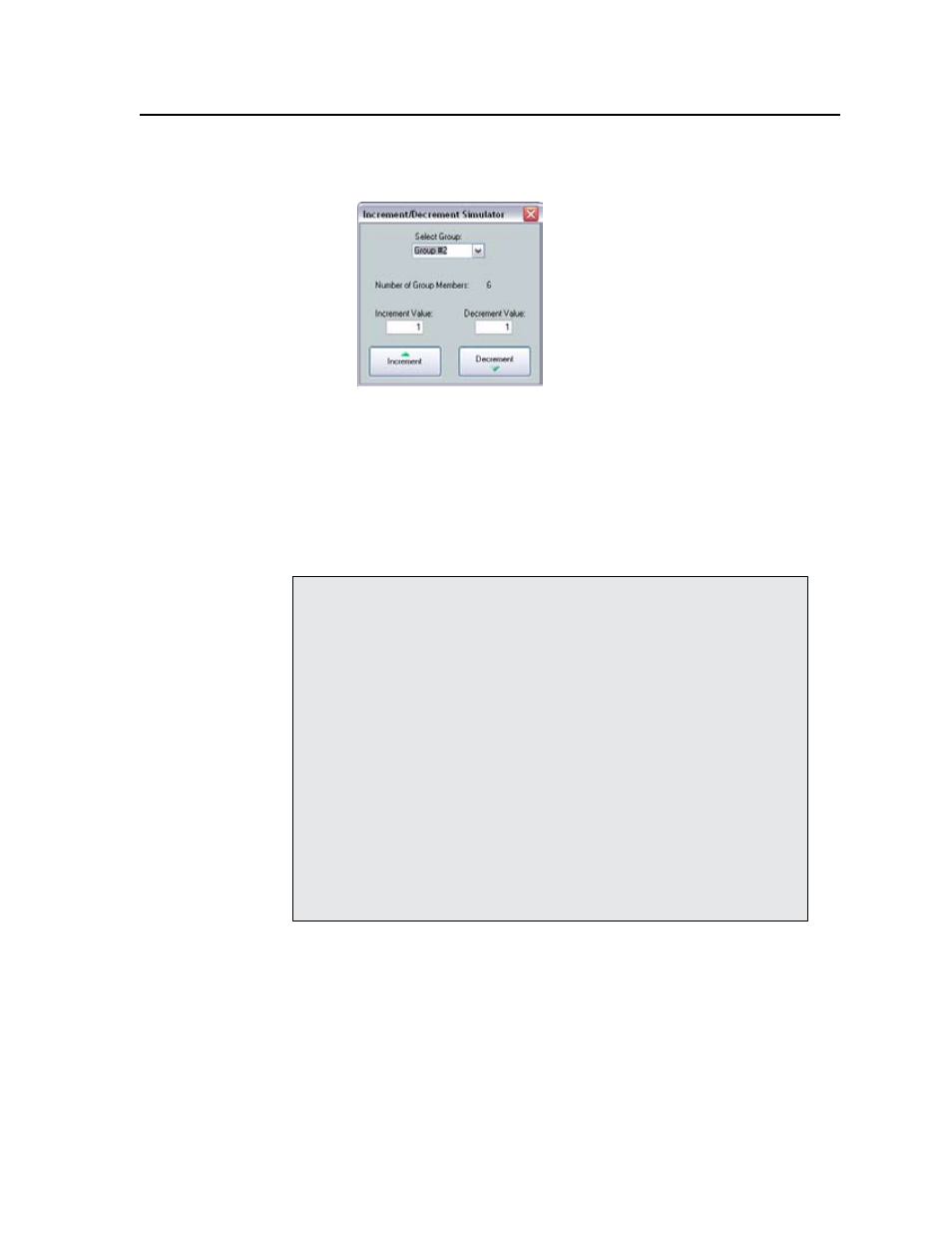

• Click Tools > Increment/Decrement Simulator to open a dialog box

(figure 5-13) that lets you experiment with fine adjustments.

Figure 5-13 — Increment/Decrement Simulator dialog box

N

You must select a group before the other controls in the dialog box are active.

The size of the increment can be changed from its default value of 1 dB by

typing a value in the Increment Value or Decrement Value field, to as fine as
0.1 dB.

• Click Tools > Group Details Report to create a Microsoft Word file that

details all created groups (figure 5-14).

GROUP DETAILS REPORT

Group #1
Processor Type: Mute
Current Value: 1
Current Group Members:
Output #7 Left Channel
Output #8 Right Channel
Output #9 Left Channel
Output #10 Right Channel
Output #11 Left Channel
Output #12 Right Channel

Group #2
Processor Type: Gain
Current Value: -10.8
Current Group Members:
Output #1 Left Channel
Output #2 Right Channel
Output #3 Left Channel
Output #4 Right Channel
Output #5 Left Channel
Output #6 Right Channel

Figure 5-14 — Sample group details report
