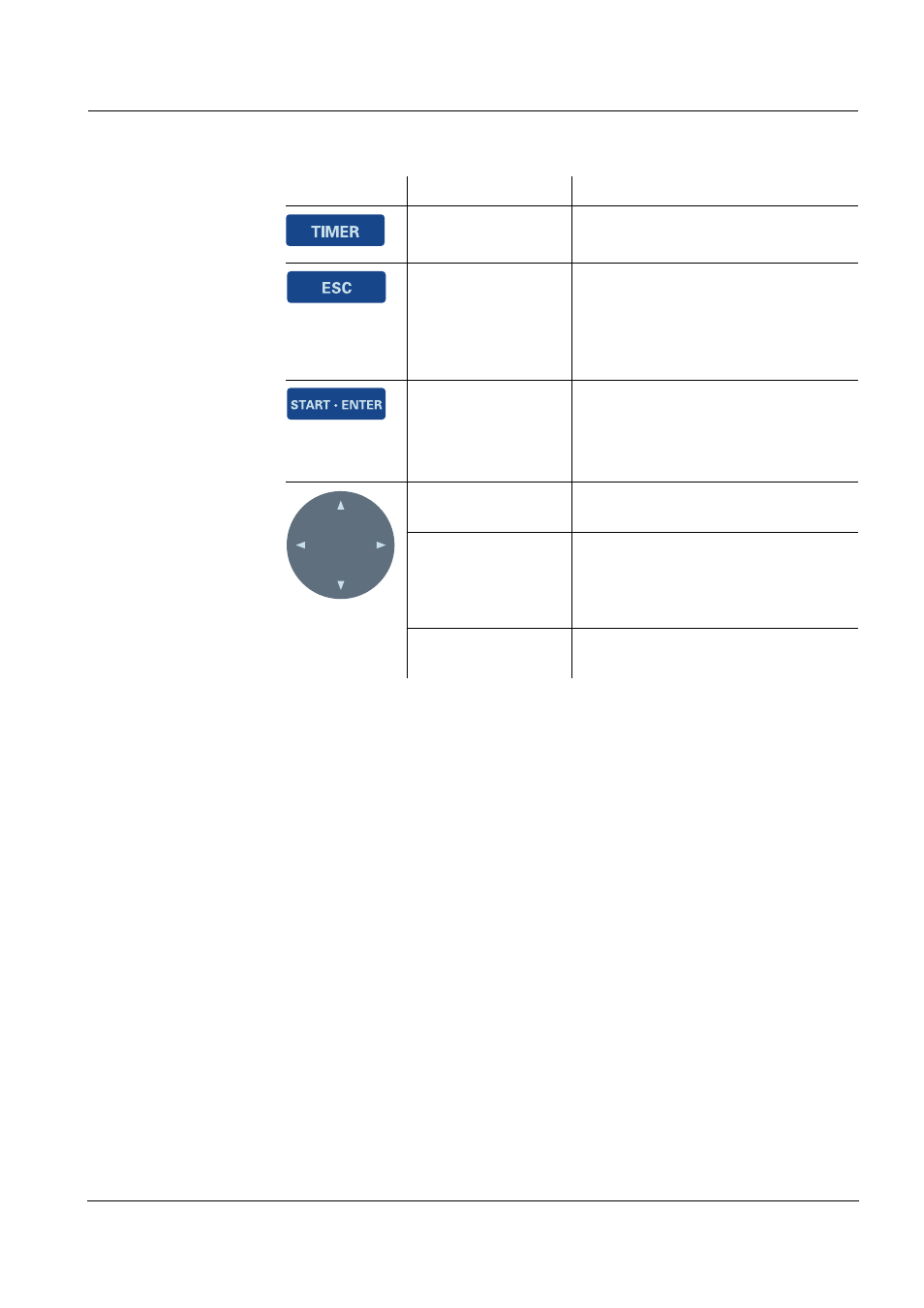

Function keys The function keys F1 to F4 have different functions depending on the
operating situation. The current functions are displayed in the function key
menu at the bottom edge of the display (see section 4.2.1).
– Opens the menu, Timer.
– Cancels the running action.
Entries that have not yet been
accepted are discarded.
– Switches to the next higher menu
level.
– Starts an action (e.g.
measurement)
– Opens a selected menu
– Confirms a selection or entry
(Arrow keys)
<
▲>or
<
▼>
– Moves the selection in menus and
lists one position up or down
< W> – Deletes the character left of the
cursor during character entries
– Moves the cursor to the left in a
spectrum or kinetic diagram
<
X> – Moves the cursor to the right in a
spectrum or kinetic diagram
Key Designation Functions
