Operation
photoLab
®
6100 VIS
38
ba75847e01
08/2009
Note
Ordering information is given in chapter 8 A
cells listed in the chapter 8 A
are especially adapted
to the WTW test set program. General requirements of the cells are given in
chapter 7 T
. Note that the spectral transparency of the cell
must be suitable for the intended application (example, quartz cell for UV
range).

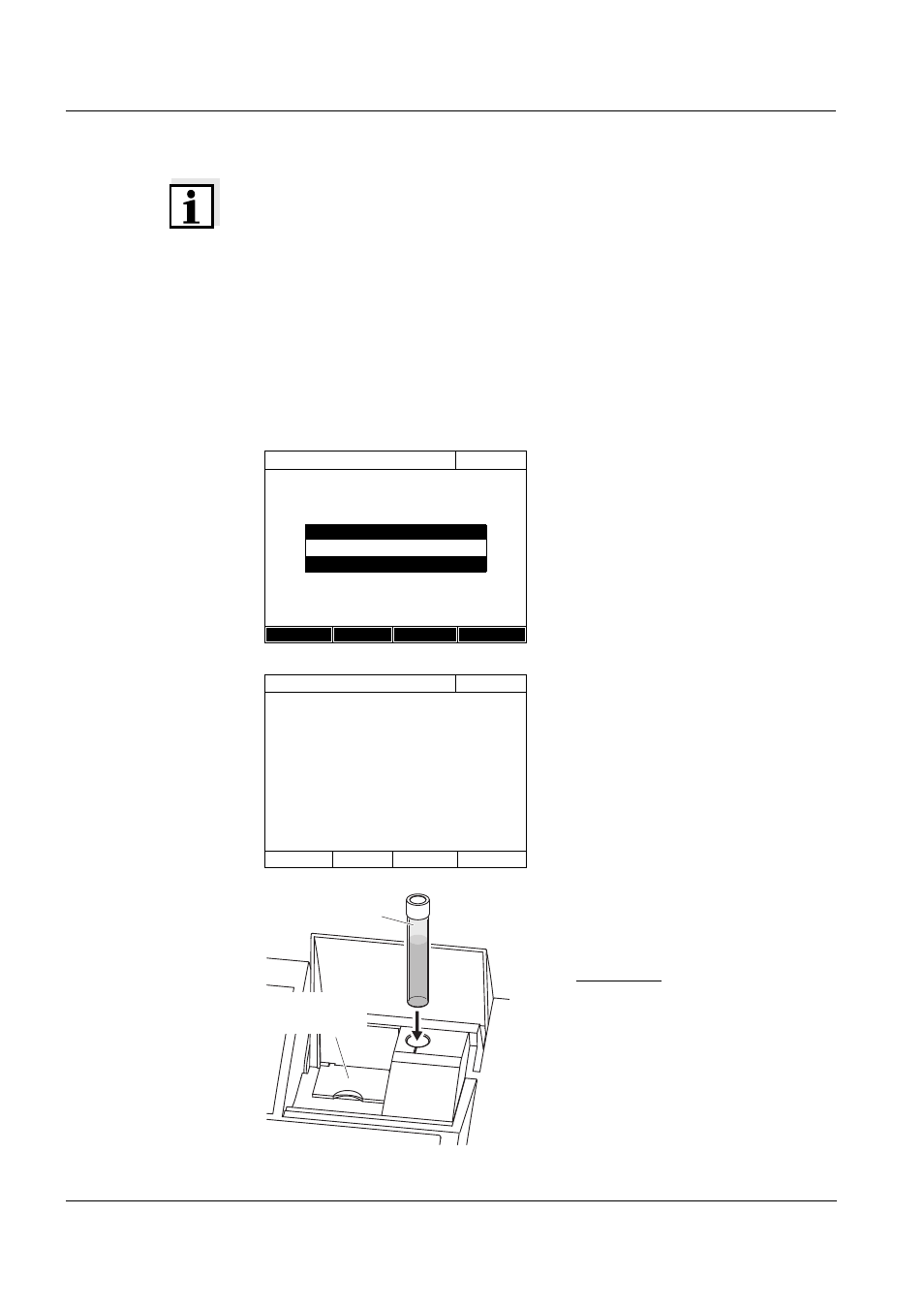

Carrying out a zero
adjustment
The zero adjustment takes place similarly in the Concentration, Absorbance
/ % Transmission, Multi wavelengths and Kinetics modes.
1
In the respective mode, press the
2
In Concentration mode only:
Select and confirm Zero
adjustment.
The zero adjustment window pops
up.
3
Close the inner turn-up lid.
4
Depending on the cell type, insert
the zero cell as follows:
Round cell:
Insert the round cell in the round
cell shaft so it touches the bottom.
If the inner turn-up lid is opened
too wide, a message prompts you
to close the inner turn-up lid.
Concentration
04/16/07 9:52
3: A6/25
NH
4
-N
16 mm
0.20 - 8.00 mg/l
Setup
Method list
Citation form
Unit
Adjust
Blank value
Zero adjustment
Zero adjustment
04/16/07 9:52
Please insert zero cell (distilled water)
or press
Zero cell
(H O dist.)
2
inner
turn-up lid
