3.3

Connecting optional accessories

3.3.1

Communication interfaces

Connections

You can connect the following accessories to the photometer:

z PC (see section 3.3.2)

z Printer (see section 3.3.2)

z USB storage media (see section 3.3.3)

z USB-PC keyboard (see section 3.3.4)

z Barcode reader (see section 3.3.5)

z Car Adapter photoLab

6xxx (see section 3.3.6)

Note
If you want to connect several USB devices such as a USB-PC keyboard and
a USB memory device to the meter, you can increase the number of USB-A
sockets by a commercially available USB-2 hub with separate power supply.

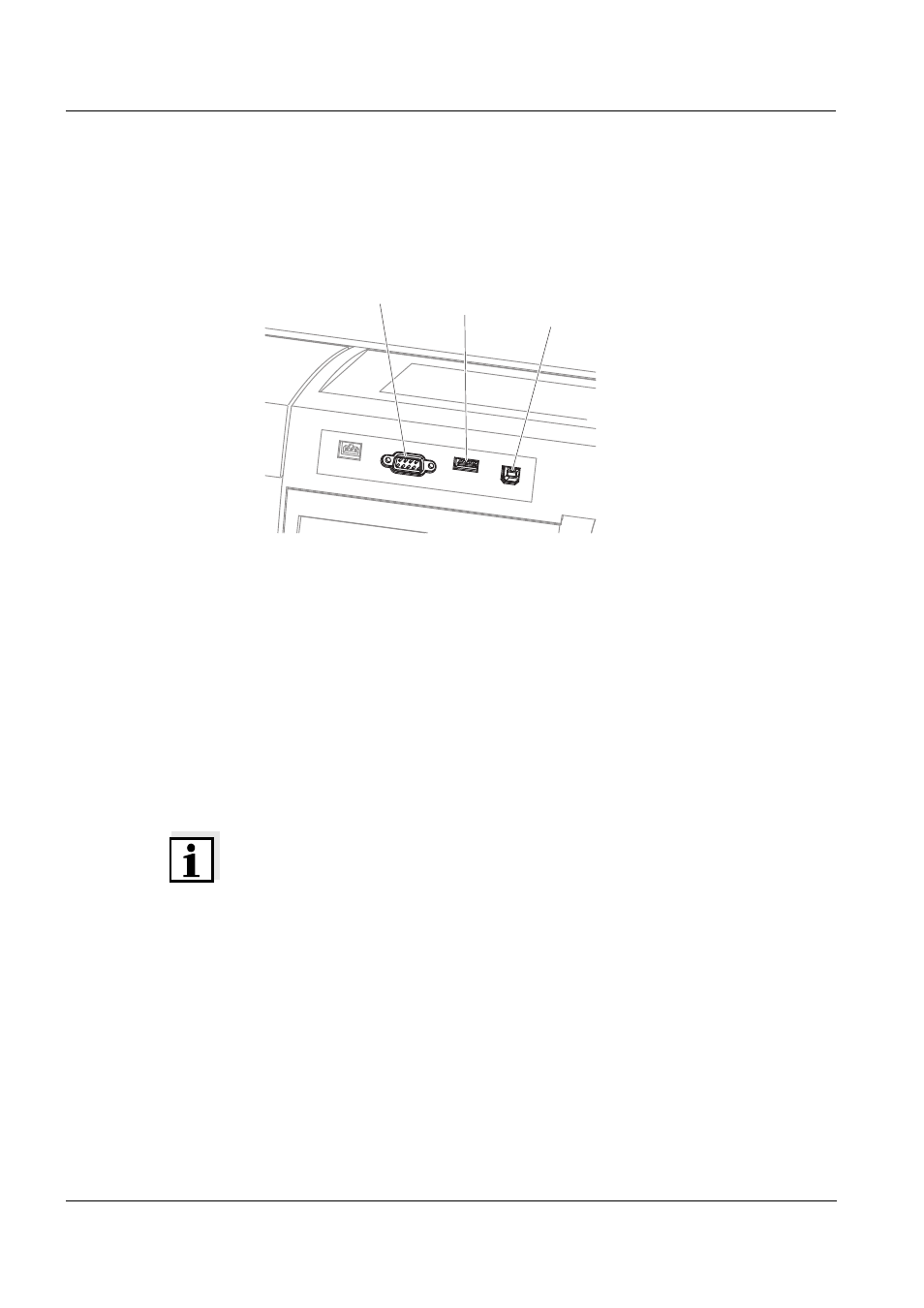

Fig. 3-1

Communication interfaces on the rear panel

USB-A

RS232

USB-B
