photoLab
®
6100 VIS Operation
41 ba75847e01 08/2009
4.5 Measuring in Concentration mode
4.5.1 Measuring cell tests with barcode
Display if the value is not within the measuring range (see section 4.5.4).
Inserting a cell with barcode starts
a measurement.
1 Open the cell shaft cover.
2 Close the inner turn-up lid.
If the inner turn-up lid is opened
too wide, a message prompts you
to close the inner turn-up lid.

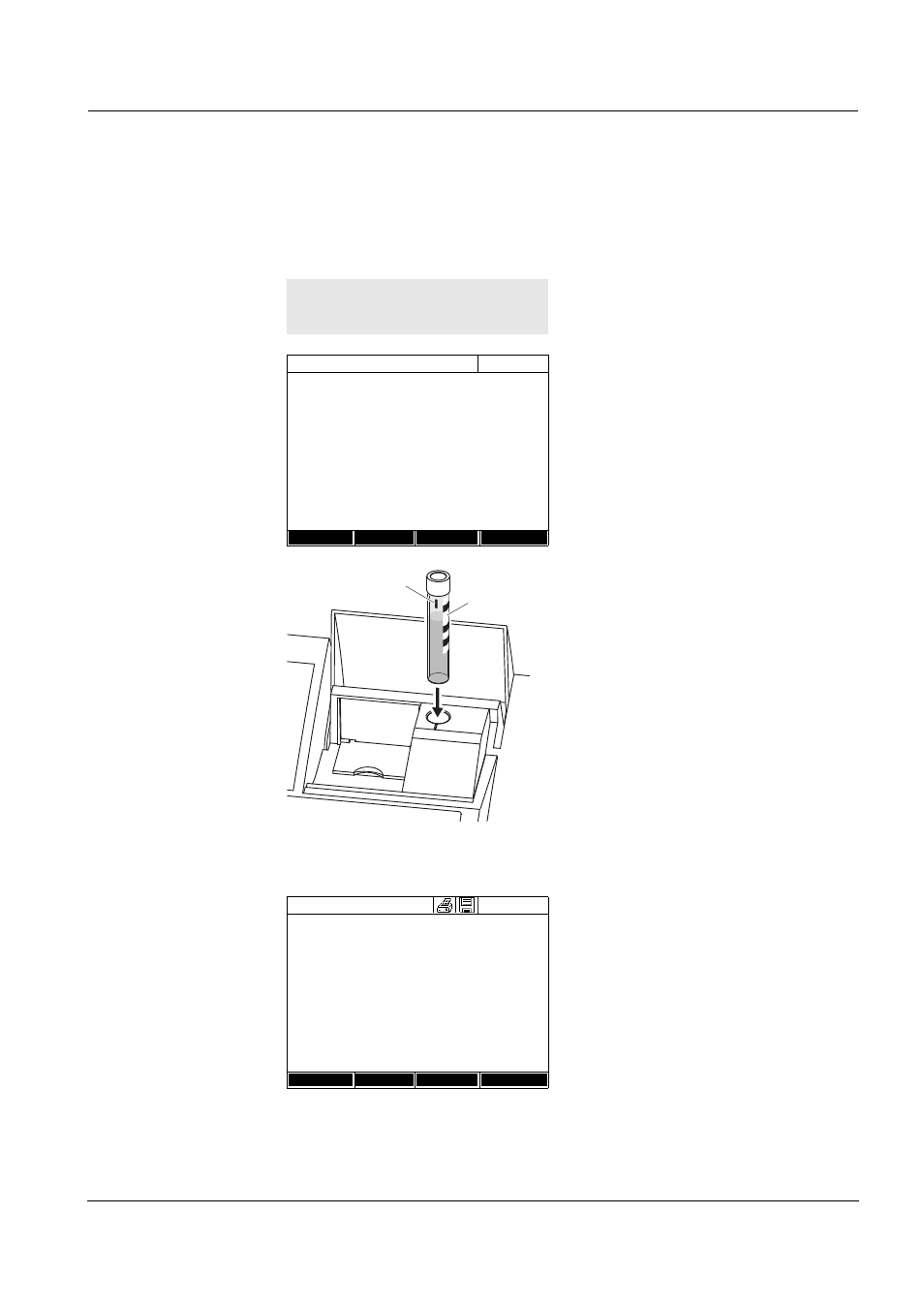

3 Insert the barcoded round cell in
the round cell shaft so it touches
the bottom. When doing so, align
the line mark with the notch at the
front of the round cell shaft.
The photometer selects the
method based on the bar code
and automatically starts
measurement.
4 Further options:
– Select a different citation form
with [Citation form],
(e.g. NH
4
<–> NH
4
-N).
– Select a different measuring
unit with [Unit],
(e.g. mg/l <–> mmol/l).
– Make further settings such as
dilution or blank value
measurements with [Setup]
(see section 4.5.6).
Concentration
Concentration 04/16/07 9:52
Please select method for measuring
or insert a barcoded cell
or insert AutoSelector.
Setup Method list Last method New Method
Line mark
Barcode
Concentration 04/16/07 9:52
49
mg/l
18: C3/25 COD
16 mm 10 - 150 mg/l
Setup Method list Citation form Unit
