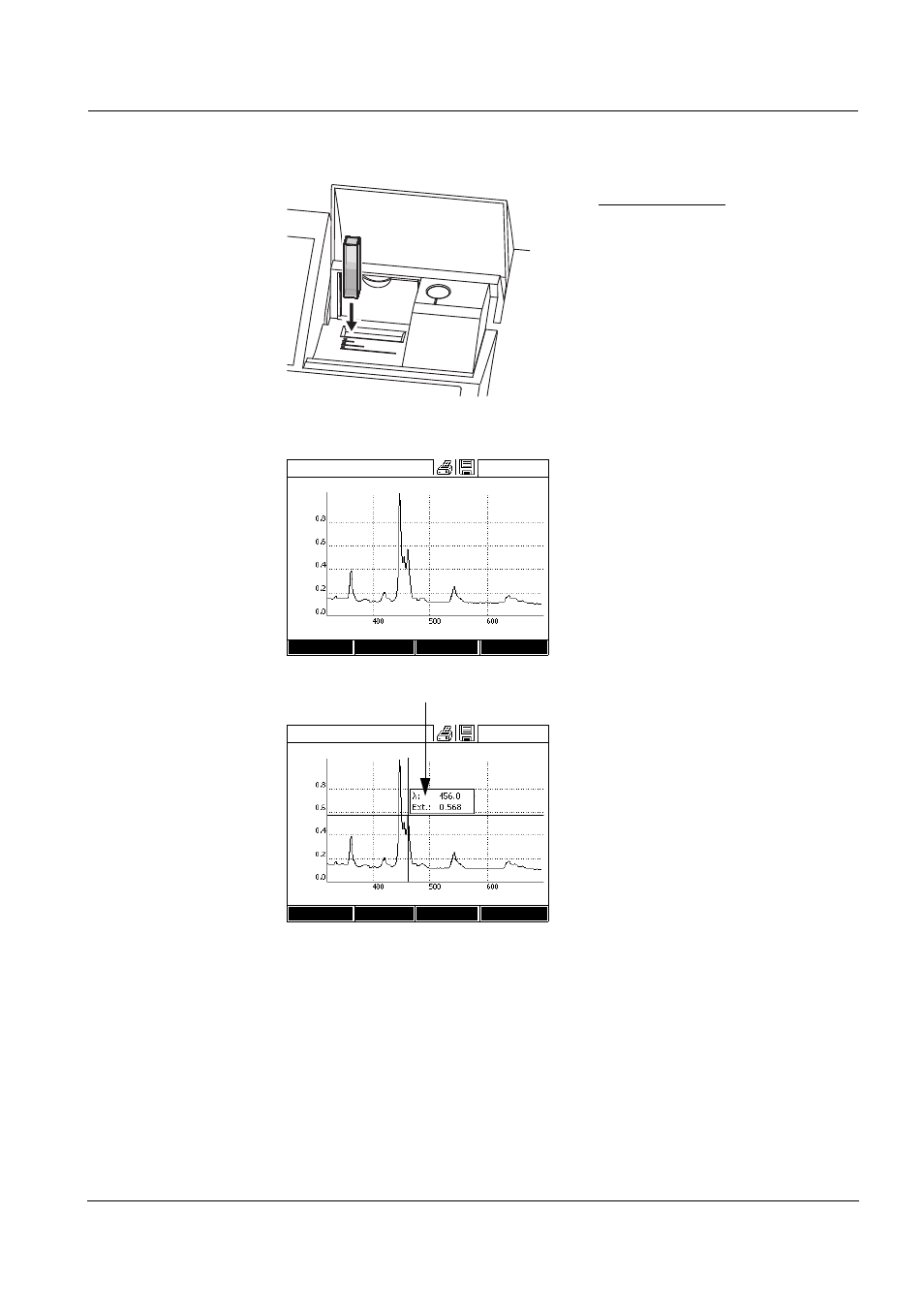

Rectangular cell:
Open the inner turn-up lid.
Insert the rectangular cell
vertically so it touches the bottom
and left edge of the cell shaft. The
opaque sides of the rectangular
cell must point to the front and
back.
9 Close the cell shaft cover.
10 Start the measurement with
.
11 Wait until the spectrum is
completely recorded.
At the end of the recording the
following message appears:
Recording of spectrum is
completed.
12 Confirm the message with
.
The cursor appears at the
absolute maximum of the
spectrum.
13 You have the following options:
- Immediately edit the spectrum
(see section 4.8.3)
- With , you can output
the spectrum to a connected
printer as a graphic.
- You can save the spectrum as a
*.csv file with . As the
storage location, you can select
the photometer (Internal DataB
folder) or a USB memory device
connected to the USB-A
connection (USB memory).
Stored spectra can be recalled
and edited at any time (see
section 4.8.3).
Spectrum 04/16/07 9:52
Wavelength [nm]
Setup Edit Zoom Open
Ab
so
rb
an
ce
Spectrum 04/16/07 9:52
Wavelength [nm]
Setup Edit Zoom Open
Ab
so
rb
anc
e
Cursor information
