1.2 Keypad
Overview
Key functions The keys on the right side of the keypad have the following functions:
1 Function keys F1 to F4 (function menu-depending)
2 Alphanumeric keypad
3 Keys with dedicated function

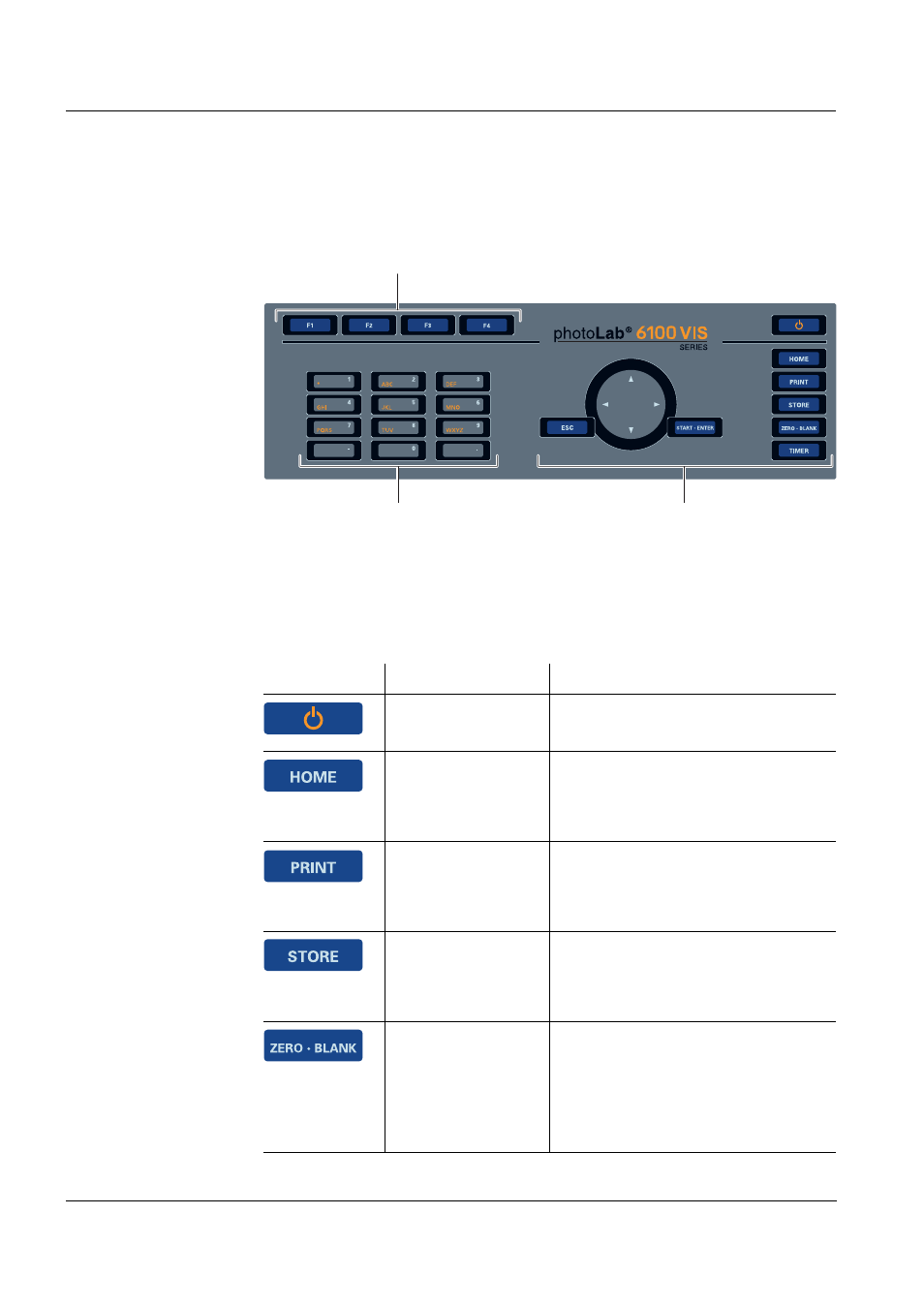

Fig. 1-3 Keypad
1
2 3
Key Designation Functions
– Switches on and off the
photometer.
– Switches to the main menu from
any operating situation. Actions
that are not completed are
canceled.
– Downloads the displayed mea-
sured value to an interface if the
Printer symbol is displayed in the
status line.
– Saves a displayed measured
value or spectrum if the Save
symbol is displayed in the status
line.
– Starts one of the following
measurements, depending on the
operating situation:
- Zero adjustment
- Blank value measurement
- Baseline measurement.
