Commissioning photoLab
®
6100 VIS
16 ba75847e01 08/2009
3.2.1 Inserting the buffer batteries
The buffer batteries supply the integrated clock while the photometer is
switched off. Four alkaline manganese batteries (type AA or Mignon)
separately included in the scope of delivery are used as the buffer batteries.
Insert the batteries as follows:
Battery service life The power consumption of the clock is very low. The lifetime of high quality
batteries is at least 5 years.

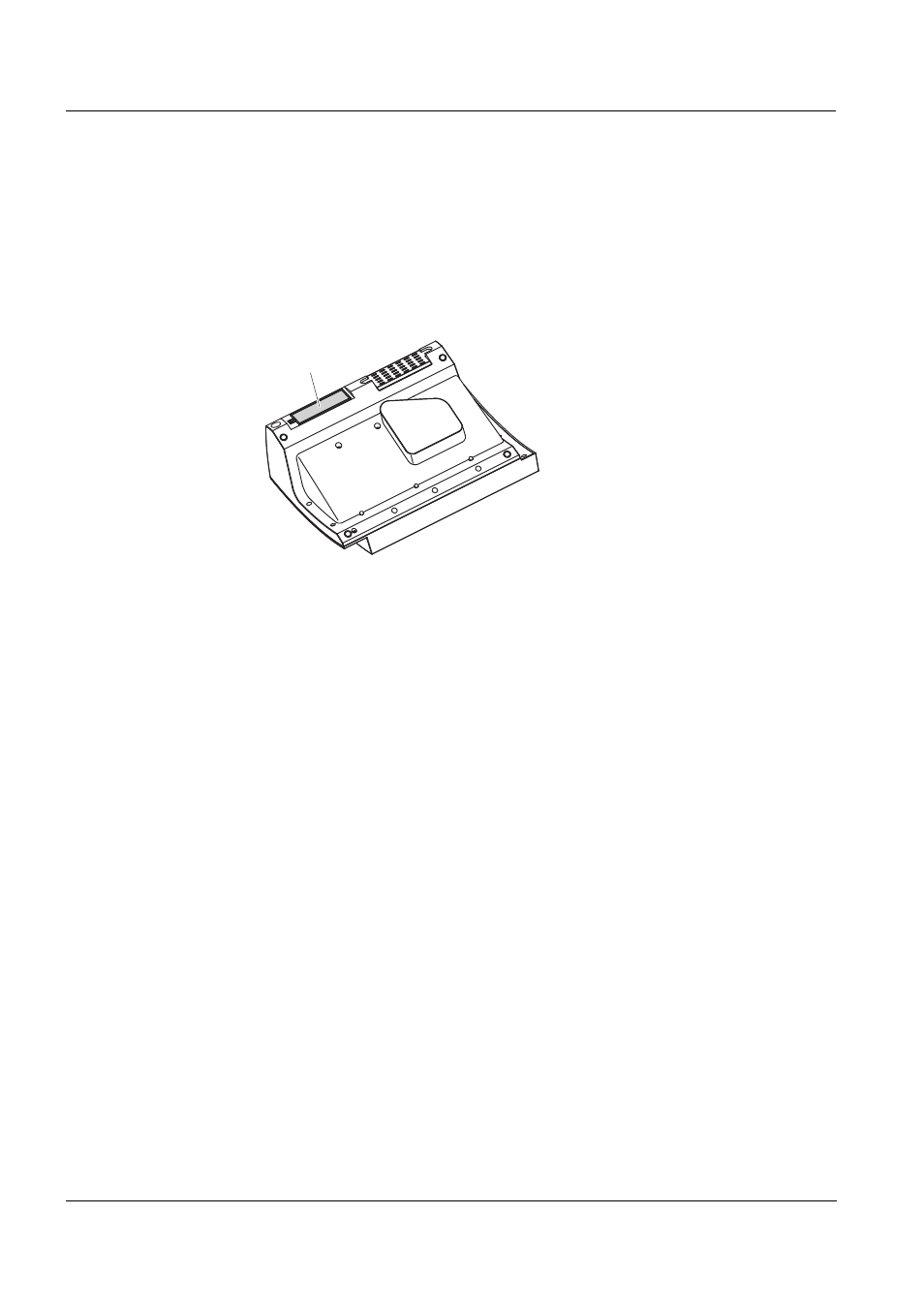

1 Turn the photometer upside down
and place it on a soft surface.
2 Open the lid of the battery
compartment (1).
3 Insert the four batteries in the
battery compartment. Make sure
that the poles of the batteries are
in the correct position.
The ± signs on the batteries must
correspond to the ± signs in the
battery compartment.
4 Close the lid of the battery
compartment.
1
