Display if the measured value is not within the measuring range (see section
4.5.4).
3 Open the inner turn-up lid.

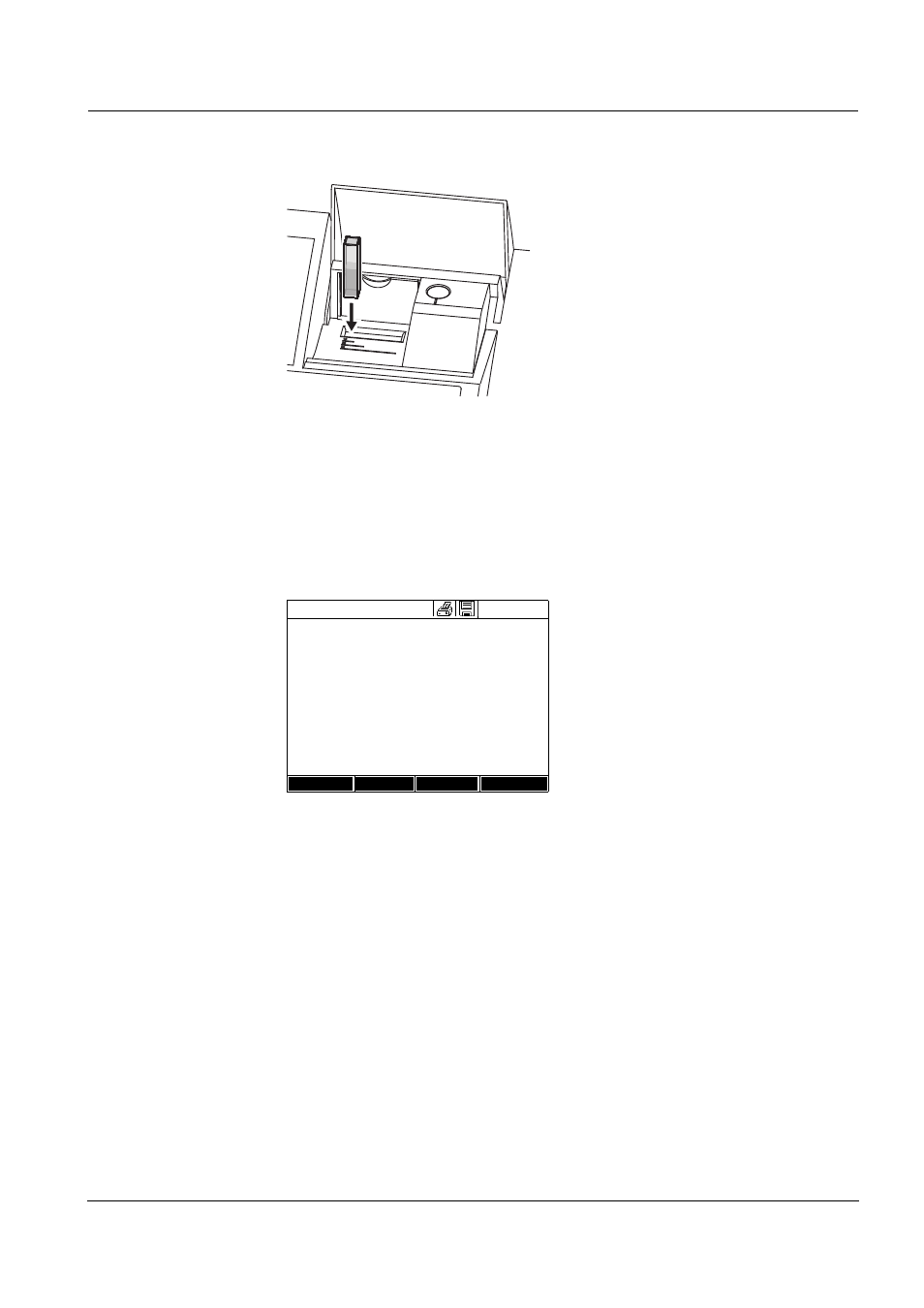

4 Insert the rectangular cell
vertically so it touches the bottom
and left edge of the cell shaft. The
opaque sides of the rectangular
cell must point to the front and
back.
The correct measuring range is
automatically selected when the
rectangular cell (1, 2, 5 cm) is
inserted.
The photometer has an external
light recognition. If there is too
much external light, a message
prompts you to close the cell shaft
cover.
The photometer starts measuring
automatically.
5 Further options:
– Select a different citation form
with [Citation form],
(e.g. NH
4
<–> NH
4
-N).
– Select a different measuring
unit with [Unit],
(e.g. mg/l <–> mmol/l).
– Make further settings such as
dilution or blank value
measurements with [Setup]
(see section 4.5.6).
Concentration 04/16/07 9:52
1.92
mg/l
18: 14752 NH
4
-N
10 mm 0.05 - 3.00 mg/l
Setup Method list Citation form Unit
