Zoom
1 Press [Zoom].

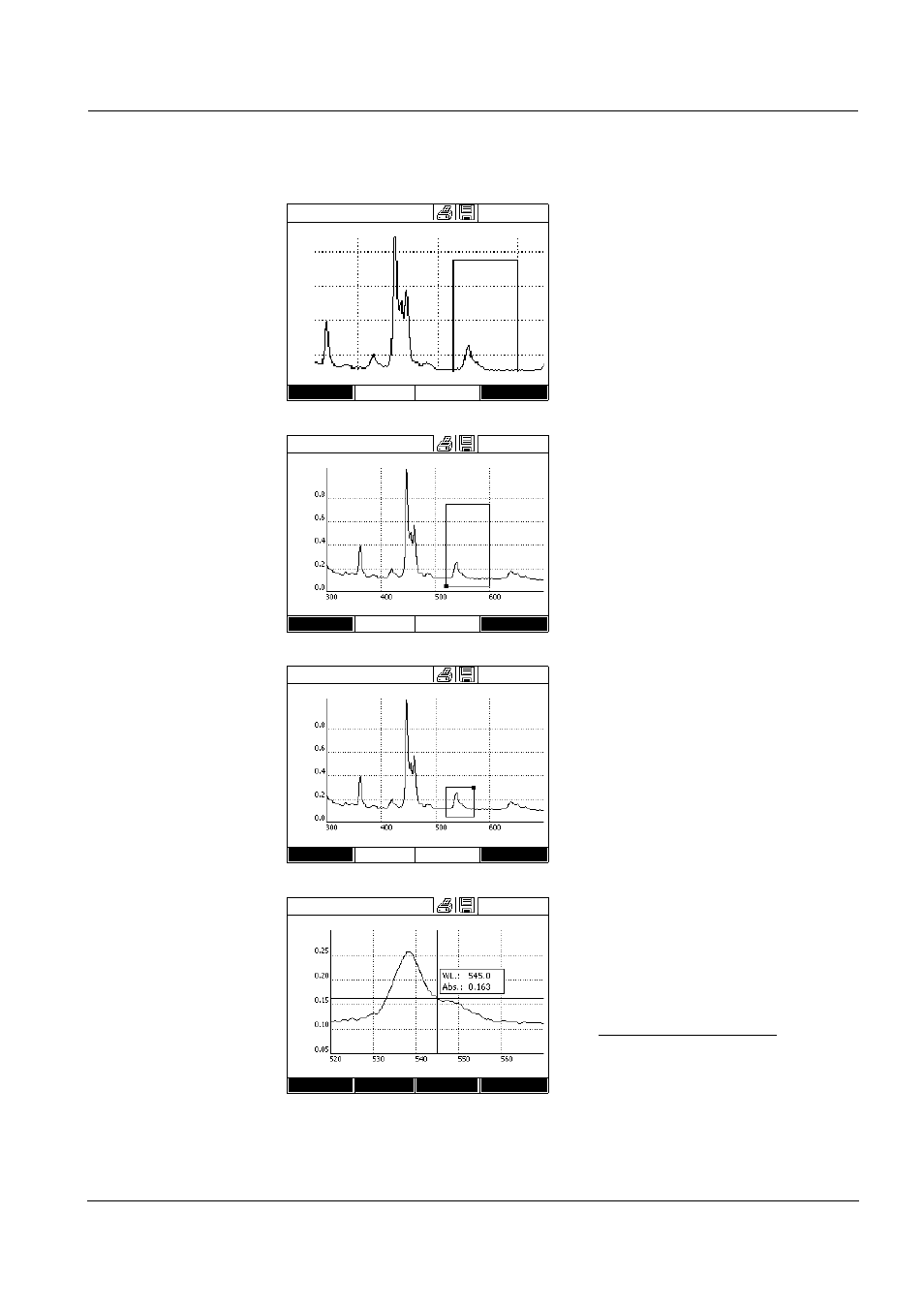

The zoom window appears. The
bottom left corner of the zoom
window is marked by a small black
square.
– You can return to the original
view of the spectrum with
[Original] at any time.
2 Adjusting the zoom window:
– Define the bottom left corner of
the zoom window with <
W><X>
and <
▲><▼>.
– Use [xy max] to mark the top
right corner of the zoom window
(small black square).
– Define the top right corner of the
zoom window with <
W><X>
and <
▲><▼>.
3 Scaling up the zoom window:
– Press the
key. The zoom window is scaled
up on the entire diagram area.
Leaving the zoom view:
– You can return to the original
view of the spectrum with
at any time.
