view the details of the log (actual date and time at the top of the window and specific values at
the far left of the window) at a given time move the cursors by dragging the sliding bars at the
top of the window.
The Save to USB button saves the demand log file to the USB drive. The Config button provides
setup information, such as the line colors and the order in which the data appear, for the

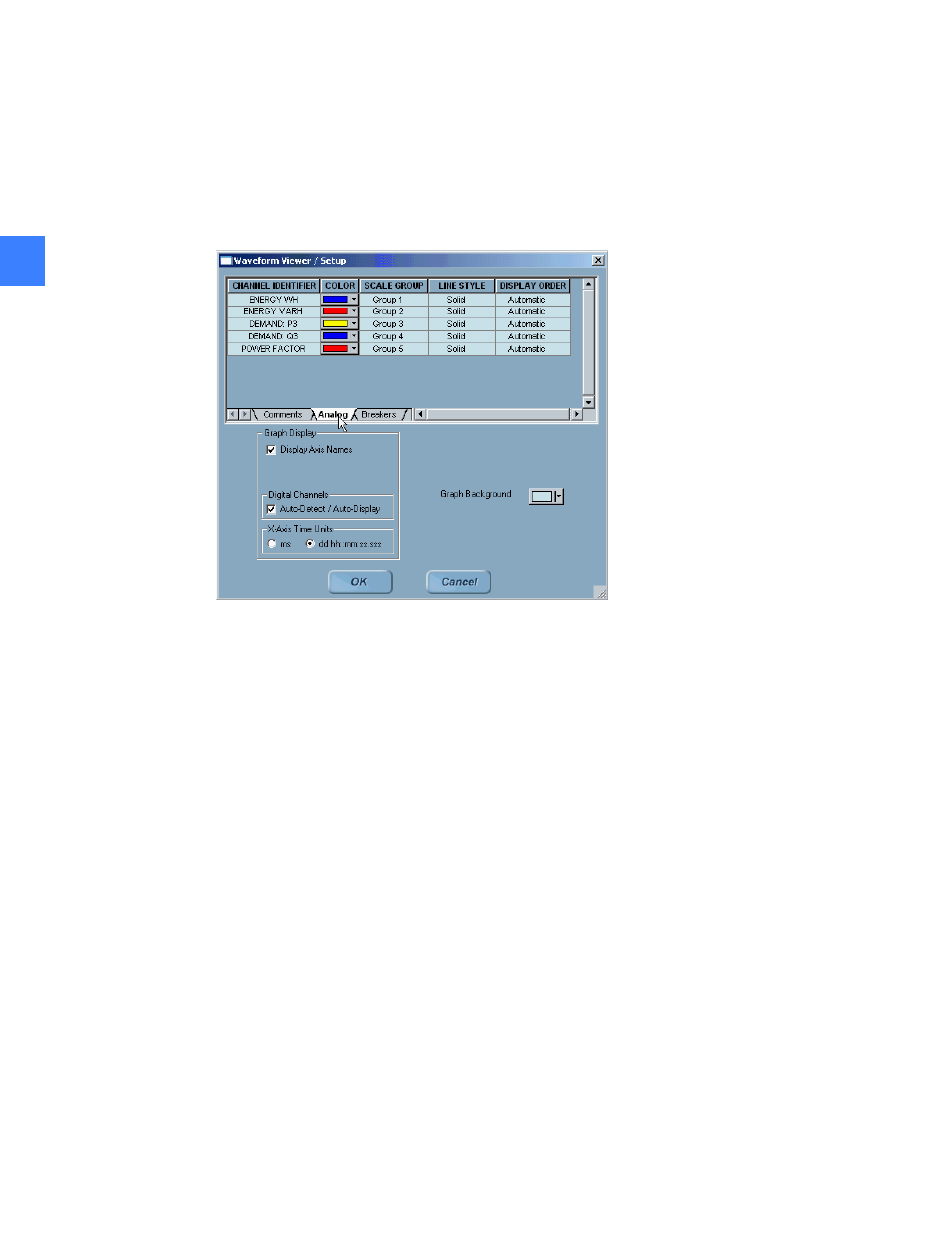

demand log viewer. A demand log viewer configuration file is shown in Figure 4-9.
Figure 4-9 Demand log viewer configuration
The Demand Metering screen provides buttons that reset the demand values and the demand
logs.
The Reset Demand button resets the demand for the circuit breaker that is currently being
viewed; the Reset All Bkrs button resets the demand for all circuit breakers.
The Clear Log button resets the demand log for the circuit breaker that is currently being
viewed; the Clear All Bkrs button resets the demand logs for all circuit breakers. Entellisys keeps
track of how many times the demands and the demand logs have been reset, as well as the
date and time of the last resets.
