Sequence of events, fault reports and waveform capture records 158
9

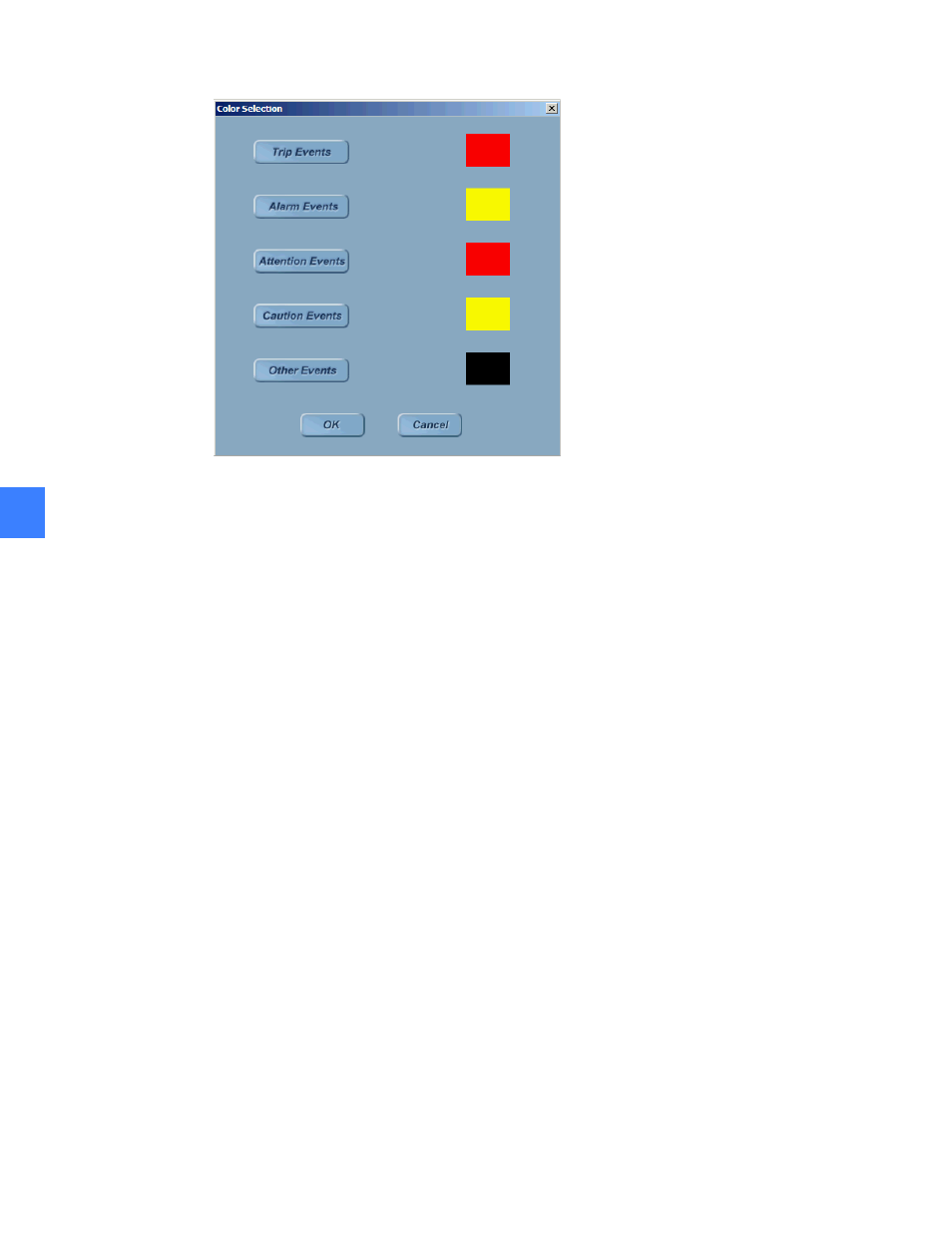

Figure 9-5 Event Category Colors
The categories are defined as follows:
Attention - An Entellisys issue that may potentially cause a future problem that should be
addressed at the next service interval
Caution - An Entellisys issue that is causing an immediate problem and should be
addressed immediately
Trip - A relay operation that tripped a breaker
Alarm - A power system event that caused a relay to exceed the alarm setting thresholds
Others - Conditions that occur during normal operation that are informative in nature
•
Protect/Overwrite – In Protect mode, the event logger stops recording events when the
maximum size of the daily log is reached. In Overwrite mode, the oldest events are
overwritten on a FIFO basis.
•
Event Log Size – Specifies the maximum size of the daily log.
•
Maximum Fault Reports – Specifies the point at which the HMI should stop automatically
retrieving Fault Reports in a given day.
•
Retention Days – Specifies the number of days to retain event records before they should be
automatically deleted to conserve disk space.
