DS2154
031197 66/69

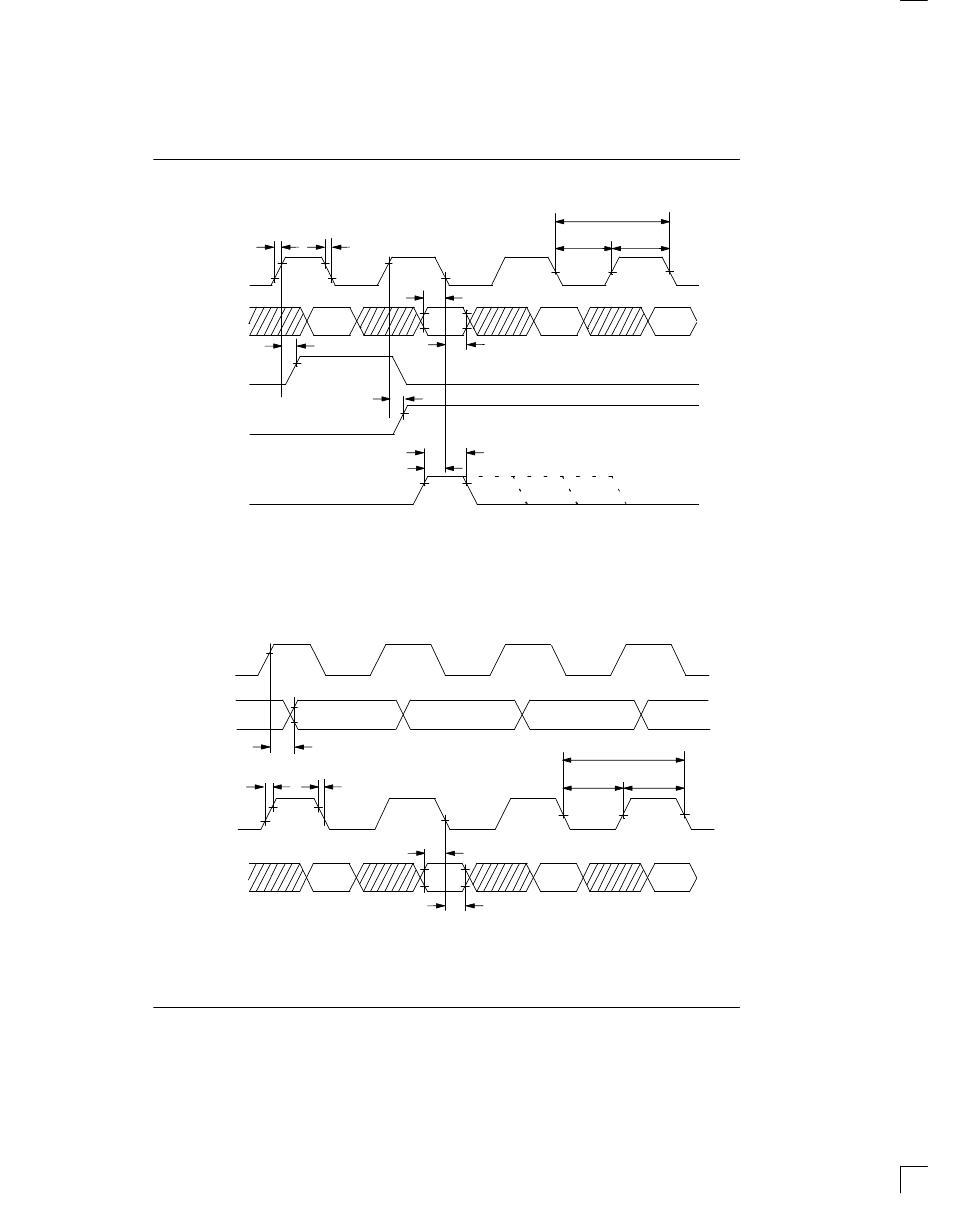

TRANSMIT SYSTEM SIDE AC TIMING Figure 14–8
t R t F
t SP
t SL t SH
t SU
t D3
t HD
t D3
t PW
t SU
TSYSCLK
TSER
TCHCLK
TCHBLK
TSSYNC
NOTES:
1. TSER is only sampled on the falling edge of TSYSCLK when the transmit side elastic store is enabled.
2. TCHCLK and TCHBLK are synchronous with TSYSCLK when the transmit side elastic store is enabled.
TRANSMIT LINE INTERFACE SIDE AC TIMING Figure 14–9
t R t F
t LP
t LL t LH
t SU
TCLKI
t DD
TCLKO
TPOSI, TNEGI
t HD
TPOSO, TNEGO
