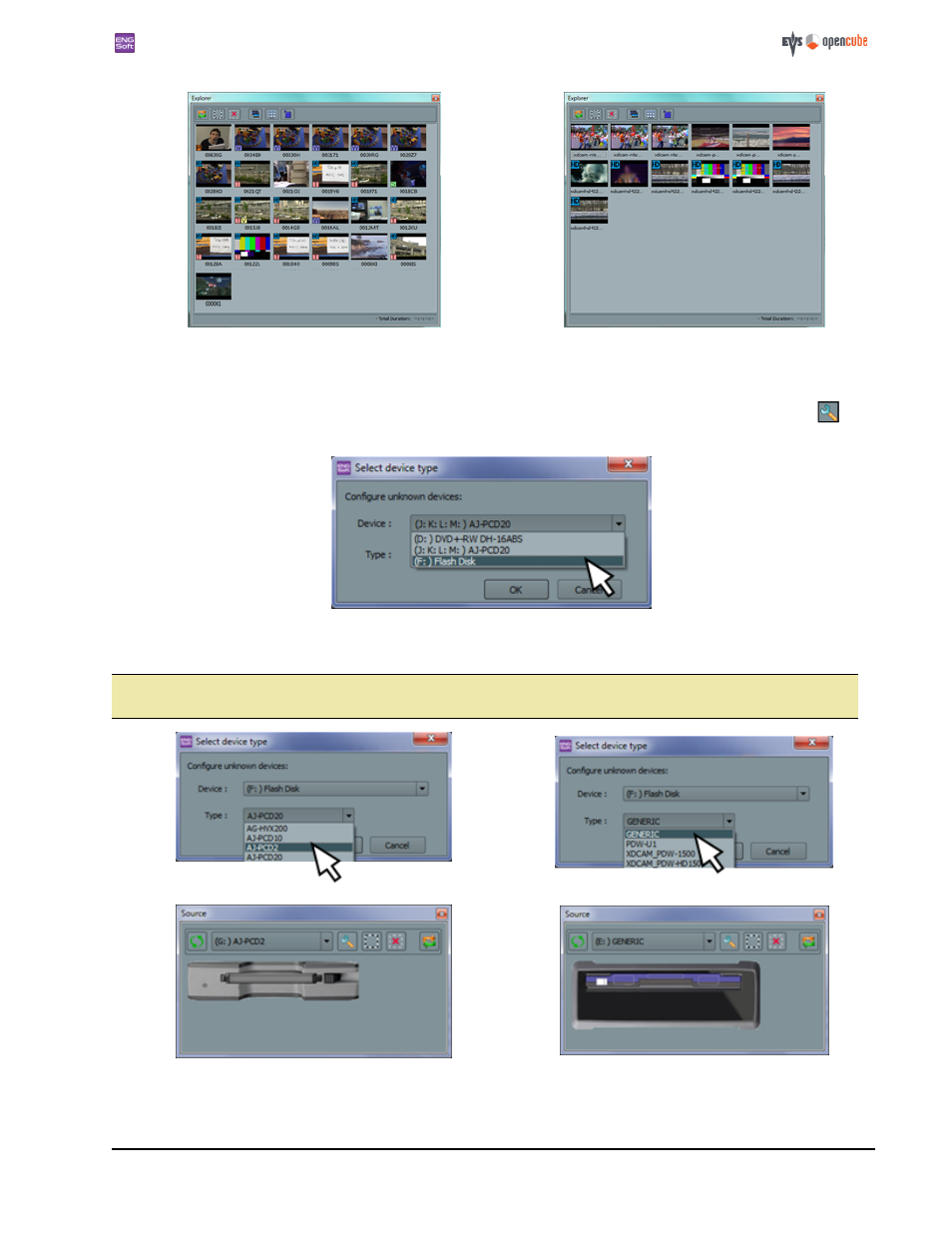

Figure 22: P2 content in the explorer module Figure 23: XDCAM content in the explorer module
10.3.1 Manual configuration
If your device is not listed in the combo box, you can configure the removable media manually by clicking on the but-
ton. The “Select device type” window is displayed.
Figure 24: Source Module - manual configuration
Choose one from among the unrecognized devices and assign it a type of device to emulate, and then click OK.
ê
The file system on the removable media must comply with that on the emulated device in order to work properly. For
example, a fully compliant CONTENTS folder must be present on a P2 emulated device as well.
Figure 25: Manual configuration P2 mode
Figure 26: Manual configuration XDCAM mode
Figure 27: Resulting emulated P2 device Figure 28: Resulting generic XDCAM device
