10.04.B XSense – Version 10.04 – Configuration Manual
EVS Broadcast Equipment – January 2011
38

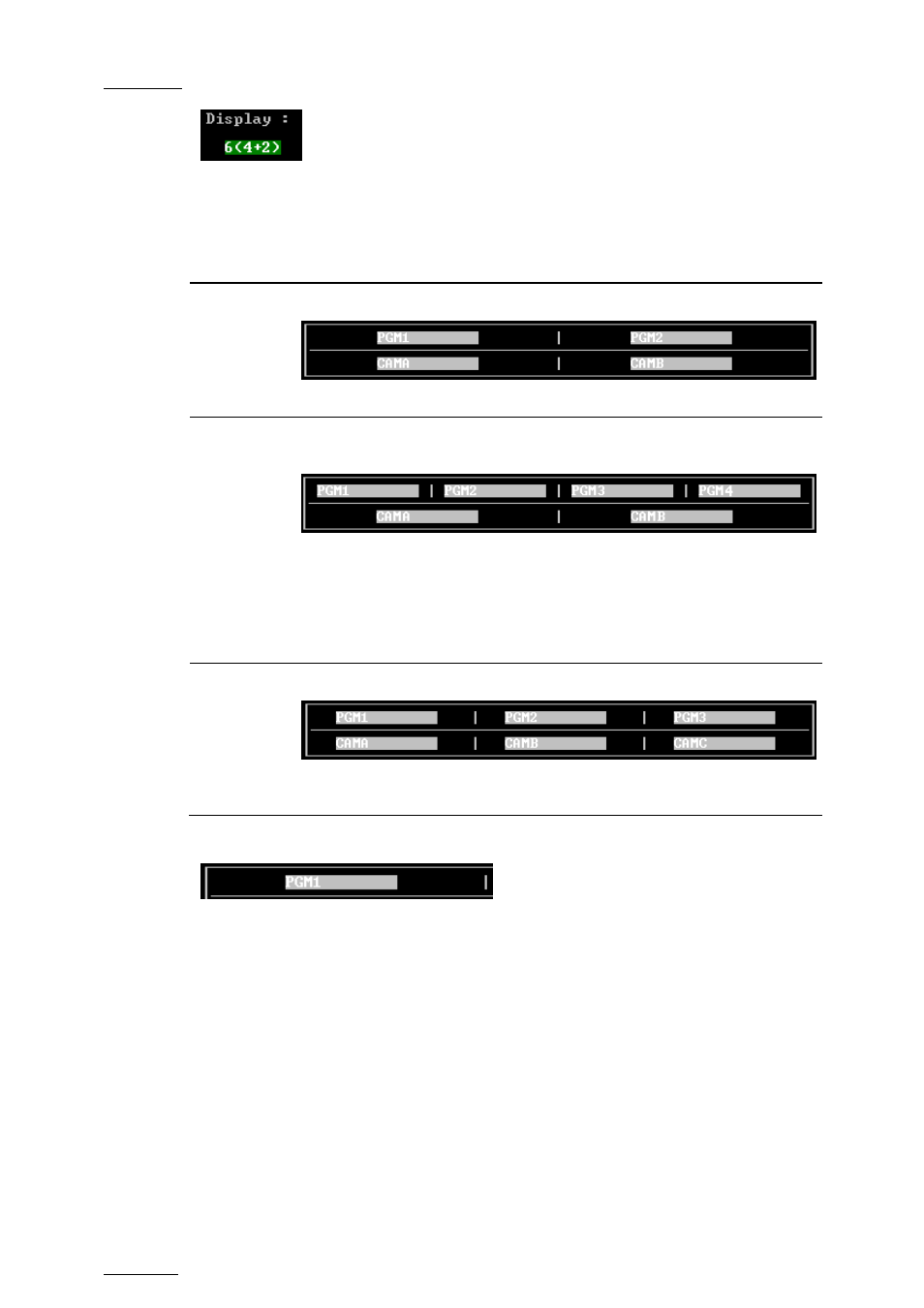

The selected composition is shown on the schema on the right. The following
compositions are possible:
Value Composition
4 (2+2) 2 split images at the top and 2 at the bottom.
This is the default composition for XT[2] 4U.
6 (4+2) 4 small split images at the top and 2 large split images at the bottom
of the screen.
This is impossible to display the same source in small and large
size. If the user has already set a small image at the top and tries to
set the same in a large size, the small one is automatically replaced
by ‘None’.
This is the default composition for XT[2] 6U in channel
configurations 4IN-2OUT or 4OUT-2IN.
6 (3+3) 3 split images at the top and 3 at the bottom.
This is the default composition for XT[2] 6U in other channel
configurations.
Displayed Channels
For each source, you need to specify which recorder channel (CAM A to CAM F
max.) or player channel (PGM1 to PGM6 max.) available in the current channel
configuration should be displayed. If you select ‘None’, no image is displayed.
A
UDIO
M
ONITORING
S
ETTINGS
In the Audio Monitoring from video field, you can select the channel for which
the audio can be monitored via the SDI outputs.
In the left-right track field, you can select the pair of stereo audio tracks of the
selected channel which should be monitored.
By default, the first stereo pair of the source displayed in the top left image is
selected.
