2.8 HCTX GIGABIT CONNECTION SETTINGS
(PAGE 6)
2.8.1 I
NTRODUCTION

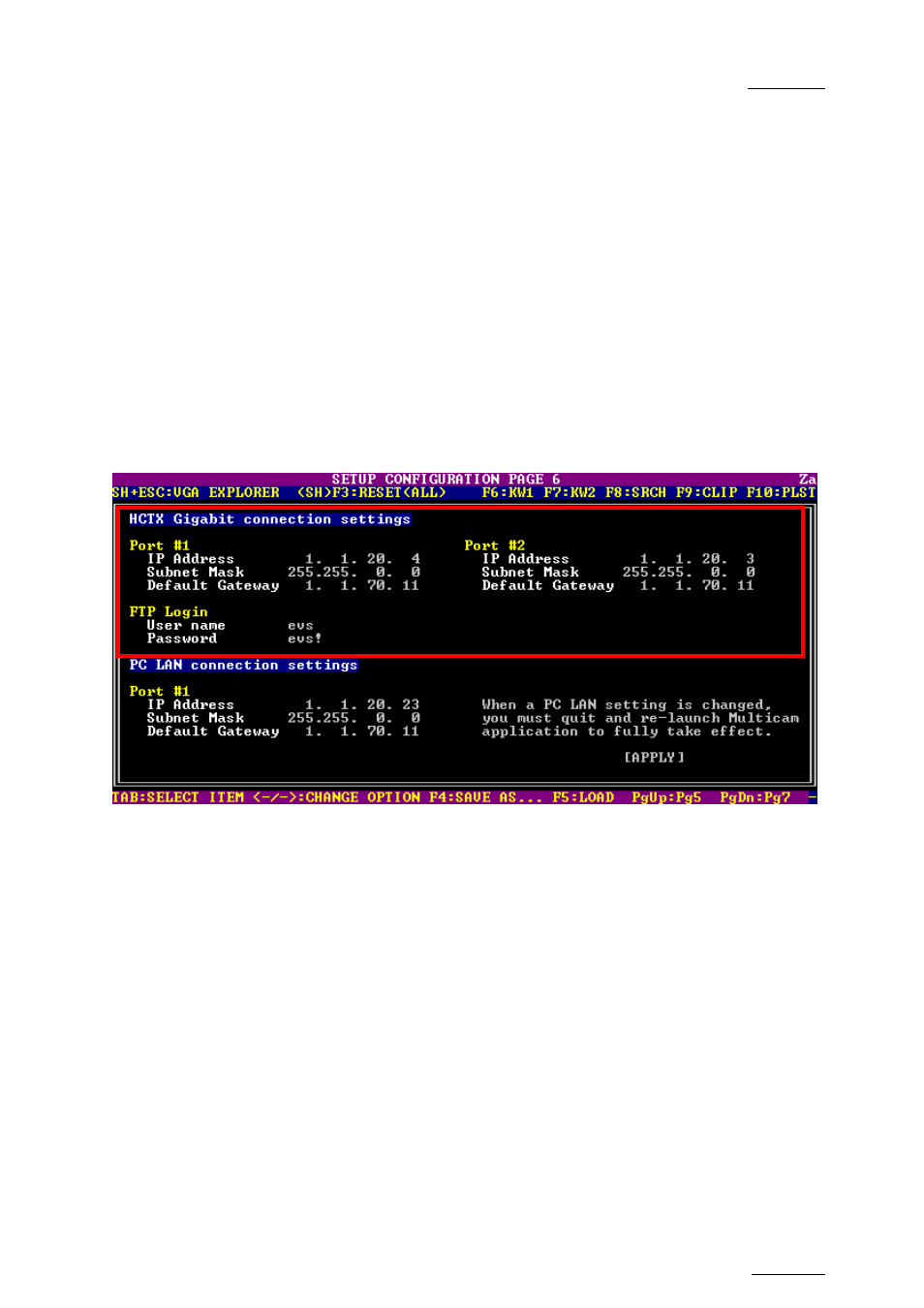

In the Setup Configuration module (SHIFT-F2), press the Page Down key until you
access the page 6. It displays the connection parameters for the HCTX board and
the MTPC board.
From Multicam 9, the servers support a Gigabit Ethernet connection. It allows the
backup of the audio and video data without going through the SDTI network.
The Gigabit connection is provided via the HCTX board. Its backplane is equipped
with two Gigabit Ethernet ports. The settings need to be defined on at least one
port for the server to be able to operate the Ethernet connection.
