T
IMECODE
T
YPE
U
SED ON A
R
ECORDER

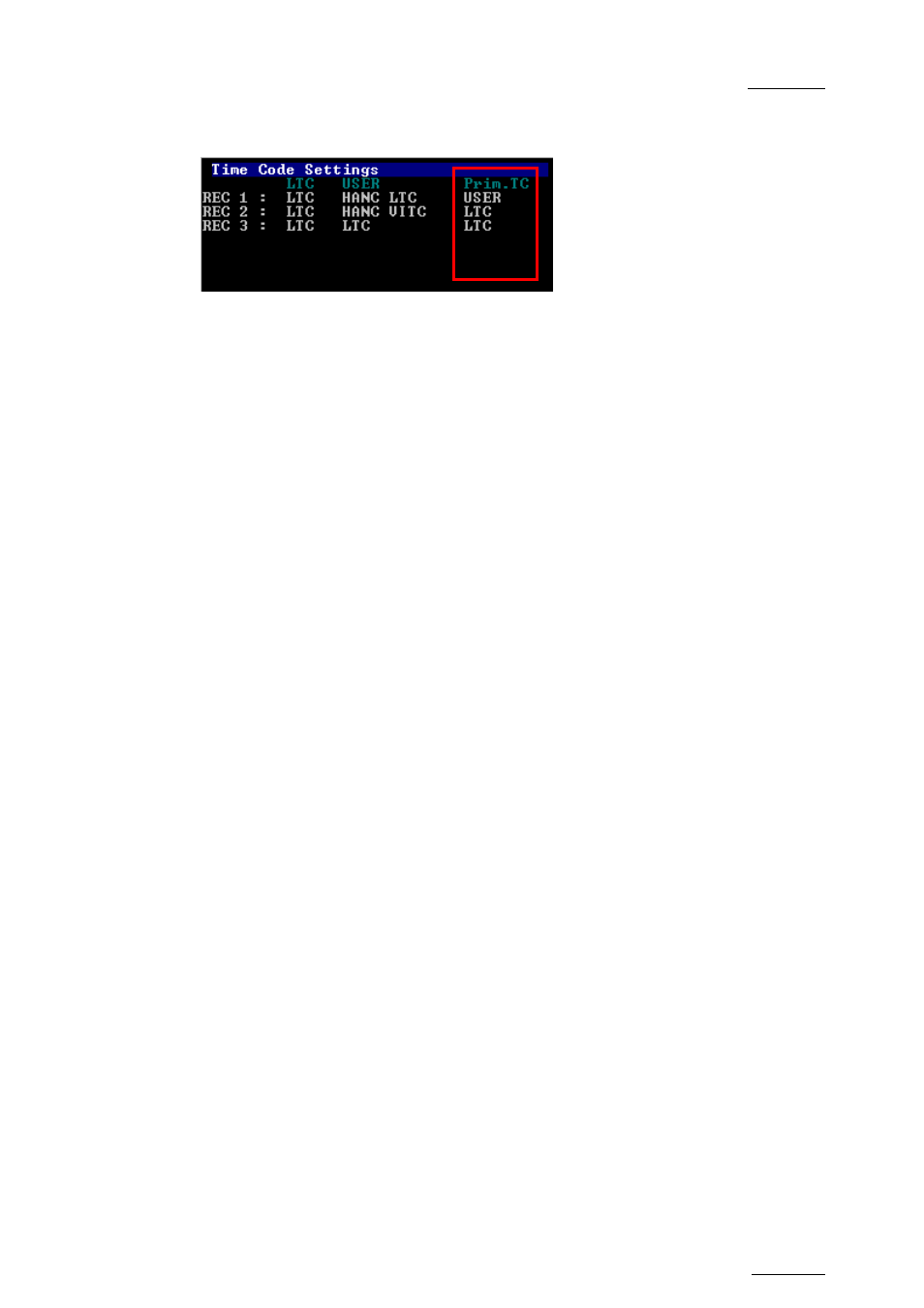

On the first page of the VGA Setup screen, the Prim. TC field (Primary TC)
specifies which timecode type will be displayed at the bottom the VGA and will be
used to work with the video material stored on the given recorder.
Possible Values
The values can be the following:
• LTC LTC timecode, which is automatically stored in the LTC table. It is
specified in the LTC field
• USER User-defined timecode, which is stored in the USER TC table and
specified in the USER field.
Timecode Color on the OSD
Depending on the value selected for this setting, the timecode displayed at the
bottom of the user’s OSD will have a different color:
• If the LTC timecode is selected, the timecode color will be white.
• If the USER timecode is selected, the timecode color will be yellow.
H
OW TO
S
ETUP THE
P
RIMARY
TC
AND
U
SER
F
IELDS
To set up the primary TC or VITC field, proceed as follows:
1. Press SHIFT-F2 to open the Setup screen.
2. Use the <TAB> key to position the cursor on the field to edit.
3. Use the right and left arrows to go through the possible values for that field.
The value defined when you leave the field will be saved.
