XSense – Version 10.04 – Configuration Manual
EVS Broadcast Equipment – January 2011
Issue
10.04.B
21
Setting Description
GPI Delay Number of seconds and/or frames that the server will wait
after receiving the GPI IN signal to execute the GPI-related
function. The default value is ‘disabled’.
The following information is defined for each individual GPI OUT:
Setting Description
# GPI number
Function Operation that will trigger the GPI OUT. The GPI OUT can be
defined with the following function:
• Replace function

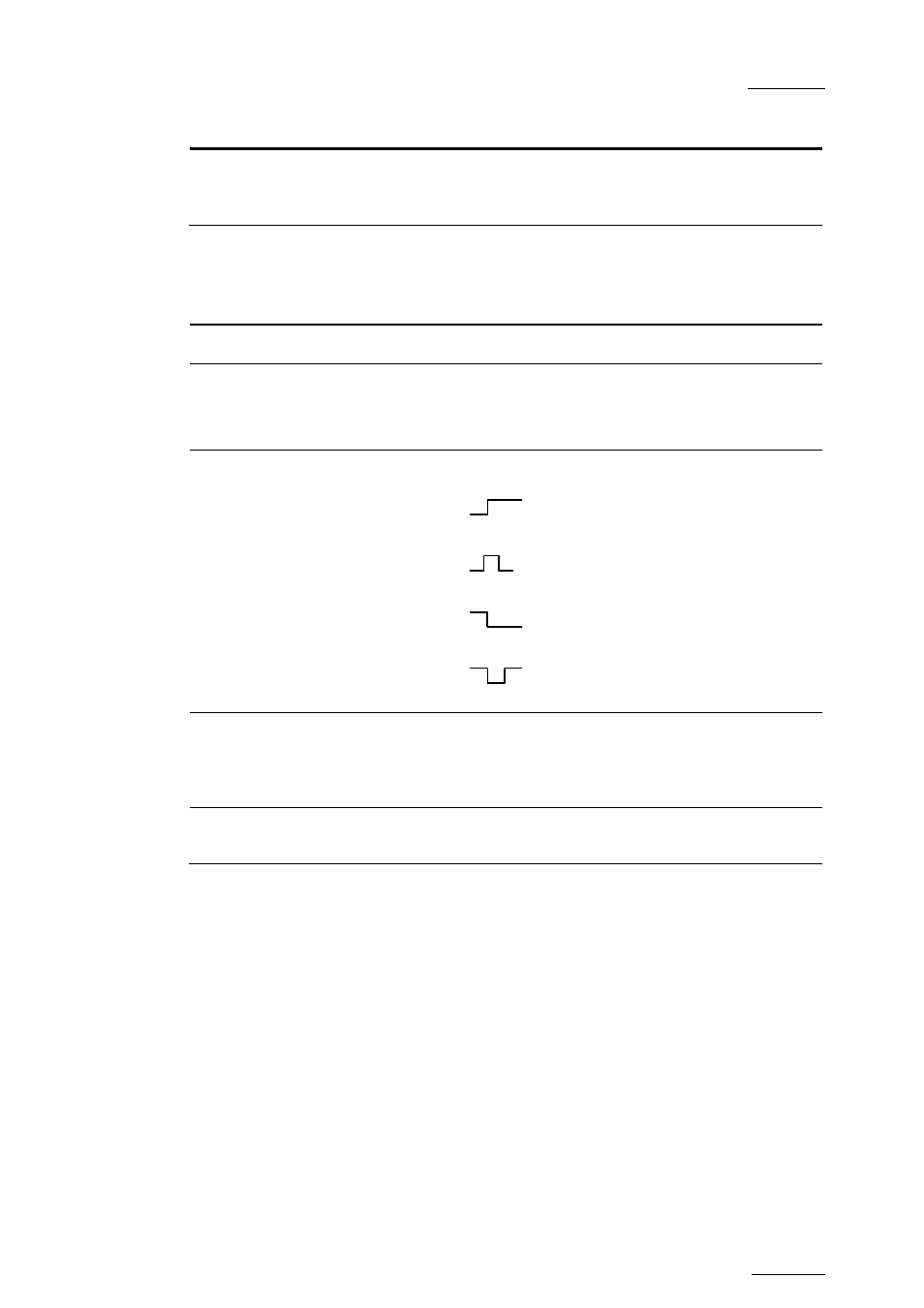

Type Type of GPI signal. Four types are possible:
Close-High The trigger is done when the
level changes to high level
Close-High
Pulse The trigger is done on a rising
edge pulse
Open-Low The trigger is done when the
level changes to low level
Open-Low
Pulse
The trigger is done on a falling
edge pulse.
GPI OUT
advance Number of seconds and/or frames ahead of the timecode (on
which a GPI is defined) corresponding to the time when the
GPI OUT will be sent by the server. The default value is
‘disabled’.
GPI Pulse
Duration The pulse duration needs to be defined for pulse signals.
The default value is ‘disabled’.
2.6.3 H
OW TO
M
ODIFY THE
T
YPE OF
TTL GPI
S
To modify the type of TTL GPIs, proceed as follows:
1. Press the key to select the field on the first line of Page 4.
2. Press the ←and → arrows to change the value.
Depending on the type defined, the lines 5 to 8 will automatically move from one
GPI section to the other.
For more information on the GPI IN settings, refer to section on the GPI IN
settings in the Setup menu chapter of the Multicam user manual.
