190-00763-01 Rev. A Garmin G1000 Pilot’s Guide for the Piper PA-46 Meridian 67
FLIGHT INSTRUMENTS
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EICAS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL
FEA
TURES
APPENDICES
INDEX
COURSE DEVIATION INDICATOR (CDI)
The Course Deviation Indicator (CDI) moves left or right from the course pointer along a lateral deviation
scale to display aircraft position relative to the course. If the course deviation data is not valid, the CDI is not
displayed.

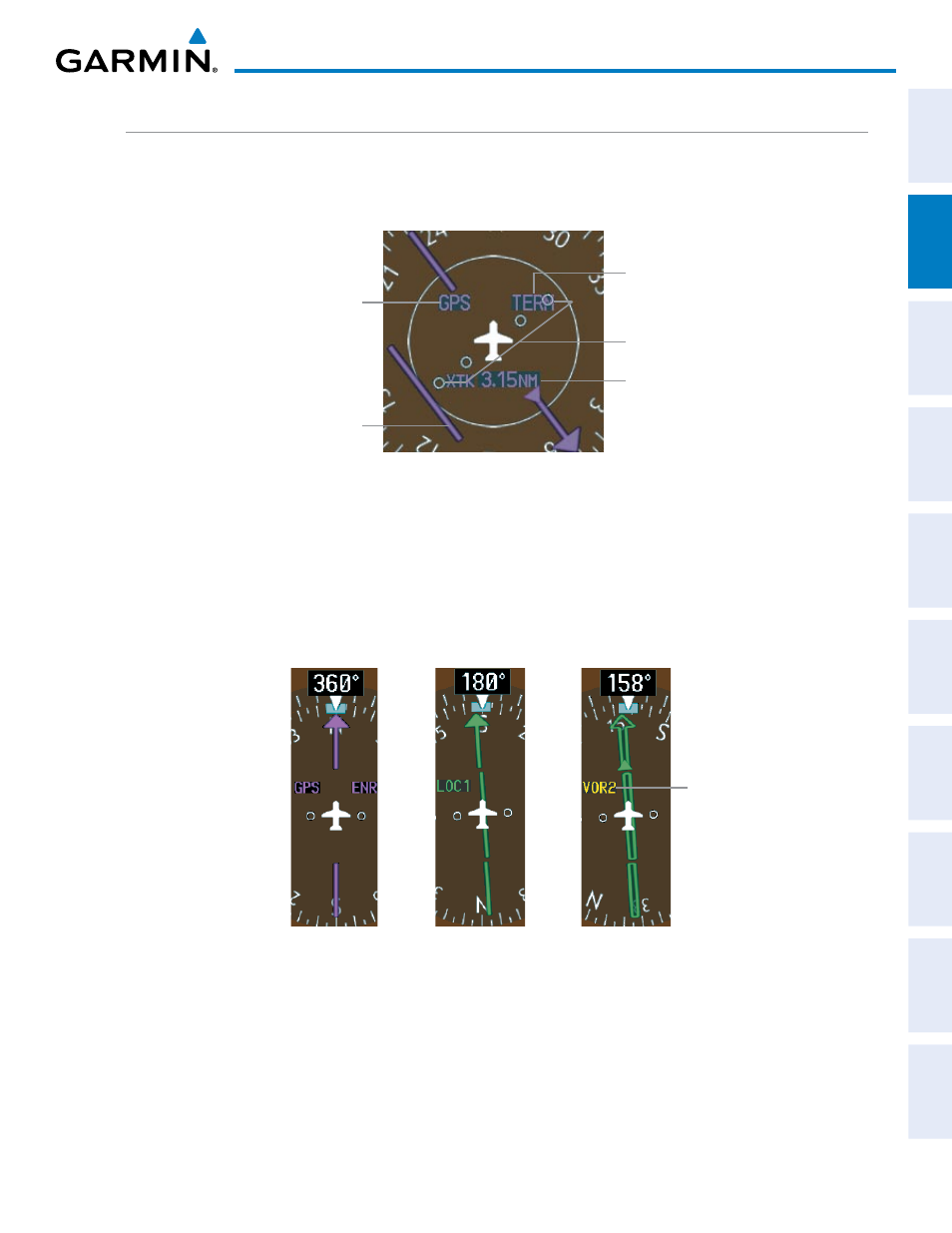

Figure 2-22 Course Deviation Indicator
Flight
Phase
Scale
Crosstrack
Error
Navigation
Source
CDI
The CDI can display two sources of navigation: GPS or NAV (VOR, localizer). Color indicates the current
navigation source: magenta (for GPS) or green (for VOR and LOC). The full scale limits for the CDI are
defined by a GPS-derived distance when navigating with GPS. When navigating using a VOR or localizer
(LOC), the CDI has the same angular limits as a mechanical CDI. If the CDI exceeds the maximum deviation
on the scale (two dots) while navigating with GPS, the crosstrack error (XTK) is displayed below the white
aircraft symbol.
Navigation
Source
Selected on
Both PFDs
Figure 2-23 Navigation Sources
