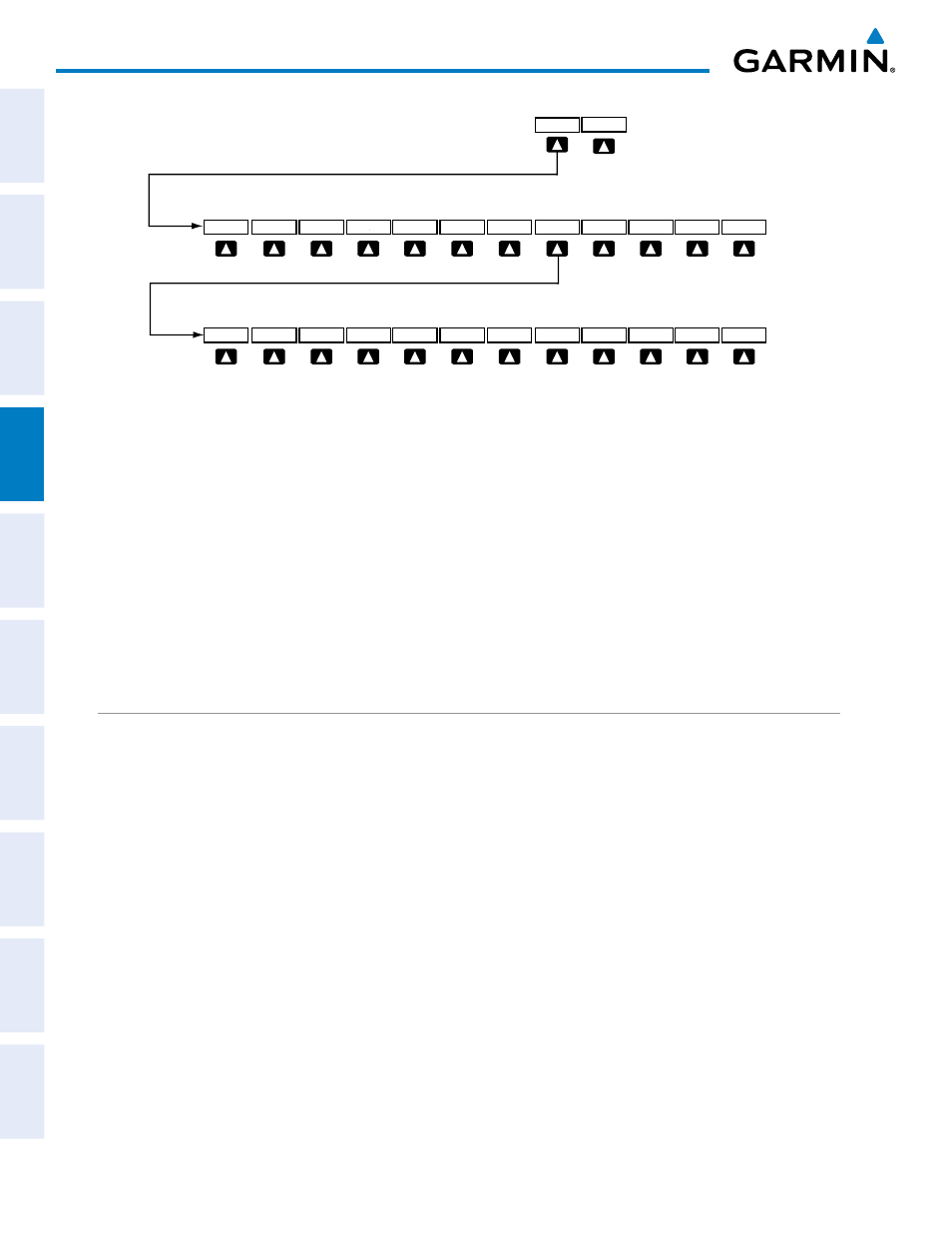

Figure 4-33 Transponder Softkeys (PFD)
Selecting the BACK Softkey
returns to the top-level softkeys.
Selecting the BACK Softkey returns to the mode selection softkeys.
MSG
MSG BACK BKSP IDENT 7 6 5 4 3 2 1 0
STBY ON ALT VFR CODE IDENT BACK
XPDR
GND
IDENT
XPDR1 XPDR2
Selecting and activating Transponder 1 or Transponder 2 (Optional):
1) Select the XPDR Softkey to display the Transponder Mode Selection Softkeys.
2) Select the XPDR1 or XPDR2 Softkey to select and activate the other transponder.
When turning on the G1000 for use, the system activates Transponder 1 as the default unit, regardless of
which transponder was active prior to shutdown. When switching between Transponder 1 and Transponder 2,
the code and mode remain the same. If a new code is entered in the active transponder, switching transponders
does not bring back the previous code.
TRANSPONDER MODE SELECTION
Mode selection can be automatic (Ground and Altitude Modes) or manual (Standby, ON, and Altitude Modes).
The STBY, ON , and ALT Softkeys can be accessed by selecting the XPDR Softkey.
Selecting a transponder mode:
1) Select the XPDR Softkey to display the Transponder Mode Selection Softkeys.
2) Select the desired softkey to activate the transponder mode.
