190-00763-01 Rev. A Garmin G1000 Pilot’s Guide for the Piper PA-46 Meridian 65
FLIGHT INSTRUMENTS
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EICAS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL
FEA
TURES
APPENDICES
INDEX
BEARING POINTERS AND INFORMATION WINDOWS
NOTE: ADF radio installation is optional.
Two bearing pointers and associated information can be displayed on the HSI for NAV, GPS, and ADF
sources. The pointers are light blue and are single- (BRG1) or double-lined (BRG2); an icon is shown in the
respective information window to indicate the pointer type. The bearing pointers never override the CDI
and are visually separated from the CDI by a white ring (shown when bearing pointers are selected but not
necessarily visible due to data unavailability).

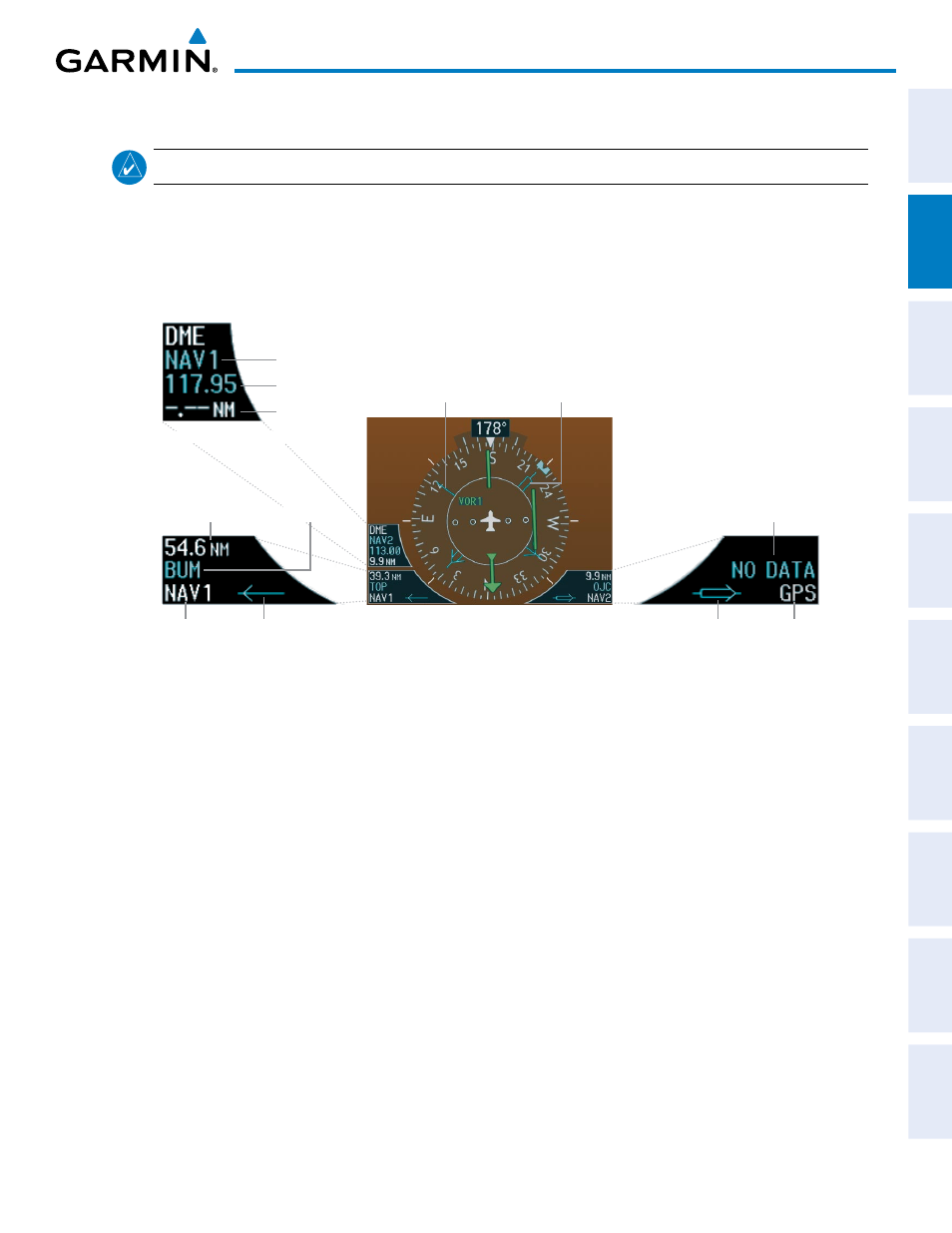

Figure 2-21 HSI with Bearing and DME Information
Bearing 2 Information Window
No
Waypoint
Selected
Pointer
Icon
Bearing
Source
Bearing 1 Information Window
Pointer
Icon
Distance to
Bearing Source
Bearing
Source
Bearing 2
Pointer
Bearing 1
Pointer
Frequency
Tuning Mode
Distance
Station
Identifier
DME Information Window
When a bearing pointer is displayed, its associated information window is also displayed. The Bearing
Information windows (Figure 2-21) are displayed to the lower sides of the HSI and show:
• Bearing source (NAV, GPS, ADF)
• Pointer icon (single line for BRG1, double line for BRG2)
• Frequency (NAV, ADF)
• Station/waypoint identifier (NAV, GPS)
• GPS-derived great circle distance to bearing source
