190-00763-01 Rev. A Garmin G1000 Pilot’s Guide for the Piper PA-46 Meridian 307
HAZARD AVOIDANCE
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EICAS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL
FEA
TURES
APPENDICES
INDEX
The display of radar coverage is always active when either NEXRAD or ECHO TOPS is selected. Areas
where NEXRAD radar coverage and Echo Tops information is not currently available or is not being collected
are indicated in grayish-purple. Radar capability exists in these areas, but it is not active or is off-line.
CLOUD TOPS
NOTE: Cloud Tops and Echo Tops cannot be displayed at the same time.
Cloud Tops data depicts cloud top altitudes as determined from satellite imagery.

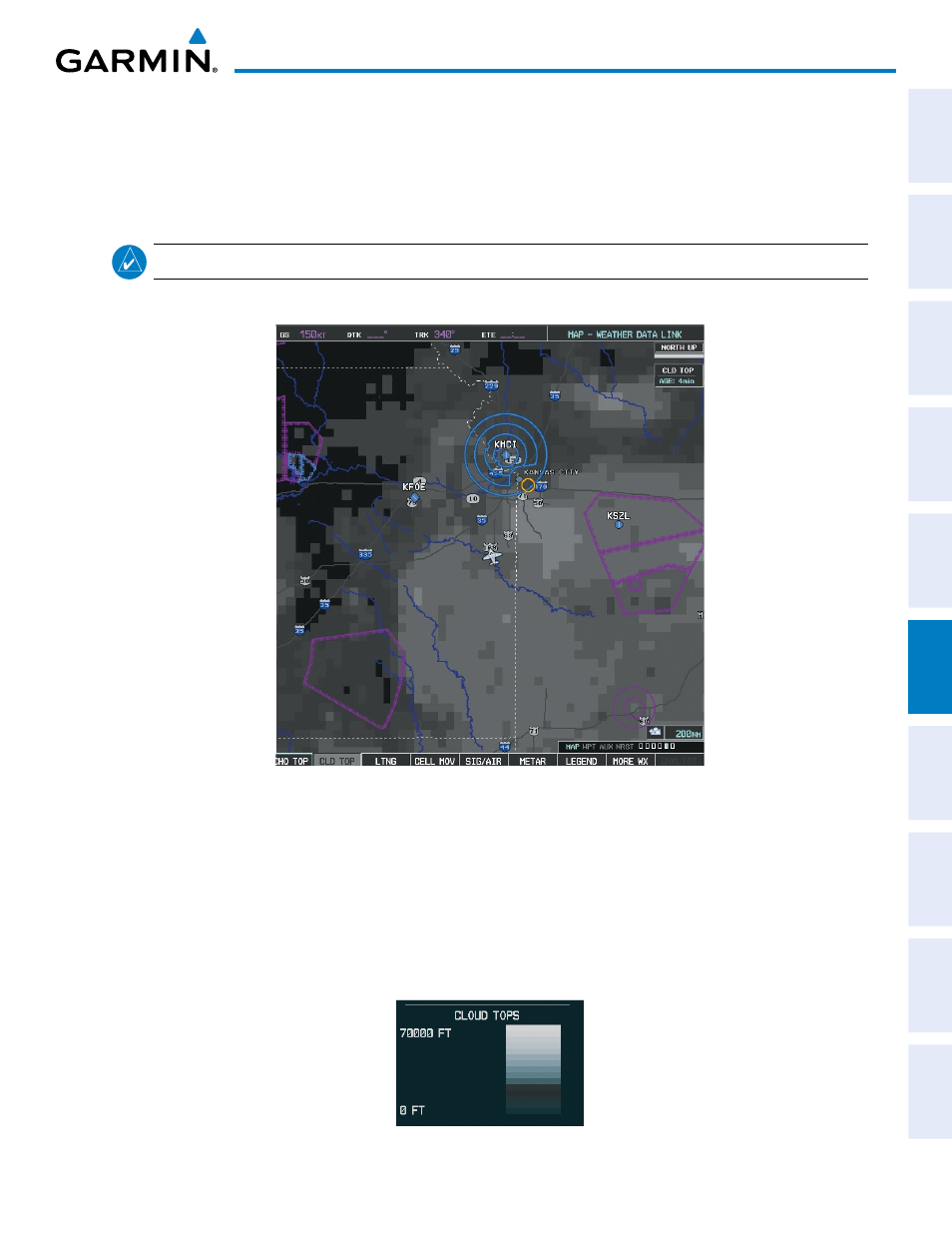

Figure 6-15 Cloud Tops Data
Displaying Cloud Tops information:
1) Select the Weather Data Link Page with the FMS Knob.
2) Select the CLD TOP Softkey.
To display the Cloud Tops legend, select the LEGEND Softkey when Cloud Tops is selected for display.
Since Cloud Tops and Echo Tops use the same color scaling to represent altitude, display of these weather
products is mutually exclusive. When Cloud Tops is activated, Echo Tops data is removed.
Figure 6-16 Cloud Tops Legend
