4) Turn the small FMS Knob to select the Traffic Group and press the ENT Key (Figure 6-96).
5) Turn the large FMS Knob or press the ENT Key to scroll though the selections (Figure 6-97).
• TRAFFIC – Turns the display of traffic data on or off
• TRAFFIC MODE – Selects the traffic mode for display; select from:
- All Traffic - Displays all traffic
- TA/PA - Displays Traffic Alerts and Proximity Advisories
- TA ONLY - Displays Traffic Alerts only
• TRAFFIC SMBL – Selects the maximum range at which traffic symbols are shown
• TRAFFIC LBL – Selects the maximum range at which traffic labels are shown with the option to turn off
6) Turn the small FMS Knob to scroll though options (ON/OFF, range settings, etc.).
7) Press the ENT Key to select an option.
8) Press the FMS Knob or CLR Key to return to the Navigation Map Page.

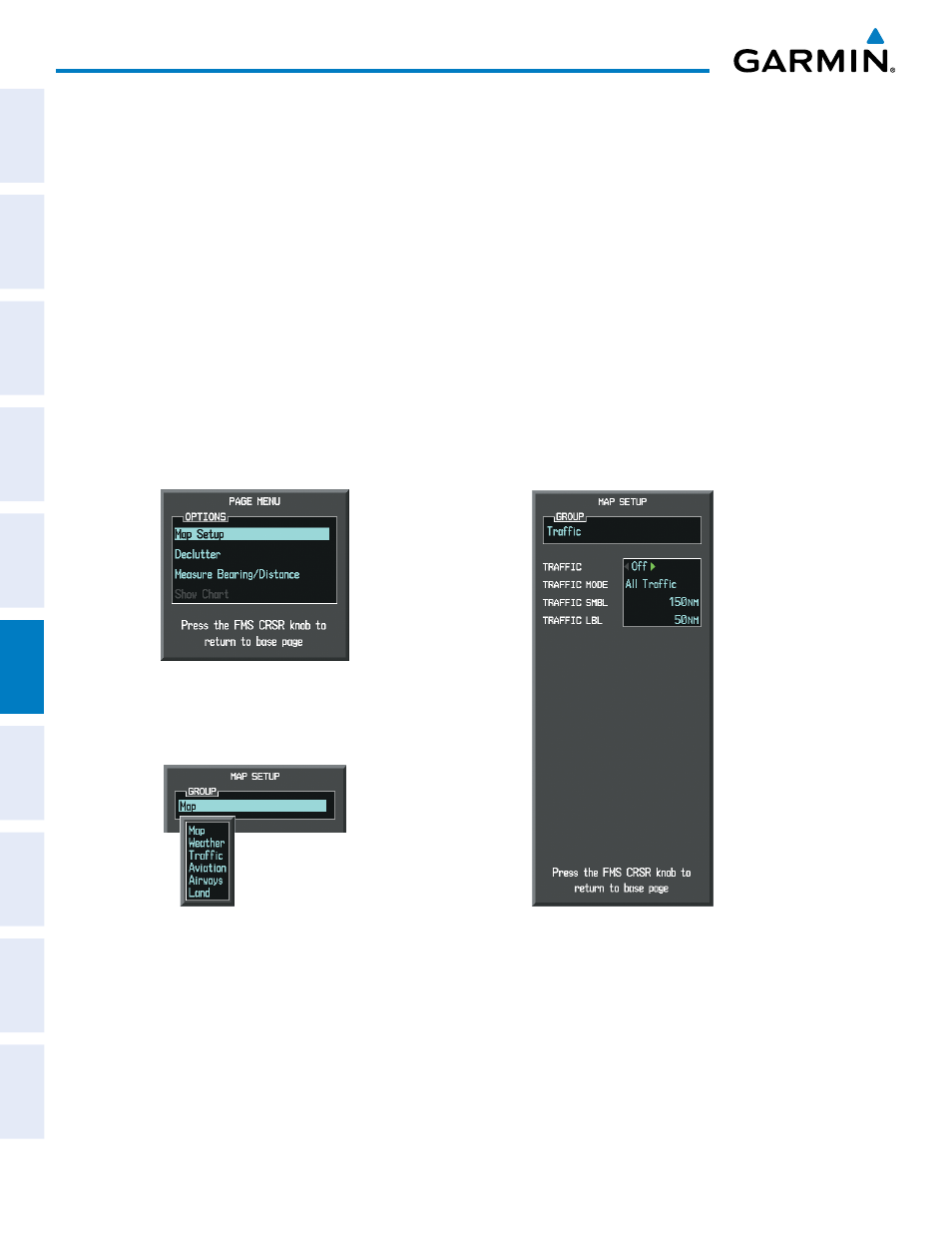

Figure 6-96 Navigation Map Page Setup Menu
Figure 6-95 Navigation Map Page Menu
Figure 6-97 Navigation Map Page Setup Menu, Traffic Group
The Navigation Map Page Setup Menu also controls the display of traffic. The setup menu controls the map
range settings. Traffic data symbols and labels can be decluttered from the display. If a map range larger than
the map range setting is selected, the data is removed from the map. Maps besides the Traffic Map Page use
settings based on those selected for the Navigation Map Page.
