WINDS ALOFT
Winds Aloft data shows the forecast wind speed and direction at the surface and at selected altitudes.
Altitude can be displayed in 3000-foot increments up to 42,000 feet MSL.
Displaying Winds Aloft data:
1) Select the Weather Data Link Page with the FMS Knob.
2) Select the MORE WX Softkey.
3) Select the WIND Softkey.
4) Select the desired altitude level: SFC (surface) up to 42,000 feet. Select the NEXT or PREV Softkey to cycle
through the altitude softkeys. The WIND Softkey label changes to reflect the altitude selected.

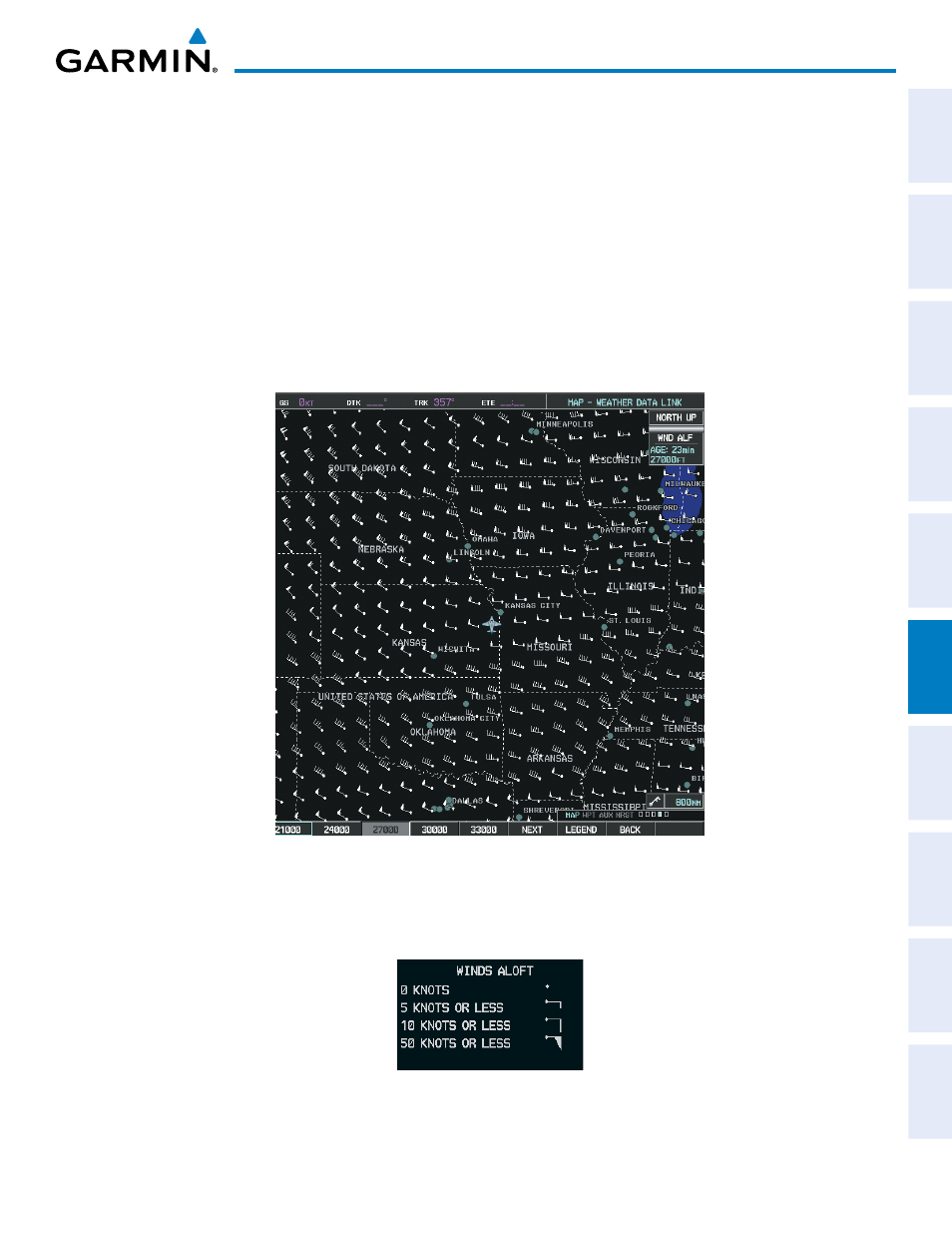

Figure 6-30 Winds Aloft at 27,000 Feet
To display the Winds Aloft legend, select the LEGEND Softkey when Winds Aloft is selected for
display.
Figure 6-31 Winds Aloft Data with Legend
