3.1 ENGINE INDICATION SYSTEM (EIS)
1 Torque
2 Interstage Turbine Temperature
3 Propeller Speed
4 Generator Speed
5 Oil Pressure
6 Oil Temperature
7 CAS Display
8 Cabin Pressure Altitude and Change Rate
9 Differential Pressure
10 Fuel Quantity
11 Fuel Flow
12 Fuel Temperature
13 Alternator and Generator Currents
14 Voltage
15 Vacuum
16 Rudder Trim
17 Flap Position

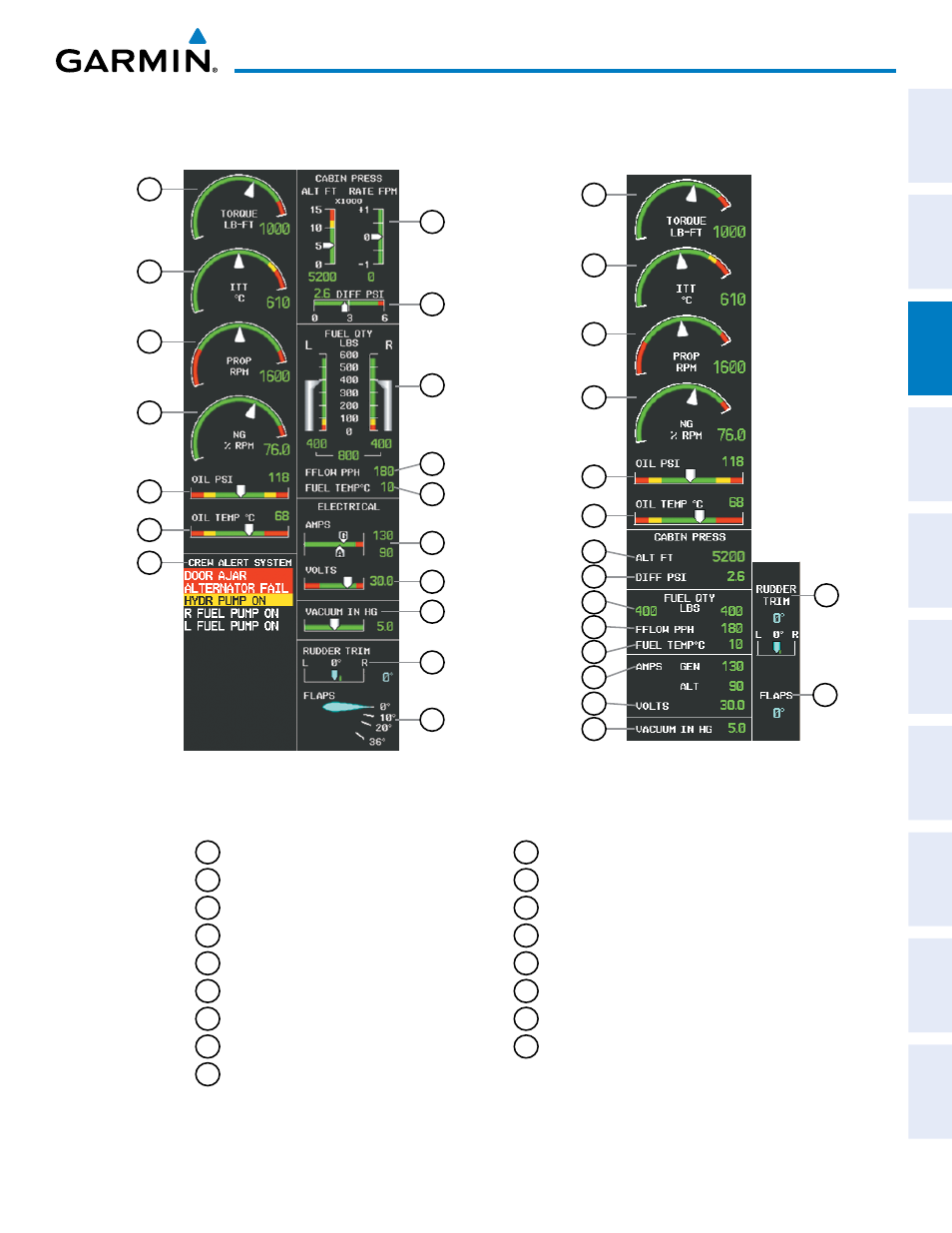

Figure 3-3 EIS Display (Normal Mode)
4
3
2
1
8
9
10
6
5
7
13
14
15
16
17
11
12
Figure 3-4 EIS Display (Reversionary Mode)
16
1
5
6
4
3
2
9
8
10
11
12
14
13
15
17
