Garmin G1000 Pilot’s Guide for the Piper PA-46 Meridian 190-00763-01 Rev. A 360
HAZARD AVOIDANCE
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EICAS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL FEA
TURES
APPENDICES
INDEX

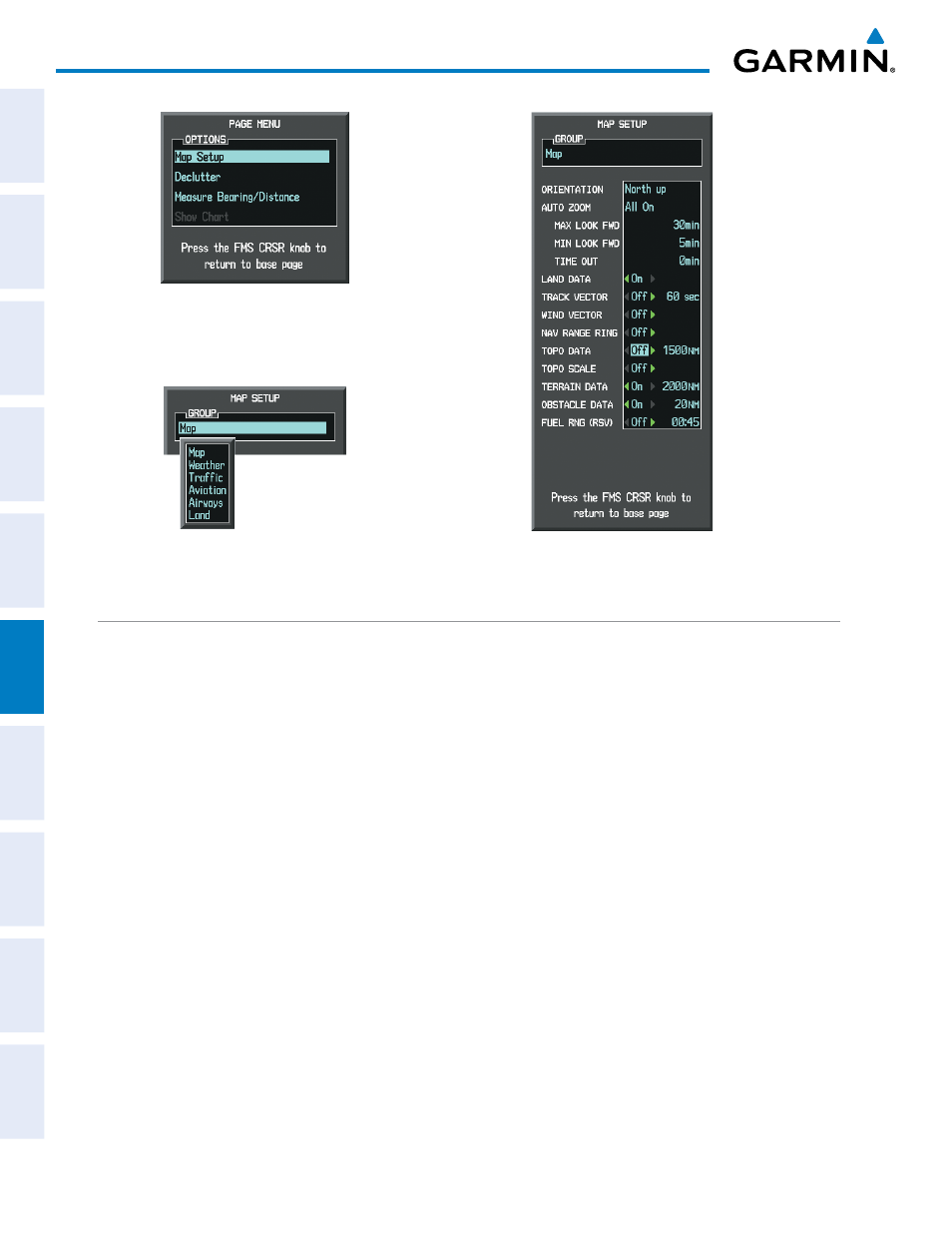

Figure 6-74 Navigation Map Page Setup Menu
Figure 6-73 Navigation Map Page Menu
Figure 6-75 Navigation Map Page Setup Menu, Map Group
TAWS PAGE
The TAWS Page is specialized to show terrain, obstacle, and potential impact point data in relation to the
aircraft’s current altitude, without clutter from the basemap. Aviation data (airports, VORs, and other NAVAIDs)
can be displayed for reference. If an obstacle and the projected flight path of the aircraft intersect, the display
automatically zooms in to the closest potential point of impact on the TAWS Page.
Aircraft orientation on this map is always heading up unless there is no valid heading. Two views are available
relative to the position of the aircraft; the 360° default display and the radar-like ARC (120°) display. Map range
is adjustable with the RANGE Knob from 1 to 200 nm, as indicated by the map range rings or arcs.
Displaying the TAWS Page:
1) Turn the large FMS Knob to select the Map Page Group.
2) Turn the small FMS Knob to select the TAWS Page.
Changing the TAWS Page view:
1) Select the VIEW Softkey.
2) Select the 360 or ARC Softkey to select the desired view.
Or :
1) Press the MENU Key.
2) Select ‘View 120º’ or ‘View 360º’, dependent on current state, and press the ENT Key to change the view.
