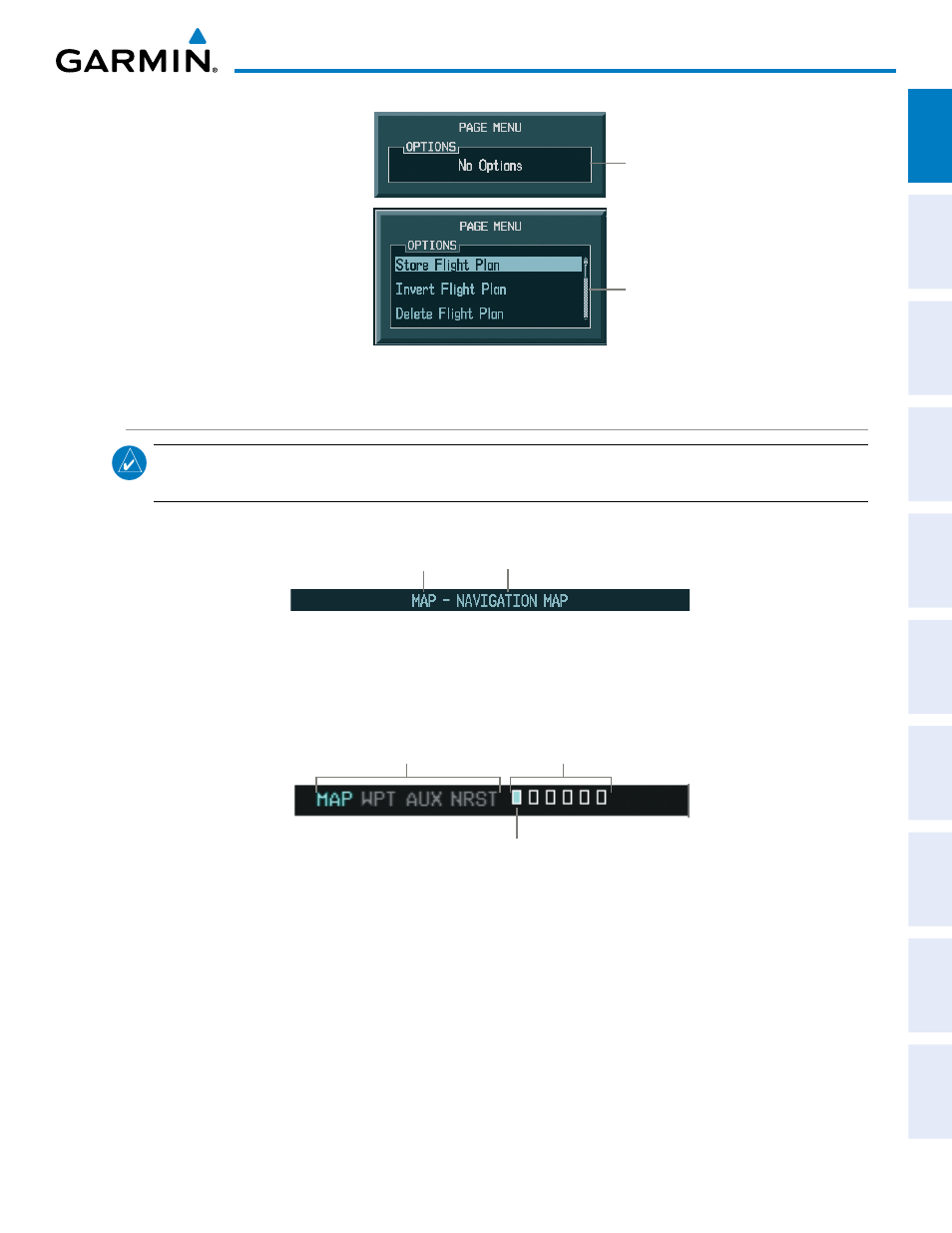

Figure 1-24 Page Menu Examples
No Options with
NRST Window
Displayed on the
PFD
Options
with FPL
Window
Displayed
MFD PAGE GROUPS
NOTE: Refer to the GPS Navigation, Hazard Avoidance, and Additional Features sections for details on
specific pages.
The page group and active page title box are displayed in the upper right of the screen.
Page Group Active Page Title
Figure 1-25 Page Title Box
In the bottom right corner of the screen, the current page group, number of pages available in the group, and
placement of the current page within the group are indicated.
Figure 1-26 Page Group Icons
Page Groups
Selected Page
Pages in Current Group
The MFD displays information in four main page groups; specific pages within each group can vary depending
on the configuration of optional equipment.
Selecting a page using the FMS Knob
1) Turn the large FMS Knob until the desired page group is selected.
2) Turn the small FMS Knob until the desired page is selected.
