Garmin G1000 Pilot’s Guide for the Piper PA-46 Meridian 190-00763-01 Rev. A 316
HAZARD AVOIDANCE
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EICAS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL FEA
TURES
APPENDICES
INDEX
FREEZING LEVEL
Freezing Level data shows the color-coded contour lines for the altitude and location at which the first
isotherm is found. When no data is displayed for a given altitude, the data for that altitude has not been
received, or is out of date and has been removed from the display. New data appears at the next update.

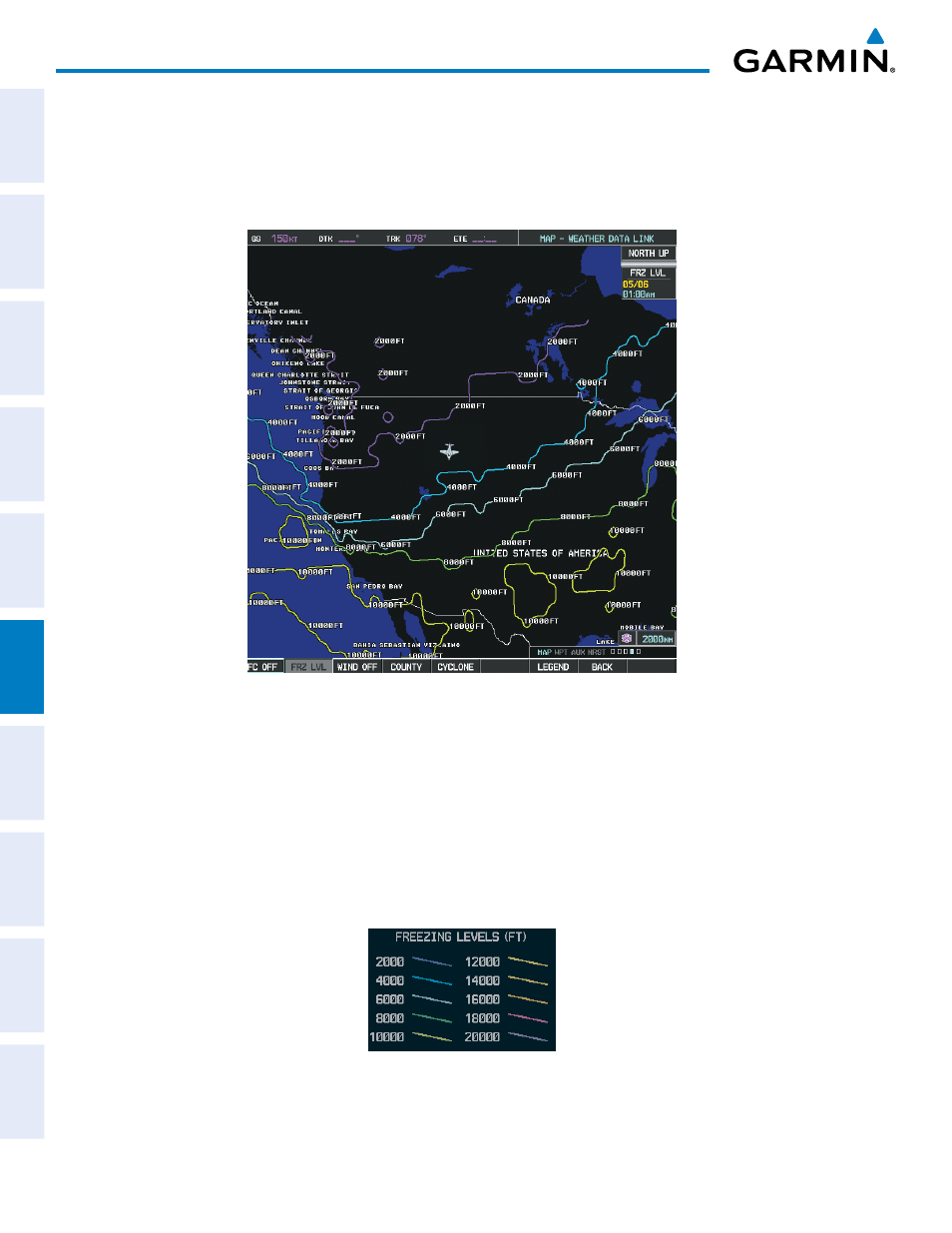

Figure 6-28 Freeze Level Data
Displaying Freezing Level information:
1) Select the Weather Data Link Page with the FMS Knob.
2) Select the MORE WX Softkey.
3) Select the FRZ LVL Softkey.
To display the Freezing Level legend, select the LEGEND Softkey when Freezing Level data is selected to
be displayed.
Figure 6-29 Freezing Level Legend
