190-00763-01 Rev. A Garmin G1000 Pilot’s Guide for the Piper PA-46 Meridian 57
FLIGHT INSTRUMENTS
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EICAS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL
FEA
TURES
APPENDICES
INDEX
ALTIMETER
The Altimeter displays 600 feet of barometric altitude values at a time on a rolling number gauge using a
moving tape. Numeric labels and major tick marks are shown at intervals of 100 feet. Minor tick marks are at
intervals of 20 feet. The current altitude is displayed in the black pointer.
The Selected Altitude is displayed above the Altimeter in the box indicated by a selection bug symbol. A bug
corresponding to this altitude is shown on the tape; if the Selected Altitude exceeds the range shown on the
tape, the bug appears at the corresponding edge of the tape. See the AFCS Section for more information about
Selected Altitude.
Setting the Selected Altitude:
Turn the ALT SEL Knob to set the Selected Altitude in 100-ft increments (if baro-min reference is set, the selected
altitude can be set in 10 feet increments to match the baro-min value) up to the aircraft’s service ceiling.
If set, the Minimum Descent Altitude/Decision Height (MDA/DH) value is also available for the Selected
Altitude.

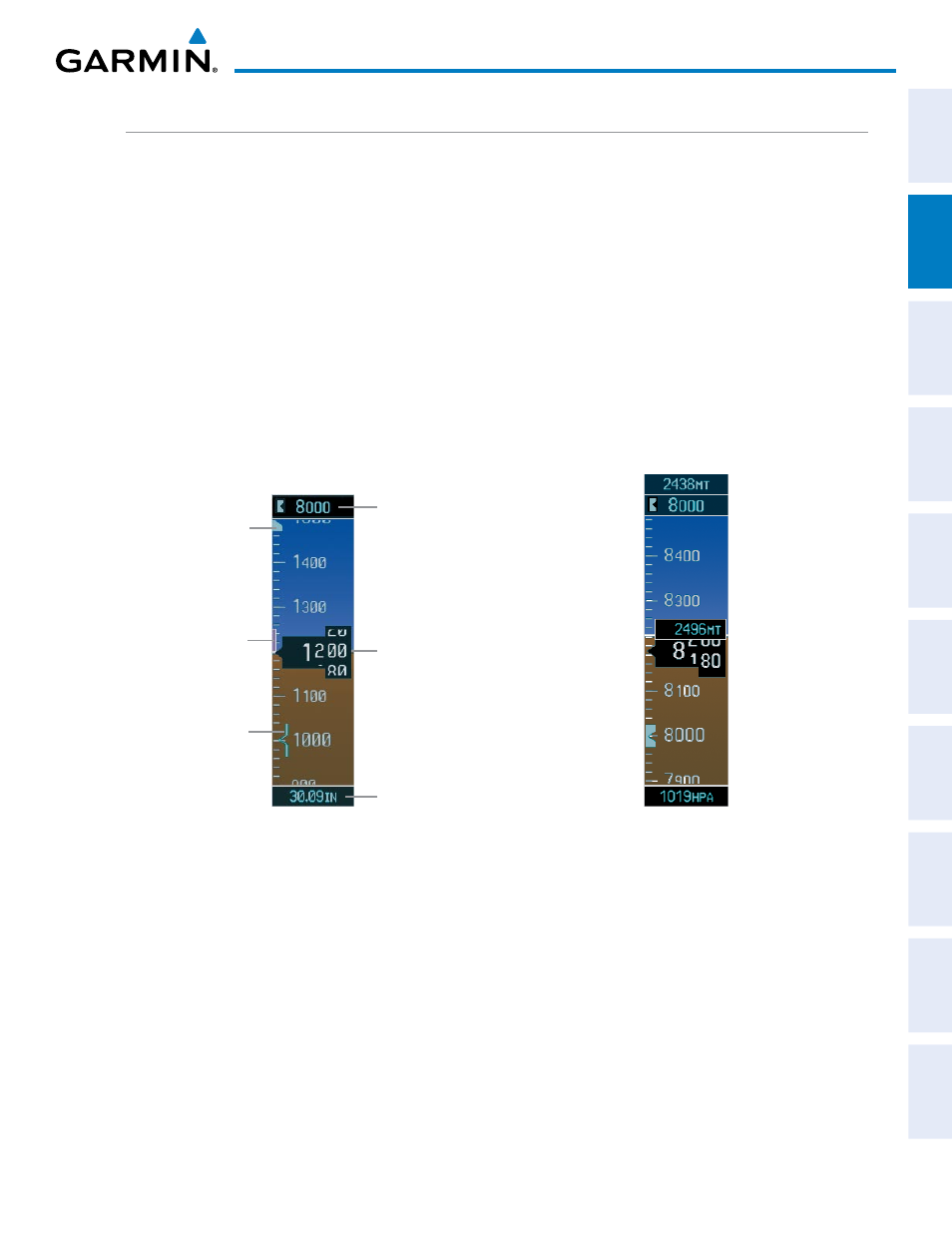

Figure 2-10 Altimeter (Metric Units)
Barometric
Setting
Selected
Altitude Bug
Minimum
Descent
Altitude Bug
Current
Altitude
Selected
Altitude
Figure 2-9 Altimeter
Altitude
Trend
Vector
