190-00763-01 Rev. A Garmin G1000 Pilot’s Guide for the Piper PA-46 Meridian 22
SYSTEM OVERVIEW
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EICAS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL FEA
TURES
APPENDICES
INDEX

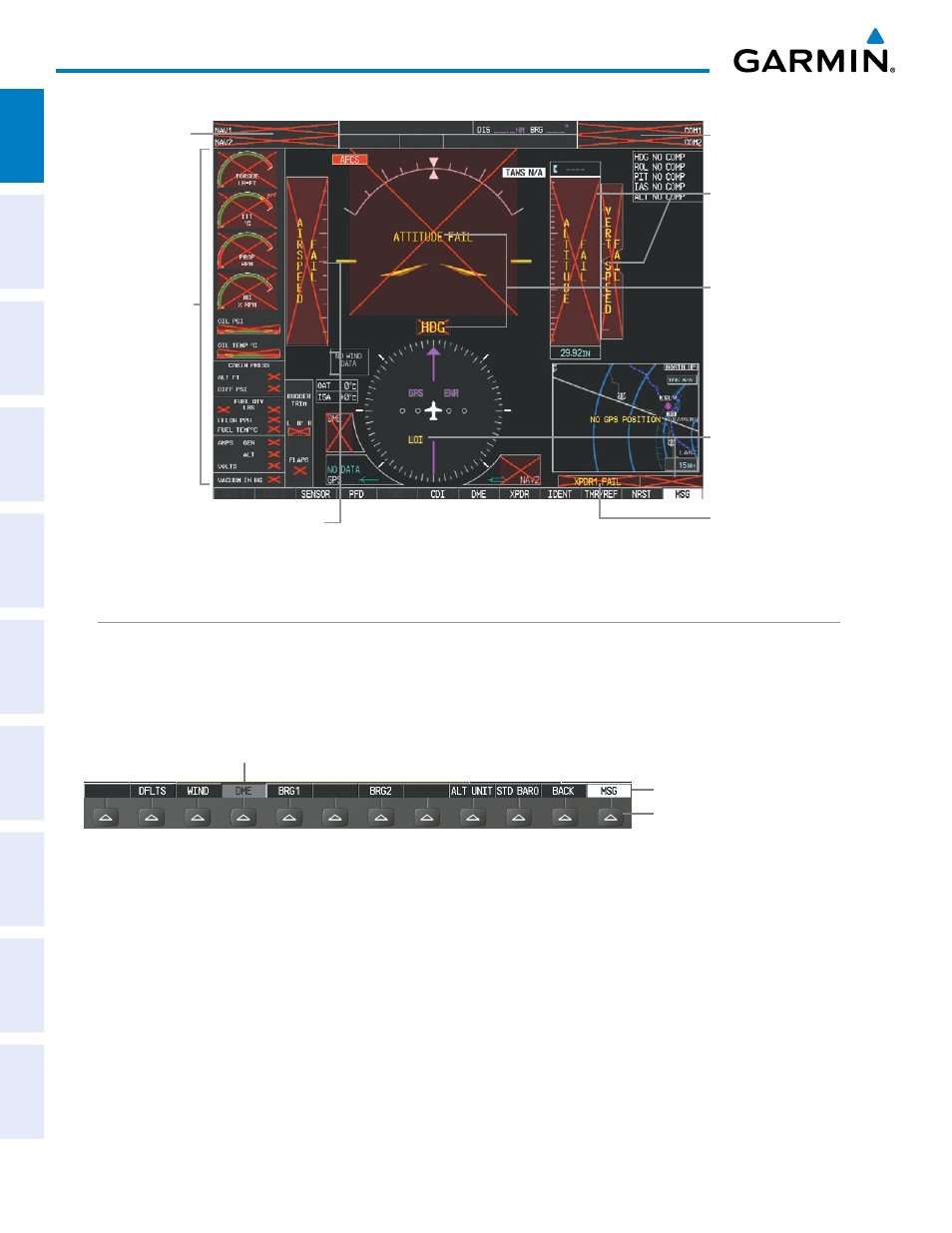

Figure 1-15 G1000 System Failure Annunciations
GDC 74A Air
Data Computer
GTX 33/33D
Transponder
Or
GIA 63W Integrated
Avionics Units
GDC 74A Air
Data Computer
GEA 71 Engine
Airframe Unit
Or
GIA 63W
Integrated Avionics
Unit
GIA 63W
Integrated Avionics
Units
GRS 77 AHRS
Or
GMU 44
Magnetometer
GIA 63W
Integrated Avionics
Units
GIA 63W
Integrated
Avionics Units
SOFTkEY FUNCTION
The softkeys are located along the bottoms of the displays. The softkeys shown depend on the softkey level
or page being displayed. The bezel keys below the softkeys can be used to select the appropriate softkey. When
a softkey is selected, its color changes to black text on gray background and remains this way until it is turned
off, at which time it reverts to white text on black background.
Softkey Names (displayed)
Figure 1-16 Softkeys (Second-Level PFD Configuration)
Bezel-Mounted Softkeys (press)
Softkey On
Another means of selecting softkeys on the MFD is by using the MFD Control Unit:
Selecting a softkey using the MFD Control Unit
1) Move the softkey selection box to the desired softkey using the arrows of the SEL Key.
2) Press the center of the SEL Key to select the desired softkey.
