DISPLAYING TRAFFIC DATA
Traffic information can be displayed on the following maps (when TIS is operating):
• PFD Inset Map
• Navigation Map Page
• Traffic Map Page
• Trip Planning Page
• Nearest Pages
• Active Flight Plan Page
Displaying traffic information (maps other than the Traffic Map Page):
1)
Select the MAP Softkey.
2)
Select the TRAFFIC Softkey to display traffic data.
When traffic is selected on maps other than the Traffic Map Page, an icon is shown to indicate the feature is
enabled for display.

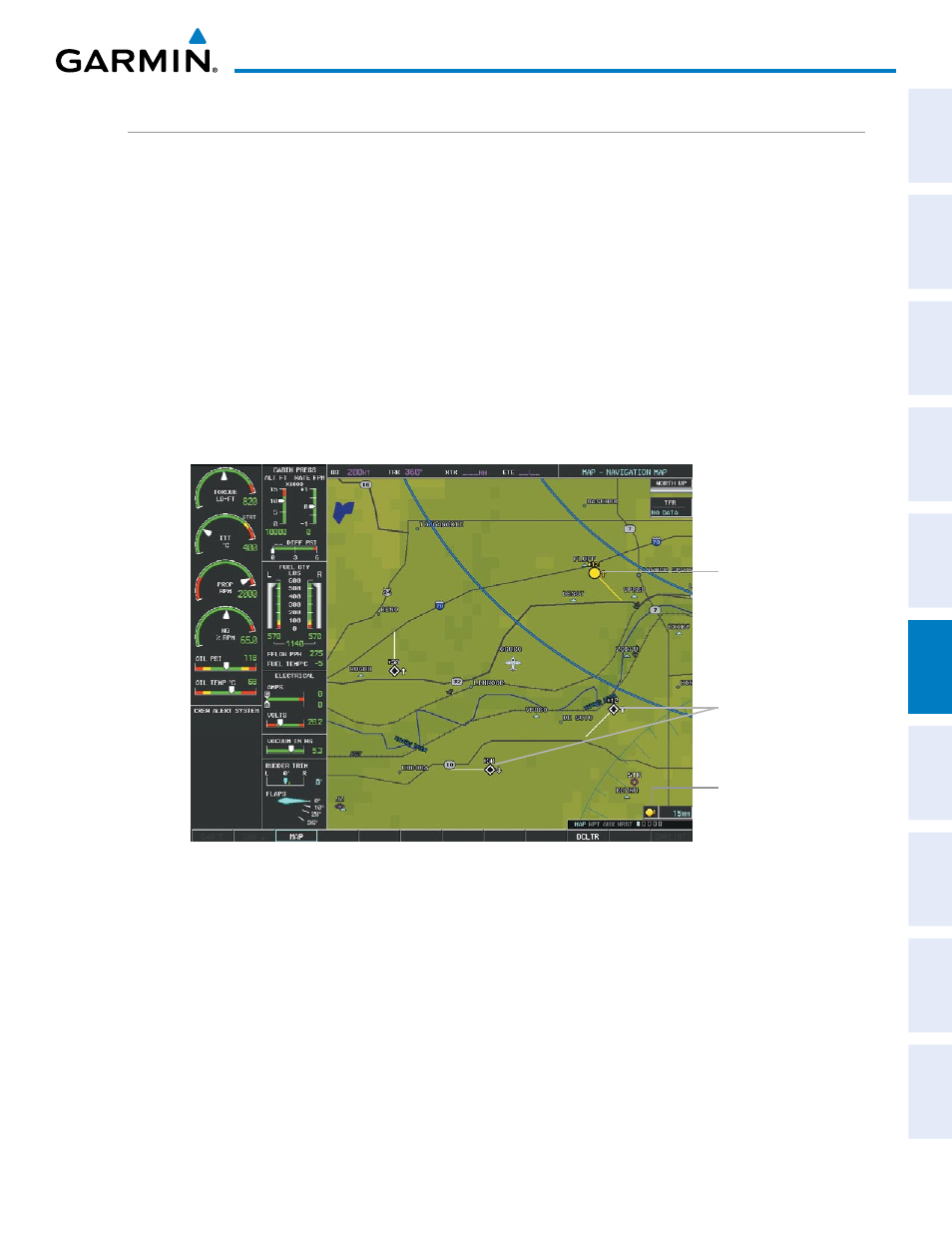

Figure 6-86 TIS Traffic on the Navigation Map Page
Traffic
Advisory
Traffic
Display
Enabled
Non-Threat
Traffic
Displaying traffic information (PFD Inset Map):
1)
Select the INSET Softkey.
2)
Select the TRAFFIC Softkey to select TRFC-1 and display traffic data.
3)
Select the TRAFFIC Softkey again to select TRFC-2 and display the traffic-only inset.
4)
Select the TRAFFIC Softkey to deselect TRFC-2 and remove traffic data.
